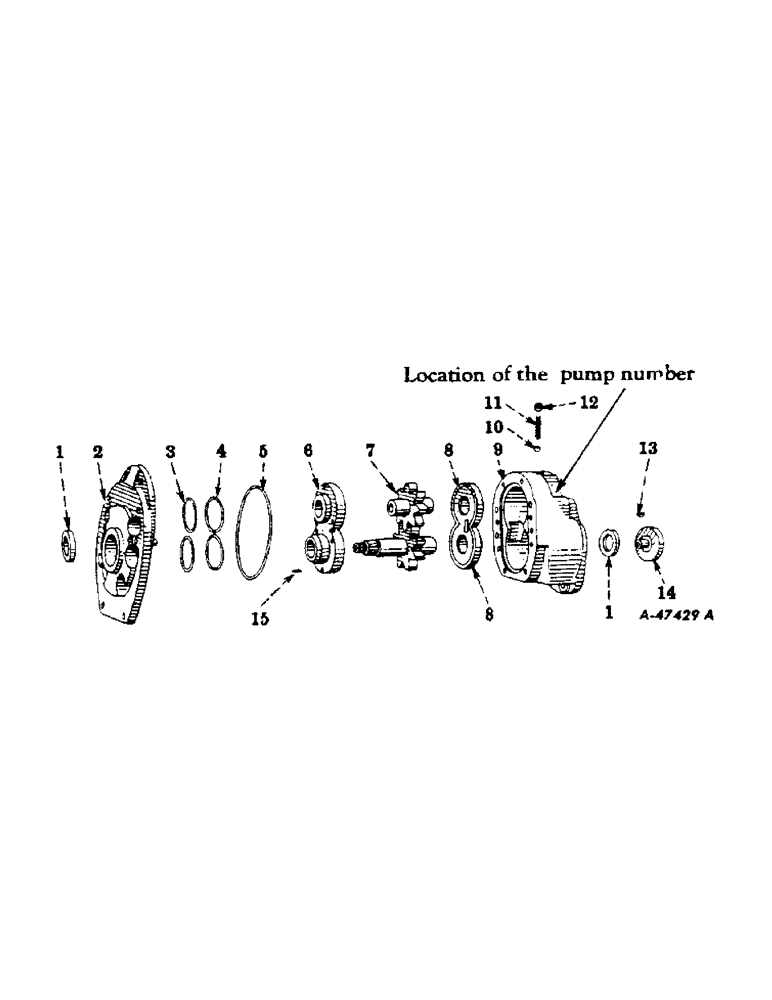

355515R95
PUMP
hydraulic, assembly (Optional with 363779R94) (For carbureted engine tractors) (Column A)
1шт.
352438R94
PUMP, hydraulic, assembly (Optional with 366823R93) (For diesel engine tractors) (Column B)
1шт.
1
356887R91
SEAL
OIL SEAL, pump shaft [A]
2шт.
2
COVER, pump drive end (Not serviced separately - order pump, assembly) [A]
1шт.
2
COVER, pump drive end (Not illustrated) (Not serviced separately - order pump, assembly)
1шт.
3
356886R1
WASHER,36.37mm ID x 42.7mm OD x 0.38mm Thk
back-up, bearing seal ring [A]
2шт.
4
257611R1
O-RING,-221, 70 Duro, 1.421" ID x .139" Thk
RING, seal, bearing [A]
2шт.
5
356884R1
SEAL
RING, seal, pump body [A]
1шт.
6
369953R91
PACKAGE, cover bearing (Note) [A]
1шт.
7
369948R91
PACKAGE, drive and driven gear (Note) [A]
1шт.
7
369947R91
PACKAGE, drive and driven gear (Note)
1шт.
8
369950R91
PACKAGE, body bearing (Note) [A]
1шт.
9
BODY, hydraulic pump (Not serviced separately - order pump, assembly) [A]
1шт.
9
BODY, hydraulic pump (Not illustrated) (Not serviced separately - order pump, assembly)
1шт.
10
16011R1
BALL
CR-STL., 11/32" dia. [A]
1шт.
11
361715R1
SPRING, ball check [A]
1шт.
12
361716R1
PLUG, ball check [A]
1шт.
13
189768
KEY
Woodruff, No. 212 [A]
1шт.
14
358200R1
COUPLING, ignition unit drive [A]
1шт.
100874
ASSEMBLY
SCREW, mach., slt-fl-hd., no. 10-32NF x 1-1/4" [A]
1шт.
114614
WASHER
lock, csk., external tooth, No. 10 [A]
1шт.
15
361717R1
SPRING
bearing cover [A]
10шт.
356888R92
KIT
PACKAGE, service, hydraulic pump seal ring and gasket (Not included with the pump, assembly), Consists Of [A]
1шт.
352439R1
GASKET
1шт.
356884R1
SEAL
RING (NSS)
1шт.
366783R1
GASKET
1шт.
257611R1
O-RING,-221, 70 Duro, 1.421" ID x .139" Thk
RING (NSS)
2шт.
356887R91
SEAL
OIL SEAL
2шт.
353185R1
SEAL
SEAL (NSS)
1шт.
355965R1
O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro
RING
2шт.
356886R1
WASHER,36.37mm ID x 42.7mm OD x 0.38mm Thk
(NSS)
2шт.
