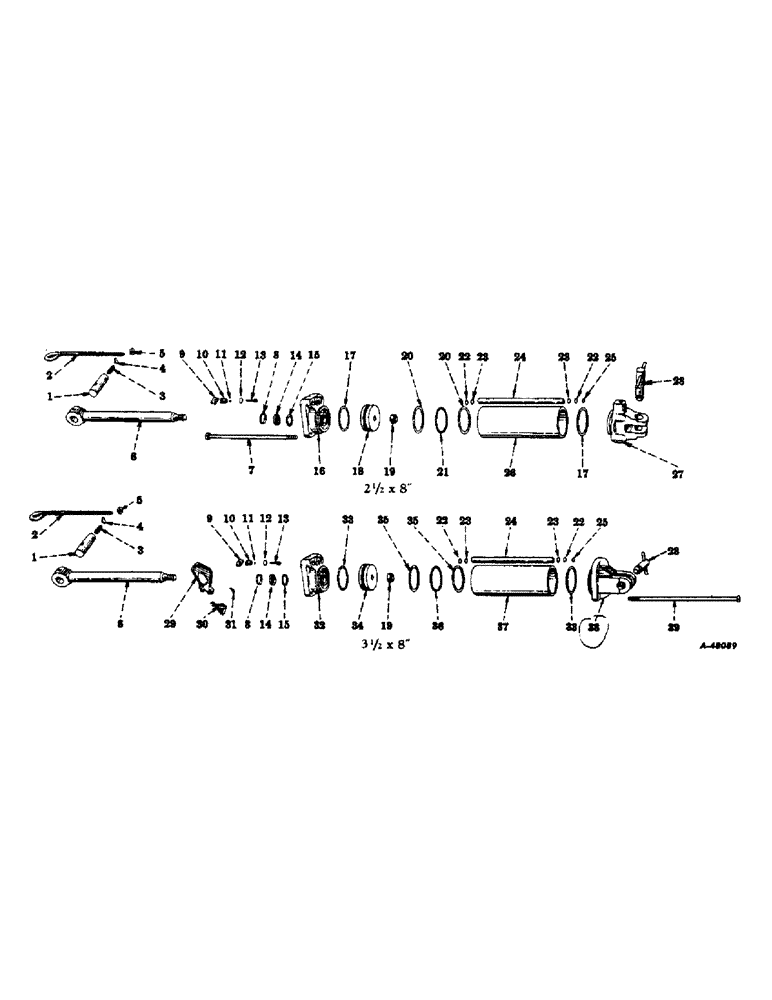

Запчасти Case IH 350 (302) - HYDRAULIC SYSTEM, HYDRAULIC EQUIPMENT, SPECIAL, HYDRAULIC CYLINDERS (07) - HYDRAULIC SYSTEM

366274R91

CYLINDER, hydraulic (2-1/2 x 8") assembly (Column A)

1шт.

366275R91

CYLINDER, hydraulic (3-1/2 x 8") assembly (Column B)

1шт.

1

367617R1

HOUSING, hydraulic cylinder pivot pin [A]

1шт.

1

366280R1

SHAFT

HOUSING, hydraulic cylinder pivot pin [B]

1шт.

366281R1

PIN,3/8" x 2", Coiled

1шт.

137248

PIN, cotter, co-pltd., 5/32 x 2-1/4"

1шт.

2

366284R1

ROD

hydraulic cylinder adjustable stop

1шт.

3

G3792

SPRING

adjustable stop rod

1шт.

4

366282R1

STOP

cylinder adjustable rod

1шт.

5

366283R1

DISC, cylinder adjustable stop rod [A]

1шт.

5

368762R1

DISC, cylinder adjustable stop rod [B]

1шт.

142956

PIN

standard groove, 3/32 x 1"

1шт.

6

366278R1

ROD

piston

1шт.

7

18179R1

BOLT, machine, hex-hd., 7/16-14NC x 12-1/8" [A]

4шт.

8

354049R1

RETAINER

piston rod dust seal

1шт.

9

361009R1

PLATE

limit stop valve retainer

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, cap, hex-hd., 1/4-20NC x 9/16"

2шт.

10

361007R11

RETAINER

limit stop valve, w/seal ring retainer

1шт.

11

360599R1

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

RING, seal, limit stop valve (3/16" ID x 5/16" OD x 1/16")

1шт.

12

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

RING, seal, limit stop valve retainer (5/8" ID x 13/16" OD x 3/32")

1шт.

13

361006R11

VALVE

limit stop, w/seal

1шт.

14

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, dust, piston rod

1шт.

15

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

gland, cylinder piston rod

1шт.

16

367613R11

HEAD, hydraulic cylinder (Piston rod end), w/two plugs, 362355R3 two plugs, 362356R3, and three plugs, 50410DA [A]

1шт.

50410DA

PLUG

pipe, cylinder head (1/8") [A]

3шт.

362355R3

PLUG

pipe, cylinder head (1/4") [A]

2шт.

362356R3

PLUG, pipe, cylinder head (1/2") [A]

2шт.

17

293726R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

RING, seal, hydraulic cylinder (3-1/4" ID x 3-1/2" OD x 1/8") [A]

2шт.

18

361000R1

HEAD

piston [A]

1шт.

19

361011R1

NUT

lock, piston rod

1шт.

20

361013R1

BACK-UP RING,59.08mm ID x 63.75mm OD x 2.39mm Thk

back-up, piston head [A]

2шт.

21

350657R1

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

RING, seal, piston head [A]

1шт.

22

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

RING, seal, cylinder return tube (9/16" ID x 3/4" OD x 3/32")

2шт.

23

354835R1

WASHER

cylinder return tube

2шт.

24

354834R11

SLEEVE

TUBE, cylinder return, w/two washers, 354835R1

1шт.

25

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

26

356817R1

TUBE,2.505" ID, 2.812" OD, 10.26" Length

hydraulic cylinder [A]

1шт.

27

366276R11

HEAD, hydraulic cylinder (Bottom end), w/plug, 50410DA [A]

1шт.

50410DA

PLUG

pipe, cylinder head (1/8") [A]

1шт.

28

366279R11

PIN

hydraulic cylinder pivot, w/handle

1шт.

137303

COTTER PIN,1/4" x 2 1/4"

PIN, SPLIT (COTTER), 1/4" x 2 1/4"

1шт.

29

366790R11

PLATE, stroke limit [B]

1шт.

112526

PIN, cotter, extended prong, 1/16 x 3/8" [B]

1шт.

366793R1

PIN, stroke limit plate support [B]

1шт.

446151

HYD CONNECTOR

WASHER, plain, 13/64" ID x 15/32" OD x no. 16 ga. [B]

1шт.

30

366791R1

SUPPORT, stroke limit plate (On cylinder tie bolt) [B]

1шт.

31

366792R1

SPRING, stroke limit plate (On cylinder tie bolt) [B]

1шт.

32

367615R11

HEAD

hydraulic cylinder (Piston rod end), w/two plugs 362356R3, and two plugs, 50410DA [B]

1шт.

50410DA

PLUG

pipe, cylinder head (1/8") [B]

2шт.

362356R3

PLUG, pipe, cylinder head (1/2") [B]

4шт.

33

354836R1

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

RING, seal, hydraulic cylinder (3-1/4" ID x 3-1/2" OD x 1/8") [B]

2шт.

34

361003R1

HEAD

piston [B]

1шт.

35

361012R1

WASHER

back-up, piston head [B]

2шт.

36

352216R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 5, 75 Duro

RING, seal, piston head (2-1/8" ID x 2-1/2" OD x 3/16") [B]

1шт.

37

354051R1

BARREL,3.5035" ID, .429" OD, 10.26" Length

TUBE, hydraulic cylinder [B]

1шт.

38

366277R1

HEAD, hydraulic cylinder (Bottom end) [B]

4шт.

39

361004R1

BOLT,Hex, 1/2" - 20 x 13 7/16"

tie, hydraulic cylinder [B]

4шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF [B]

4шт.

363137R92

SEAL KIT

PACKAGE, 2-1/2 x 8" hydraulic cylinder seal ring, Consists Of [A]

1шт.

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

RING

1шт.

350657R1

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

RING

1шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

RING

2шт.

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

1шт.

293726R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

RING

2шт.

360599R1

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

RING

1шт.

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL

1шт.

361013R1

BACK-UP RING,59.08mm ID x 63.75mm OD x 2.39mm Thk

2шт.

371218R1

BACK-UP RING

WASHER

2шт.

363138R92

SEAL KIT

PACKAGE, 3-1/2 x 8" hydraulic cylinder seal ring, Consists Of [B]

1шт.

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

RING

1шт.

352216R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 5, 75 Duro

RING

1шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

RING

2шт.

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

1шт.

354836R1

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

RING

2шт.

360599R1

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

RING

1шт.

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL

1шт.

361012R1

WASHER

2шт.

371218R1

BACK-UP RING

WASHER

2шт.
