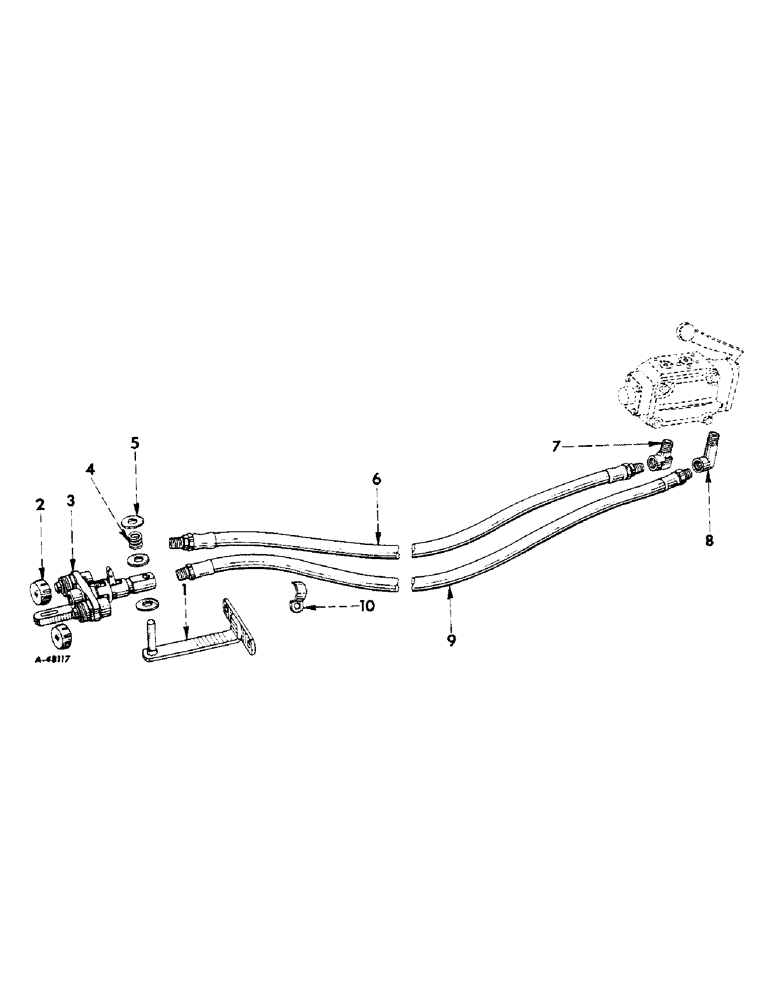

Запчасти Case IH 350 (295) - HYDRAULIC SYSTEM, HYDRAULIC EQUIPMENT, SPECIAL, REMOTE CONTROL ADAPTER (07) - HYDRAULIC SYSTEM

365859R91

ADAPTER

PACKAGE, remote control adapter (For tractors equipped with hydra-touch system and not equipped with fast-hitch) (Attaches to the rear (Single) valve) (This may be ordered as a complete package or be assembled from parts stock) (Column A)

1шт.

365860R92

1шт.

PACKAGE, remote control adapter (For all tractors except Hi-Clear or Hi-Utility models equipped with double or triple valve hydra-touch system and fast-hitch) (Attaches to the front, inner (Second) valve) (This may be ordered as a complete package or be assembled from parts stock) (Column B)

1шт.

369641R91

1шт.

PACKAGE, remote control adapter (For all Hi-Clear or Hi-Utility tractors equipped with double or triple valve hydra-touch system and fast-hitch) (Attaches to the front inner (Second valve) (This may be ordered as a complete package or be assembled from parts stock) (Column C)

1шт.

1

365405R11

BRACKET, break-away coupling, w/pin [A] [B]

1шт.

1

368188R11

BRACKET, break-away coupling, w/pin

1шт.

13-1022

BOLT,Hex, 5/8" - 11 x 1-3/8", Gr 5, Full Thd

SCREW, cap, hex-hd., 5/8-11NC x 1-3/8" [A] [B]

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, [A] [B] 5/8"

2шт.

2

368710R1

CAP

dust, hydraulic self-sealing and break-away coupling (Not included in the packages) (Will work for 355190R1 and 364655R1 [A] [B]

2шт.

3

364311R91

COUPLING, break-away front section, assembly (For components see list of parts under details of "Break-Away And Self-Sealing Couplings")

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

4

353213R2

SPRING

break-away coupling bracket

1шт.

5

PO10535

WASHER

plain, 17/32" ID x 1-1/4" OD x No. 11 ga.

3шт.

6

365399R92

HOSE, valve front port to LH side of the break-away coupling (1/2" ID x 31" long) [A]

1шт.

6

368194R91

HOSE

valve front port to LH side of the break-away coupling (1/2" ID x 42-1/2" long) (Will work for 355565R92) [B] [C]

1шт.

7

364148R1

ELBOW

street, cylinder hose (Used in front port-column A - rear port-column B)

1шт.

8

363628R1

ELBOW, street, cylinder hose (Used in the rear port-column A - front port-column B)

1шт.

9

355584R91

HOSE, valve rear port to RH side of the break-away coupling (1/2" ID x 28" long) [A]

1шт.

9

355543R91

HOSE

valve rear port to RH side of the break-away coupling (1/2" ID x 37-1/2" long) [B] [C]

1шт.

10

368190R1

BRACKET, hose support (For tractors with fast-hitch with traction control) [B]

1шт.

444496

ELBOW, street, self-sealing coupling, 1/2" x 45 degrees (For tractors with fast-hitch with traction control) [B] [C]

1шт.
