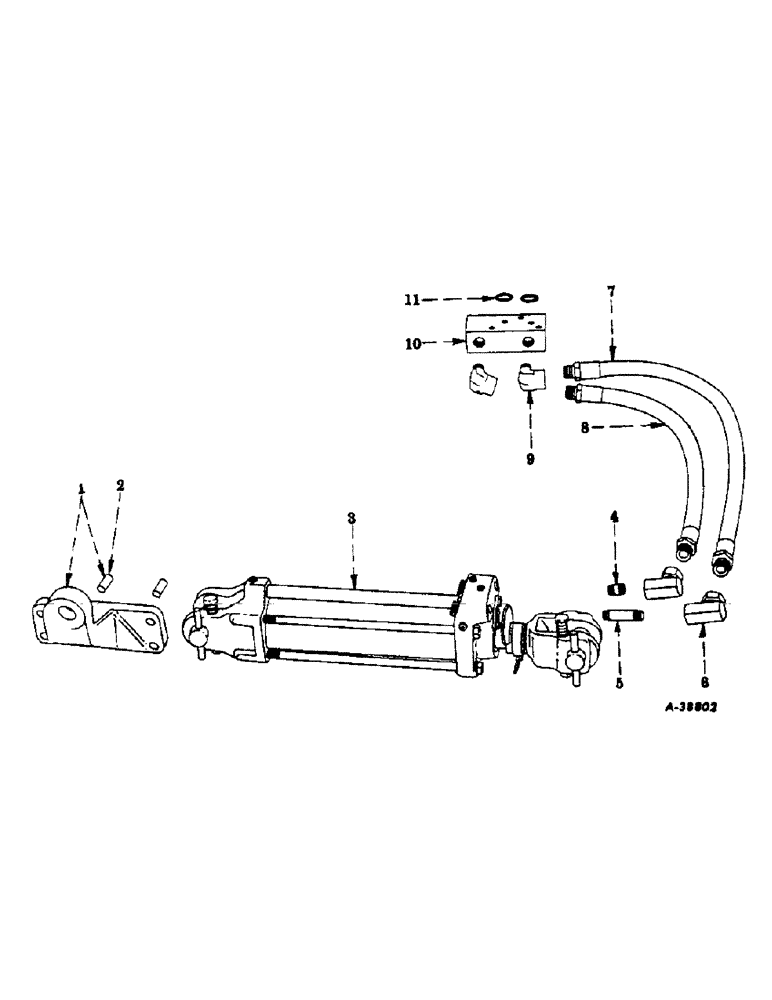

Запчасти Case IH 350 (294) - HYDRAULIC SYSTEM, HYDRAULIC EQUIPMENT, SPECIAL, FAST-HITCH HYDRAULIC EQUIPMENT (07) - HYDRAULIC SYSTEM

PARTS REQUIRED FOR TRACTORS EQUIPPED WITH 2-1/2 X 8" HYDRAULIC CYLINDER (Column A)

1шт.

PARTS REQUIRED FOR TRACTORS EQUIPPED WITH 3-1/2 X 8" HYDRAULIC CYLINDER (Column B)

1шт.

1

361889R21

BRACKET, hydraulic cylinder, w/two pins, 364256R1

1шт.

364257R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, hydraulic cylinder bracket

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

2

364256R1

PIN, dowel, hydraulic cylinder bracket

2шт.

3

360994R91

CYLINDER

hydraulic (2-1/2 x 8"), assembly (For components see list of parts under details of "Hydraulic Cylinders") [A]

1шт.

3

360997R91

CYLINDER, hydraulic (3-1/2 x 8"), assembly (Not illustrated) (For components see list of parts under details of "Hydraulic Cylinders") [B]

1шт.

4

192050

NIPPLE, LUBE,Nipple, 1/4" NPT x 7/8"

NIPPLE, pipe, close, cd-pltd., 1/4 x 7/8" [A]

1шт.

4

192074

NIPPLE, LUBE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE, pipe, close, cd-pltd., 1/2 x 1-1/8" [B]

1шт.

5

192053

NIPPLE, pipe, long, cd-pltd., 1/4 x 2" [A]

1шт.

5

192077

NIPPLE, pipe, long, cd-pltd., 1/2 x 2-1/2" [B]

1шт.

6

362029R91

ADAPTER, cylinder hose attaching, w/nut (For 1/4" pipe) [A]

2шт.

6

364061R91

ADAPTER, cylinder hose attaching, w/nut (For 1/2" pipe) [B]

2шт.

7

363716R91

HOSE, hydraulic cylinder, 1/2" I.D. x 29-1/2"

1шт.

8

363715R91

HOSE

hydraulic cylinder, 1/2" I.D. x 22"

1шт.

9

364148R1

ELBOW

street, cylinder hose (Will work for 444484)

2шт.

10

363452R91

VALVE

check, assembly (For components see list of parts under details of "Check Valve")

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

11

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

RING, seal, check valve (Will work for 352024R2)

2шт.
