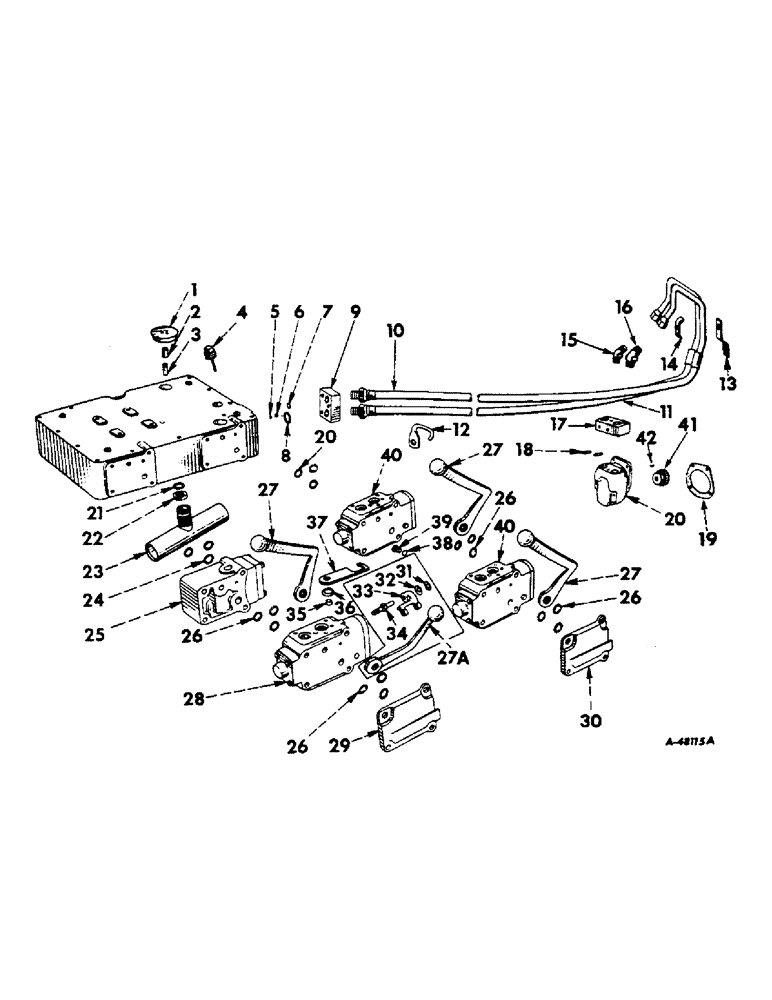

Запчасти Case IH 350 (288) - HYDRAULIC SYSTEM, HYDRA-TOUCH SYSTEM, SPECIAL, HYDRAULIC PUMP, MANIFOLD TUBES, VALVES AND CONTROLS (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
ADDITIONAL PARTS REQUIRED TO CONVERT A SINGLE VALVE SYSTEM TO A DOUBLE VALVE SYSTEM (Conversion lists) (Column D)
1шт.
ADDITIONAL PARTS REQUIRED TO CONVERT A SINGLE VALVE SYSTEM TO A TRIPLE VALVE SYSTEM (Conversion lists) (Column E)
1шт.
ADDITIONAL PARTS REQUIRED TO CONVERT A DOUBLE VALVE SYSTEM TO A TRIPLE VALVE SYSTEM (Conversion lists) (Column F)
1шт.
2
192086
COUPLING,1/8" NPT, Fem
pipe, stl., zn-pltd., 1/8" (For tractors without deluxe cushion seat) [A] [B] [C]
1шт.
3
219601
NIPPLE, pipe, long, stl., cd-pltd., 1/8 x 1-1/8" (For tractors without deluxe cushion seat) [A] [B] [C]
1шт.
5
352219R1
O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro
RING, seal, regulator port plug [A] [B] [C]
1шт.
7
350667R1
O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro
RING, seal, reservoir flange, small [A] [B] [C]
1шт.
8
350818R1
O-RING,0.984" ID x 0.139" Width
RING, seal, reservoir flange, large [A] [B] [C]
1шт.
138246
HEX SOC SCREW,3/8" - 16 x 2"
cap, hex-socket-hd., 3/8-16NC x 2" [A] [B] [C]
3шт.
12
365911R1
SUPPORT, rear, hose (On engine rear support attaching screw) [A] [B] [C]
1шт.
BOLT,Hex, 5/8" - 11 x 1-5/8", Gr 5, Full Thd
SCREW, cap, hex-hd., 5/8-11NC x 1-5/8" [A] [B] [C]
1шт.
13
366964R1
BRACKET, hydraulic pump, pressure and suction tubes support (See Note A) [A] [B] [C]
1шт.
14
365442R1
CLAMP, hydraulic pump, pressure and suction tubes support (See Note A) [A] [B] [C]
1шт.
179803
BOLT,1/4" - 20 x 1 3/4", Gr 5
(See Note A) [A] [B] [C] Hex, 1/4"-20 x 1 3/4", G5
1шт.
95-11028
WASHER,1/4"
plain, 9/32" ID x 5/8" OD x No. 16 ga. (See Note A) [A] [B] [C]
2шт.
15
9402828
ELBOW,45 Degree, 1 1/16-12" 37 Degree x 3/4"-14, NPTF
flared tube, 45 degrees (For 3/4" OD tubing) (Pump flange) [A] [B] [C]
1шт.
16
9402830
ELBOW,45 Degree, 1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF
flared tube, 45 degrees (For 1" OD tubing) (Pump flange) [A] [B] [C]
1шт.
18
355965R1
O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro
RING, seal, hydraulic pump flange [A] [B] [C]
2шт.
20
352438R94
PUMP, hydraulic, assembly (For components, see list of parts under details of "Hydraulic Pump" (Optional with 366823R92) [A] [B] [C]
1шт.
20
366823R93
PUMP, hydraulic, assembly (For components see list of parts under details of "Hydraulic Pump") (Optional with 352438R93) [A] [B] [C]
1шт.
179840
BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5
SCREW, cap, hex-hd., 3/8-16NC x 1-1/8" [A] [B] [C]
2шт.
186282
BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5
SCREW, cap, hex-hd., 3/8-16NC x 3-1/4" [A] [B] [C]
2шт.
21
254954R1
O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro
RING, seal, oil strainer tube [A] [B] [C]
1шт.
24
350667R1
O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro
RING, seal, regulator and safety valve [A] [B] [C]
3шт.
25
360621R93
VALVE
regulator and safety, assembly (For components see list of parts under details of "Regulator And Safety Valve") (For tractors w/o power steering) [A] [B] [C]
1шт.
25
364841R95
VALVE, regulator, safety and flow control assembly (Not illustrated) (For components see list of parts under details of "Regulator, Safety And Flow Control Valve") (For tractors equipped with power steering) [A] [B] [C]
1шт.
26
350667R1
O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro
RING, seal, hydra-touch control valve [A] [D]
6шт.
26
350667R1
O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro
RING, seal, hydra-touch control valve [B]
12шт.
26
350667R1
O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro
RING, seal, hydra-touch control valve [15]
15шт.
26
350667R1
O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro
RING, seal, hydra-touch control valve [E]
9шт.
26
350667R1
O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro
RING, seal, hydra-touch control valve [F]
3шт.
28
365985R91
VALVE, hydra-touch control, assembly (For components see list of parts under details of "Hydra-Touch Control valve") [A] [B] [C]
1шт.
29
361457R1
COVER, control, valve (For tractors w/o power steering) [A] [B] [C]
1шт.
29
364878R1
COVER, control valve (Not illustrated) (For tractors equipped with power steering) [A] [B] [C]
1шт.
30
361456R1
COVER, control valve (For tractors w/o power steering) [B] [C] [D] [E]
1шт.
30
364878R1
COVER, control valve (Not illustrated) (For tractors equipped with power steering) [A] [B] [C]
1шт.
31
95-11034
WASHER,1/4"
plain, 11/32" ID x 11/16" OD x no. 16 ga. (See Note B) [A] [B] [C]
1шт.
32
362907R1
SPRING, tension control valve lever lock (See Note B) [A] [B] [C]
1шт.
33
364533R1
LOCK, control valve lever (Die cast) (See Note B) (Order package, 366620R91) [A] [B] [C]
1шт.
34
364534R1
PIN, control valve lever lock, w/integral stud (See Note B) (Order package, 366620R91) [A] [B] [C]
1шт.
36
366613R1
SPRING
hydra-touch control valve lever lock (See Note C) [A] [B] [C]
1шт.
Q1504
WASHER
plain, 13/32" ID x 7/8" OD x No. 16 ga. (Upper washer) (See Note C) [A] [B] [C]
1шт.
Q5035
WASHER
plain, 17/32" ID x 1" OD x No. 16 ga. (Lower washer) (See Note C) [A] [B] [C]
1шт.
38
355967R1
O-RING,0.364" ID x 0.003" Width
RING, seal, left circuit block plug (For tractors equipped with power steering) [B] [C] [D] [E]
1шт.
39
364880R1
PLUG
left circuit block (For tractors equipped with power steering) [B] [C] [D] [E]
1шт.
40
365981R91
VALVE, hydra-touch control, assembly (Will work for 360590R93) (For components see list of parts under details of "Hydra-Touch Control Valve") [B] [D] [F]
1шт.
40
365981R91
VALVE, hydra-touch control, assembly (Will work for 360590R93) (For components see list of parts under details of "Hydra-Touch Control Valve") [C] [E]
2шт.
362356R3
PLUG, hydra-touch control valve (Optional with 365240R1) [B] [D] [F]
4шт.
365240R1
PLUG, hydra-touch control valve (Optional with 362356R3) [B] [D] [F]
4шт.
366620R91
PACKAGE, service, hydra-touch valve lever lock (See Note B) [A] [B] [C], Consists Of
1шт.
