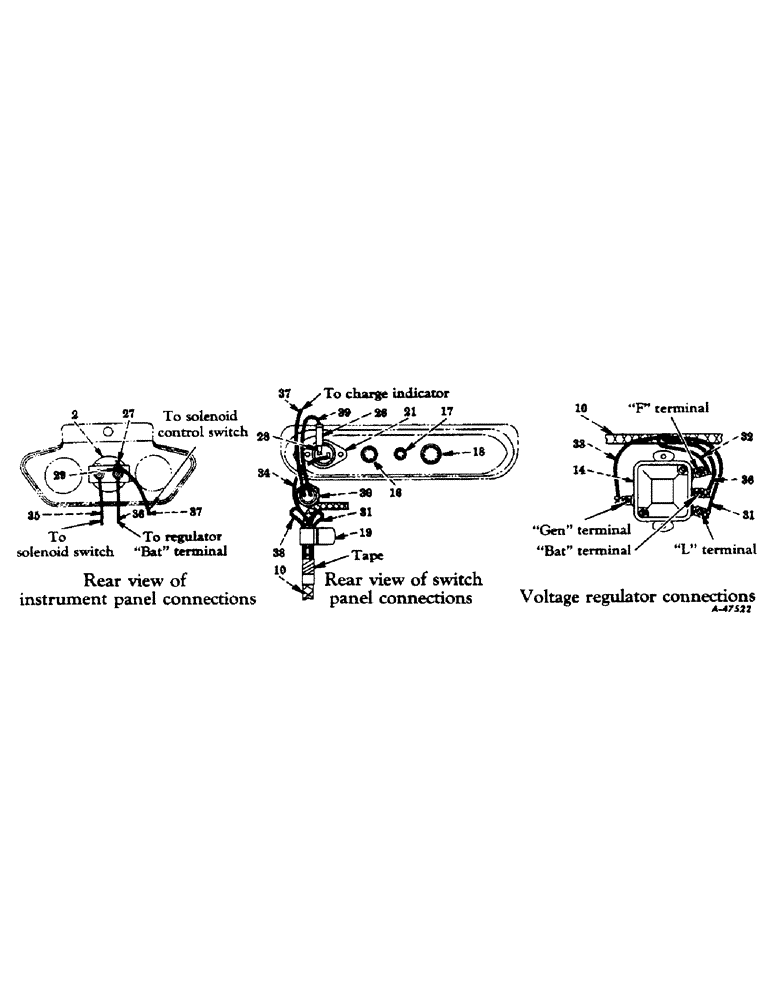

Запчасти Case IH 350 (161) - ELECTRICAL SYSTEM, DIESEL ENGINE, STARTING SYSTEM, 12 VOLT (06) - ELECTRICAL SYSTEMS

2

360053R91

INDICATOR

charge, w/clamp, six nuts, and six washers

1шт.

3

366770R91

MOTOR, cranking (12 volt), assembly (For components see list of parts under details of "Cranking Motor")

1шт.

280136

NUT,3/8"-16, G8

Machine screw, (On solenoid switch terminal) 3/8"-16, G8

1шт.

NLS

NO LONGER SERVICED

(2 used on tractors equipped with intake manifold air heater) Hex, 3/8"-16 x 1", G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

110730

LOCK WASHER

WASHER, lock, light, 3/8" (On solenoid switch terminal)

1шт.

142186H

WASHER

plain, 3/8" ID x 11/16" OD x No. 22 ga. (On solenoid switch terminal)

1шт.

4

62511D

CLIP, battery to solenoid switch cable (On clutch housing top cover screw)

1шт.

5

362126R1

CLIP

cable harness

1шт.

181356

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

62511D

CLIP, battery to solenoid switch cable (On rear frame cover attaching screw)

1шт.

7

366842R91

CABLE, battery to solenoid switch, w/bolt, 356062R91 and cover, 364910R1

1шт.

356062R91

BOLT

terminal, w/nut, sleeve and washer

1шт.

8

368537R91

BATTERY, (Auto-lite, 12H-70-3) (12 volt)

1шт.

9

358987R92

CABLE

STRAP, battery to ground, w/bolt, 356062R91 (On battery box front LH attaching screw)

1шт.

356062R91

BOLT

terminal, w/nut, sleeve and washer

1шт.

10

366840R91

HARNESS, cable, w/seven cables

1шт.

11

366769R91

GENERATOR (12 volt), assembly (For components see list of parts under details of "Generator")

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

12

362123R1

CLIP

cable harness (On fuel tank support front RH attaching screw)

1шт.

13

363662R1

CLIP

cable harness

1шт.

179857

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 7/8"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

14

360899R91

REGULATOR

voltage (12 volt) assembly (For components see list of parts under details of "Voltage Regulator")

1шт.

181306

BOLT

SCREW, cap, hex-hd., 1/4-28NF x 5/16"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

CLIP, cable harness (Welded to instrument panel housing)

1шт.

16

432600

PLUG, button, cr-pltd., 23/32" (Used to plug hold for lighting switch on tractors without lighting system)

1шт.

17

432466

BEVEL PINION

PLUG, button, cr-pltd., 17/32" (Used to plug hole for fuse housing on tractors without lighting system)

1шт.

18

432281

HOLE PLUG BUTTON,29/32"

PLUG, button, cr-pltd., (Used to plug hole for cigarette lighter on tractors without cigarette lighter) 29/32"

1шт.

19

CLIP, cable harness (Welded to instrument panel housing)

1шт.

20

CLIP, cable harness (Welded to instrument panel housing)

1шт.

21

SWITCH, push button starting (Illustrated with "Engine Controls")

1шт.

22

362123R1

CLIP

cable harness (On thermostat housing attaching screw)

1шт.

23

362123R1

CLIP

cable harness (On fuel filter attaching screw)

1шт.

24

62511D

CLIP, battery to solenoid switch cable (On hydraulic reservoir cover attaching screw)

1шт.

95-11041

WASHER,3/8"

(13/32" ID x 11/16" OD x .065") 3/8"

1шт.

25

62511D

CLIP, battery to solenoid switch cable (On RH side of battery box)

1шт.

181354

BOLT

SCREW, cap, hex-hd., 3/8-24NF x 1/2"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

95-11041

WASHER,3/8"

(13/32" ID x 11/16" OD x .065") 3/8"

1шт.

26

366456R1

BODY, connector

1шт.

27

366456R1

BODY, connector

1шт.

28

365501R1

TERMINAL CONNECTOR

TERMINAL, line connector

1шт.

29

365501R1

TERMINAL CONNECTOR

TERMINAL, line connector

1шт.

30

366313R91

SWITCH

lock, w/two cables and two keys

1шт.

365502R1

NUT

ignition lock switch mounting

1шт.

31

CABLE, voltage regulator "L" terminal to fuse housing cable (Light gree) (Order harness - ref. no. 10) NOTE - On tractors without lighting systems, turn back the instrument panel end terminal of the cable and securely tape it to the harness.

1шт.

32

CABLE, voltage regulator "F" terminal to generator "F" terminal (Yellow) (Order harness - ref. no. 10)

1шт.

33

CABLE, voltage regulator, "Gen." terminal to generator "A" terminal (Light blue) (Order harness - ref. no. 10)

1шт.

34

CABLE, push button starting switch to solenoid switch "S" terminal (Orange) (Order harness - ref. no. 10)

1шт.

35

CABLE, charge indicator to solenoid switch (Red) (Order harness - ref. no. 10)

1шт.

36

CABLE, charge indicator to regulator "Bat" terminal (Gray) (Order harness - ref. no. 10)

1шт.

37

CABLE, solenoid control switch to charge indicator (Black) (Order switch - ref. no. 30)

1шт.

38

CABLE, lighting switch to junction block (Violet) (Order harness - ref. no. 10) NOTE - On tractors without lighting system, turn back both terminals of the cable and securely tape then to the harness.

1шт.

39

CABLE, solenoid control switch to push button starting switch (Black) (Order switch - ref. no. 30)

1шт.

40

367380R1

BRACE, generator (On water pump body stud)

1шт.

102635

NUT,3/8"-16, G5

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

95-11034

WASHER,1/4"

plain, 11/32" ID x 11/16" OD x No. 16 ga.

1шт.

41

364910R1

BOOT

COVER, solenoid terminal

1шт.

42

366771R1

PULLEY, generator

1шт.

NUT, drive end shaft (Delco-Remy 806915)

1шт.

WASHER, lock, drive end shaft nut (Delco-Remy 804000)

1шт.

43

367425R1

BRACKET, generator mounting

1шт.

102635

NUT,3/8"-16, G5

2шт.

62304R1

STUD, generator bracket

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
