Запчасти Case IH 350 (134) - ELECTRICAL SYSTEM, CARBURETED ENGINE, LIGHTING SYSTEM, SPECIAL, FOR INTL 300 SERIES UTILITY TRACTOR (06) - ELECTRICAL SYSTEMS

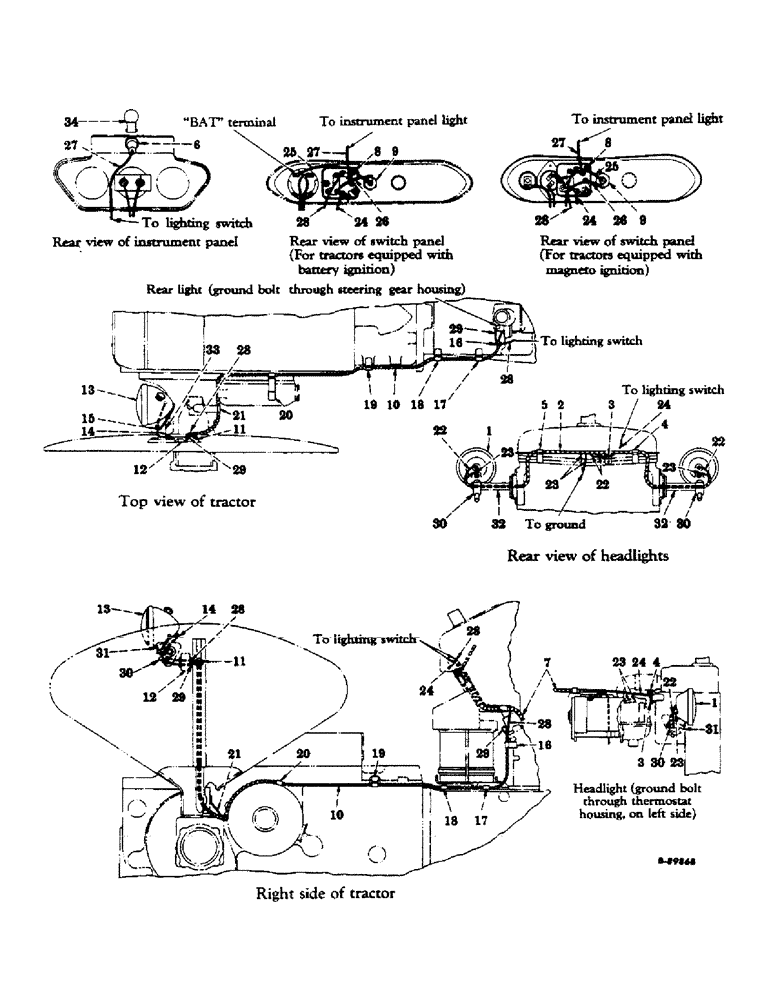

Схема запчастей Case IH 350 - (134) - ELECTRICAL SYSTEM, CARBURETED ENGINE, LIGHTING SYSTEM, SPECIAL, FOR INTL 300 SERIES UTILITY TRACTOR (06) - ELECTRICAL SYSTEMS
6
24
17
30
30
17
22
2
23
23
21
20
32
12
10
10
23
18
6
31
16
21
26
25
9
1
30
28
11
24
33
13
4
24
27
1
29
20
27
3
12
13
26
25
29
9
4
34
19
7
26
22
31
19
28
5
18
14
24
23
11
24
23
14
29
26
15
22
27
28
32
30
8
26
22
28
3
16
29

Артикул

Название

Примечание

Количество

363837R91

LIGHT ASSY.

ATTACHMENT, lighting (6 volt) (For tractors equipped with distillate or gasoline burning engines) (Column A)

1шт.

365839R91

LIGHT ASSY.

ATTACHMENT, lighting (12 volt) (For tractors equipped with liquefied petroleum gas burning engines) (Column B)

1шт.

1

357884R94

LAMP

HEADLIGHT, sealed beam (6 volt) assembly (For components see list of parts under details of "Headlight") [A]

2шт.

1

357885R94

LAMP

HEADLIGHT, sealed beam (12 volt) assembly (For components see list of parts under details of "Headlight") [B]

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

363823R91

HARNESS, headlight cable, w/four cables

1шт.

3

42915D

BLOCK

headlight harness junction, w/screw

1шт.

100765

PIN

machine, slotted-rd-hd., No. 10-32NF x 5/8"

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

4

362121R1

CLIP

headlight cable harness

1шт.

181309

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

SCREW, cap, hex-hd., 1/4-28NF x 1/2"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

5

362121R1

CLIP

headlight cable harness

1шт.

181309

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

SCREW, cap, hex-hd., 1/4-28NF x 1/2"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

6

363838R91

CABLE

SOCKET, instrument panel light, w/cable

1шт.

7

HARNESS, cable

1шт.

Not included in lighting attachment order cable harness listed in "Ignition And Starting System".

1шт.

8

363130R91

SWITCH

lighting (6 volt) assembly (For components see list of parts under details of "Lighting Switch") [A]

1шт.

8

363131R91

SWITCH

lighting (12 volt), assembly (For componets see list parts under details of "Lighting Switch") [B]

1шт.

9

362669R91

HOUSING

fuse, w/two cables, knob, 356445R91, nut and washer (Illustrated with "Engine Controls")

1шт.

10

363839R91

HARNESS, rear light and break-away connector socket, w/two cables

1шт.

11

363846R1

GROMMET

rear light and break-away connector socket harness

1шт.

12

363845R91

BLOCK, rear light and break-away connector socket junction, w/four screws

1шт.

110633

NUT,#10-24

2шт.

110502

SCREW,Slotted Rd Hd, #10-24 x 3/4"

machine, slotted-rd-hd., No. 10-24NC x 3/4"

2шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

13

361985R93

LAMP

LIGHT, combination rear light and tail, (6 volt) assembly (For components see list of parts under details of "Combination Rear Light And Tail Light") [A]

1шт.

13

361983R93

LIGHT, combination rear light and tail (12 volt), assembly (For components see list of parts under details of "Combination Rear Light And Tail Light") [B]

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

14

363841R91

CABLE, combination rear light and tail light to junction block (Black)

1шт.

15

363840R91

CABLE, combination rear light and tail light to junction block ground terminal (Pink)

1шт.

16

56275D

CLIP, rear light and break-away connector socket harness (On steering gear housing upper rear screw)

1шт.

17

355097R1

CLIP, rear light and break-away connector socket harness (On clutch housing top cover mounting screw, R.H. side, third from rear)

1шт.

18

355097R1

CLIP, rear light and break-away connector socket harness (On clutch housing top cover mounting screw, R.H. side rear)

1шт.

19

363842R1

CLIP, rear light and break-away connector harness (On brake lock operating rod bracket screw)

1шт.

20

363844R1

CLIP, rear light and break-away connector socket harness

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

21

363843R1

CLIP, rear light and break-away connector socket harness (On independent power take-off operating handle quadrant screw for tractors equipped with independent power take-off)

1шт.

22

CABLE, headlight to junction block (Black) (Order 363823R91)

2шт.

23

CABLE, headlight to ground screw (Pink) (Order 362823R91)

2шт.

24

CABLE, lighting switch to headlight harness junction block (Violet)

1шт.

Not included in lighting attachment order cable harness listed in "Ignition And Starting System".

1шт.

25

CABLE, fuse housing to starting and ignition lock switch (For tractors equipped with battery ignition) (Order 362669R91)

1шт.

25

CABLE, fuse housing to push button starting switch (For tractors equipped with magneto ignition) (Order 362669R91)

1шт.

26

CABLE, fuse housing to lighting switch (Order 362669R91)

1шт.

27

CABLE, instrument panel light socket to lighting switch (Order 363838R91)

1шт.

28

CABLE, combination rear light and break-away connector socket junction block to lighting switch (Black) (Order 363839R91)

1шт.

29

CABLE, combination rear light and break-away connector socket junction block ground terminal to ground (Pink) (Order 363839R91)

1шт.

30

350920R1

CLAMP

headlight or combination rear light and tail light

3шт.

31

49069D

SPACER

headlight or combination rear light and tail light

3шт.

32

361987R11

POST, headlight, w/bracket

2шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 3/4"

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

33

66724DB

POST, combination rear light and tail light

1шт.

103026

NUT,3/8"-24, G5

3шт.

181359

SCREW, cap, hex-hd., 3/8-24NF x 11/16"

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

34

125588

BULB,#55, Type C-2R, 6V

LAMP, No. 55, 6-volt [A]

1шт.

34

A14553

BULB

LAMP, No. 57 [B]

1шт.

106653

FUSE

type AGC, 20 amp (Illustrated with "Engine Controls") [A]

1шт.

10815V

FUSE

cartridge type (Illustrated with "Engine Controls") [B]

1шт.

Выбрано товаров: 65
