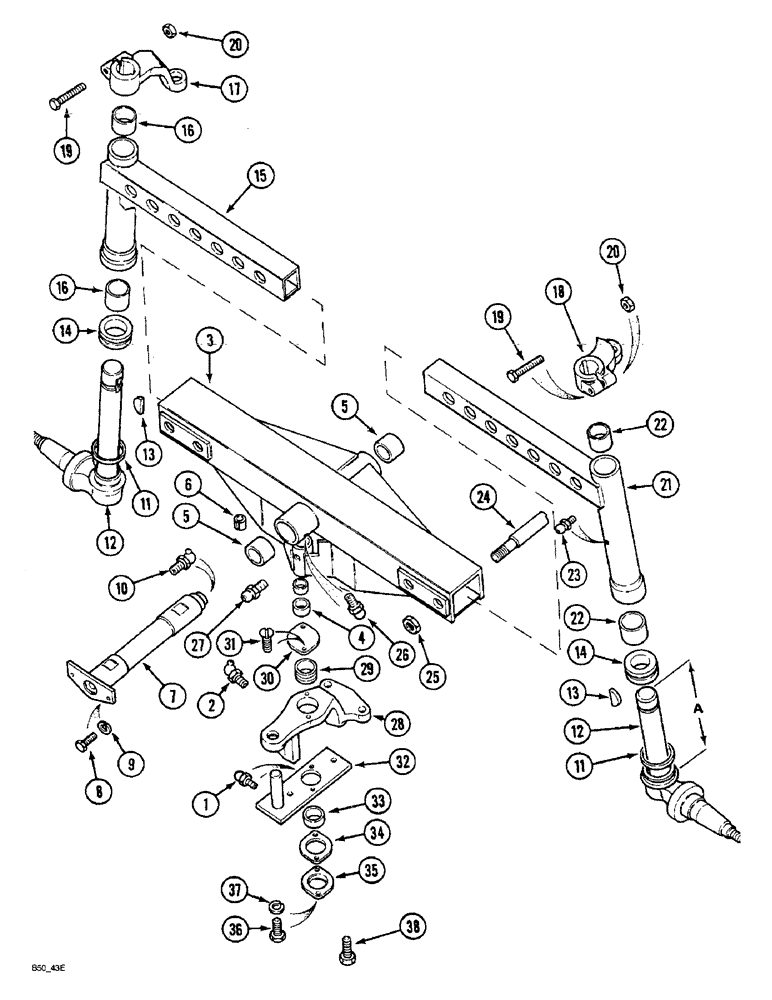

Запчасти Case IH 3230 (5-028) - ADJUSTABLE STRAIGHT FRONT AXLE, 52 TO 77 INCH TRACK, (3230) (05) - STEERING

1

219-13

LUBE NIPPLE,3/16" NPTF

FITTING grease, straight, 3/16 drive type x 19/32 inch

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING grease, 65 degree, 3/16 drive type x 23/32 inch

1шт.

3

3121242R93

CENTER AXLE

AXLE ASSEMBLY front, center section, Includes Ref. 4, 5 and 6

1шт.

4

1536870C1

BUSHING,25.43mm ID x 28.7mm OD x 34mm L

- Cylinder mounting bracket

2шт.

5

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

pivot

2шт.

6

103925A1

BUSHING,20mm ID x 26.06mm OD x 25mm L

spring steel

1шт.

221850A1

LARGE PLATE

PLATE center axle, end, not shown

1шт.

7

99897C1

SHAFT

ASSEMBLY front axle pivot, mounted hydraulic pump

1шт.

7

3121254R1

SHAFT ASSY.

SHAFT ASSEMBLY front axle pivot

1шт.

8

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

hex, 1/2 NC x 1-1/4 inch

2шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

10

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING grease, 90 degree, 1/8 PT x 1-13/16 inch

1шт.

11

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

- Felt, Special

2шт.

12

3121261R91

KNUCKLE,RH

ASSEMBLY steering, Dimension A : 11.22 inch

2шт.

12

3121270R91

KNUCKLE

ASSEMBLY steering, Dimension A : 8.33 inch, Includes Ref. 13

2шт.

13

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

1шт.

14

185106C91

BEARING ASSY,44.2mm ID x 70.1mm OD x 19.05mm W

BEARING thrust

1шт.

15

3121257R91

EXTENSION ASSY.

EXTENSION front axle, right, used with knuckle 3121261R91

1шт.

15

3121268R91

EXTENSION ASSY.

EXTENSION front axle, right, used with knuckle 3121270R91, Includes Ref. 16

1шт.

16

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

front axle extension

2шт.

17

3121264R1

ARM

steering knuckle

1шт.

18

3121263R1

ARM

steering knuckle

1шт.

19

326-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

2шт.

20

329-108

NUT,1/2"-13, G8

2шт.

21

3121256R91

EXTENSION ASSY.

EXTENSION front axle, left, used with knuckle 3121261R91

1шт.

21

3121267R91

EXTENSION ASSY.

EXTENSION front axle, left, used with knuckle 3121270R91, Includes Ref. 22

1шт.

22

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

front axle extension

2шт.

23

219-14

LUBE NIPPLE,1/4" NPTF

FITTING grease, straight, 1/4 drive type x 9/16 inch

2шт.

23

219-405

LUBE NIPPLE,45 Degree Elbow, 3/16" NPTF

FITTING grease, 45 degree, 1/4 inch

2шт.

24

3121252R1

BOLT,3/4" - 16 x 1 27/32"

shoulder

4шт.

25

3121253R1

SPECIAL NUT

front axle

4шт.

26

219-98

LUBE NIPPLE,1/4" NPTF

FITTING grease, 1/4 inch

1шт.

27

219-405

LUBE NIPPLE,45 Degree Elbow, 3/16" NPTF

FITTING grease, 45 degree, 1/4 inch

1шт.

28

67499C94

STEERING ARM

ARM ASSEMBLY center, power steering, Includes Ref. 29, 30 and 31

1шт.

29

379748R2

BUSHING,38.19mm ID x 41.27mm OD x 15.87mm L

bar assembly

1шт.

30

1536890C1

LARGE PLATE

PLATE cover

1шт.

31

443-12512

SCREW,Cross Flat Hd, 1/4"-20 x 3/4"

2шт.

32

405580R21

BAR ASSY.

BAR ASSEMBLY power steering cylinder, Includes Ref. 33 - 37

1шт.

33

379748R2

BUSHING,38.19mm ID x 41.27mm OD x 15.87mm L

bar assembly

1шт.

34

1536919C1

GASKET

cover plate

1шт.

35

1536892C1

LARGE PLATE

PLATE cover

1шт.

36

463-12510

SCREW,Hex Hd, 1/4"-20 x 5/8"

hex flange, 1/4 NC x 5/8 inch

2шт.

37

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

38

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.
