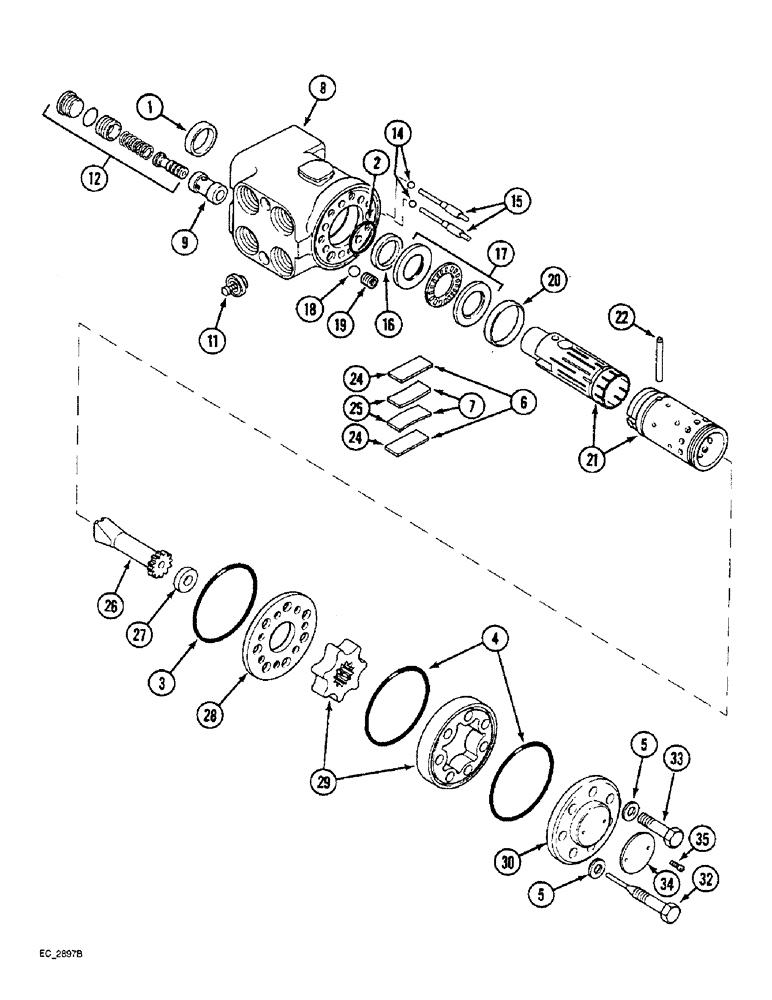

Запчасти Case IH 3230 (5-022) - POWER STEERING VALVE, DANFOSS OSPC 100 OR (05) - STEERING

88107C93

PUMP

VALVE ASSEMBLY integral, Includes Ref. 1 - 35

1шт.

366441A1R

REMAN-HYD PUMP

3220 (AFTER S/N 11070000), 3230, Both (NORTH AMERICA) (1/94-12/98), Reman for New PN 88107C93

1шт.

366441A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1500443C92

SEAL KIT

KIT service, Includes Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

SEAL dust

1шт.

2

NSS

NOT SOLD SEPARAT

O-RING sealing

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING sealing

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING sealing

2шт.

5

NSS

NOT SOLD SEPARAT

WASHER flat

7шт.

6

NSS

NOT SOLD SEPARAT

SPRING flat, weak, blue

2шт.

7

NSS

NOT SOLD SEPARAT

SPRING curved, weak, blue

2шт.

8

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY power steering valve, Includes Ref. 9 and 11

1шт.

9

NSS

NOT SOLD SEPARAT

SEAT relief valve

1шт.

11

NSS

NOT SOLD SEPARAT

VALVE check

1шт.

12

1971688C1

VALVE

ASSEMBLY relief

1шт.

14

211-1006

BALL,3/16" Dia

chrome alloy steel, 3/16 inch, grade 24

2шт.

15

1971684C1

BUSHING

with pin

2шт.

16

NSS

NOT SOLD SEPARAT

RING

1шт.

17

1272808C1

NEEDLE BEARING

needle bearing

1шт.

18

1272794C1

BALL

check, 8.5 mm diameter

1шт.

19

1272793C1

BUSHING

threaded

1шт.

20

1272795C1

O-RING,39.6mm ID x 41mm OD x 4.5mm

O-RING sleeve

1шт.

21

NSS

NOT SOLD SEPARAT

SPOOL ASSEMBLY, with sleeve

1шт.

22

1272796C1

CROSS PIN

- dowel, special

1шт.

N14219

SET OF PARTS

SPRING centering, Includes Ref. 24 and 25

1шт.

24

NSS

NOT SOLD SEPARAT

SPRING flat

2шт.

25

NSS

NOT SOLD SEPARAT

SPRING curved

3шт.

26

1272797C1

SHAFT

drive, pump

1шт.

27

3216707R1

SPACER

cardan shaft

1шт.

28

1346022C1

PLATE

distributor

1шт.

29

3216708R1

ROTOR

GEAR rotor

1шт.

30

3112273R1

COVER

end

1шт.

32

3216709R1

SCREW

hex

1шт.

33

3216710R1

SCREW

BOLT hex, 8 - 1.25 x 40 mm

6шт.

34

NSS

NOT SOLD SEPARAT

PLATE name

1шт.

35

NSS

NOT SOLD SEPARAT

SCREW drive

2шт.
