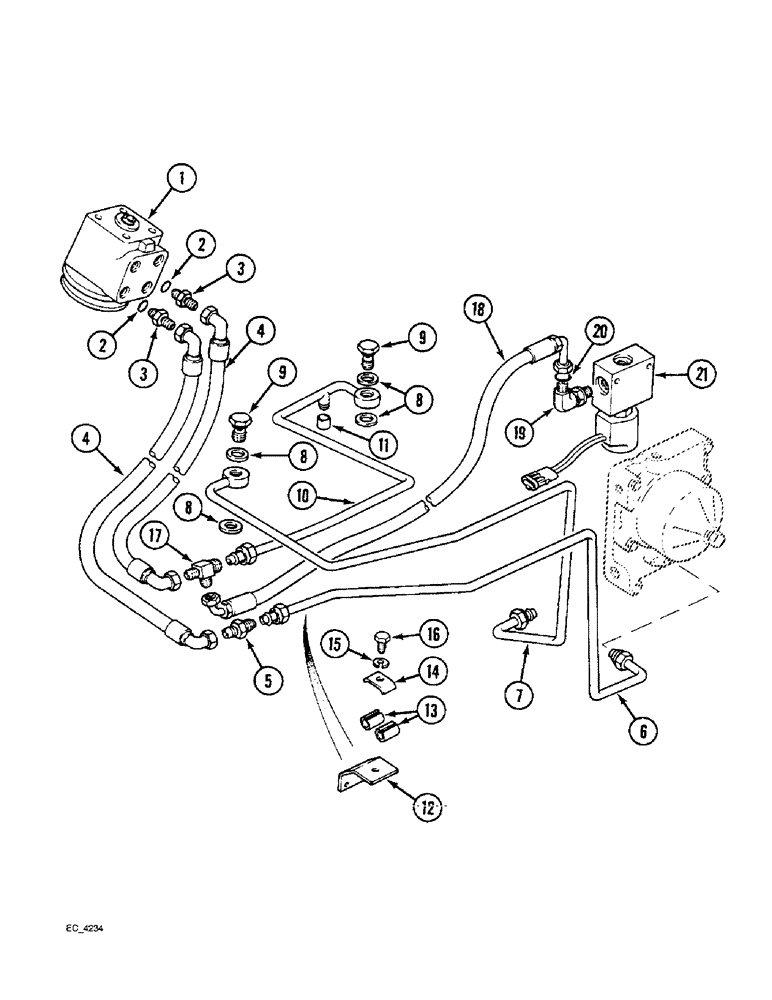

Запчасти Case IH 3230 (5-018) - POWER STEERING TUBES, REAR, 2 WHEEL DRIVE TRACTORS WITH CAB (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY integral, See figure 5-022

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

3

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16-18 flare x 3/4-16 inch o-ring boss

2шт.

4

1502284C2

HOSE

hydraulic, pressure and return

2шт.

5

218-851

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, 37 Degree

ADAPTER straight, large hex

2шт.

6

99776C3

PIPE

TUBE ASSEMBLY pressure, power steering, Serial Range: -JJE0926824

1шт.

6

240547A1

HOSE

pressure, power steering, Start Serial: JJE0926825

1шт.

7

1287929C3

PIPE,65 mm Length

TUBE ASSEMBLY return, with 2 speed power shift

1шт.

7

1343141C2

PIPE

TUBE ASSEMBLY return, with forward and reverse

1шт.

8

109791A1

SEALING WASHER

SEAL bonded

4шт.

9

1500102C2

SCREW,Hollow, Hex, 3/4" - 16 x 35mm

hollow

2шт.

10

1287926C3

PIPE

TUBE ASSEMBLY supply, with 2 speed power shift

1шт.

10

1343139C1

PIPE

TUBE ASSEMBLY supply, with forward and reverse

1шт.

11

218-754

CAP,37 Degree, 9/16"-18

- hex, 9/16-18 inch

1шт.

12

1500300C1

SUPPORT

BRACKET power steering pipes

1шт.

13

673171C1

RUBBER BUSHING

SLEEVE rubber

2шт.

14

1500302C1

CLAMP

tube

1шт.

15

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

16

613-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

hex, 6 - 1 x 20 mm

1шт.

17

123790A1

TEE

union, reducer

1шт.

18

123580A2

HOSE

differential lock, solenoid

1шт.

19

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj o-ring boss, Includes Ref. 20

1шт.

21

116242A1

SOLENOID

differential lock

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
