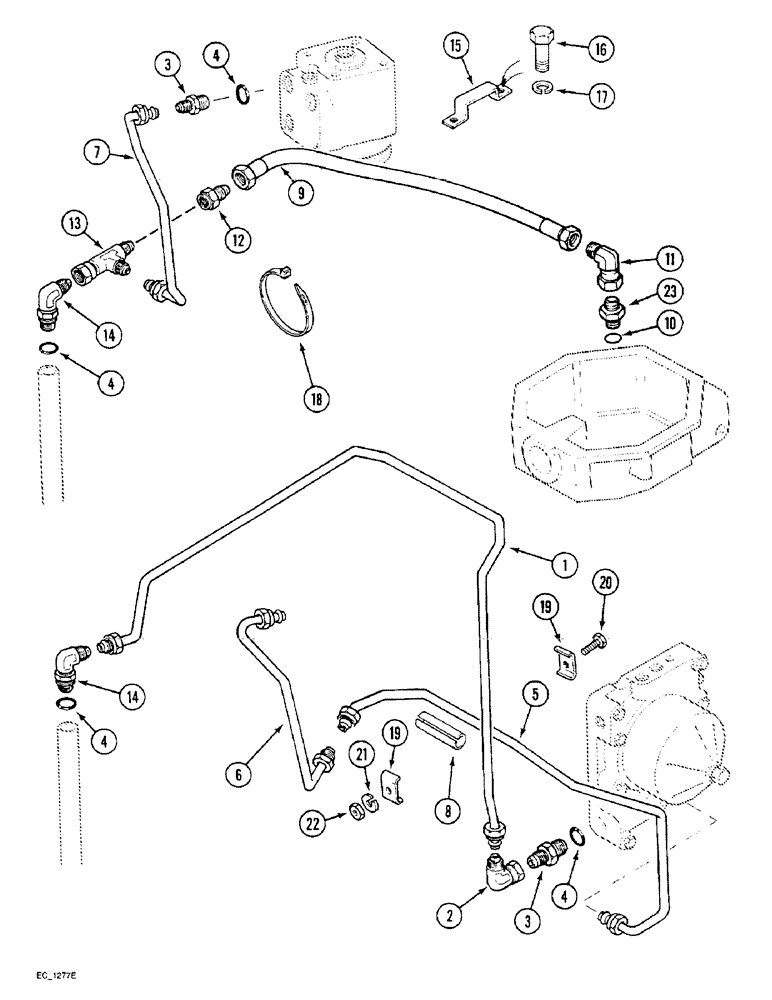

Запчасти Case IH 3230 (5-014) - POWER STEERING TUBES, REAR, MFD TRACTOR WITHOUT CAB, WITH OR WITHOUT 2 SPEED POWER SHIFT (05) - STEERING

1

99778C2

PIPE

TUBE ASSEMBLY return

1шт.

2

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

1шт.

3

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4 inch NF flare x o-ring boss

3шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

5шт.

5

99777C3

PIPE

TUBE ASSEMBLY pressure, rear, Serial Range: -JJE0926429

1шт.

5

236251A1

HYD TUBE

TUBE ASSEMBLY pressure, steering, Start Serial: JJE0926430

1шт.

6

99797C3

PIPE

TUBE ASSEMBLY pressure, power steering, Serial Range: -JJE0926429

1шт.

6

237705A1

HOSE

pressure, power steering, Serial Range: -JJE0926429

1шт.

7

99798C2

PIPE

TUBE ASSEMBLY return, power steering

1шт.

8

536009R1

FUEL HOSE,0.31" ID x 2.50"

Sleeve, Order 87086C1, Cut to length 0.31" ID x 2.50"

2шт.

87086C1

RADIATOR HOSE,7.90 mm ID

HOSE, 7.90 mm ID

1шт.

9

124612A2

HYDRAULIC HOSE

HOSE ASSEMBLY drop box

1шт.

10

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

13/32 ID x 5/64 inch

1шт.

11

218-5229

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, 37 Degree Fem Sw

90 degree

1шт.

12

99799C1

FITTING

ADAPTOR reducer

1шт.

13

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

swivel, 3/4-16 inch flare branch x flare x adj straight thread

1шт.

14

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, 3/4-16 inch flare x adj o-ring boss

2шт.

15

99953C1

CLAMP

BRACKET pipe retaining

1шт.

16

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

hex, 3/8 NC x 1-7/8 inch

2шт.

17

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

18

306132C1

CABLE TIE,14.5" L

STRAP tie 14 in

2шт.

19

535301R1

CLAMP

tube

2шт.

20

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 25 mm

1шт.

21

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

22

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

hex, 8 mm - 1.25, class 10

1шт.

23

123627A1

FITTING

CONNECTOR, Serial Range: elbow-dropbox

1шт.
