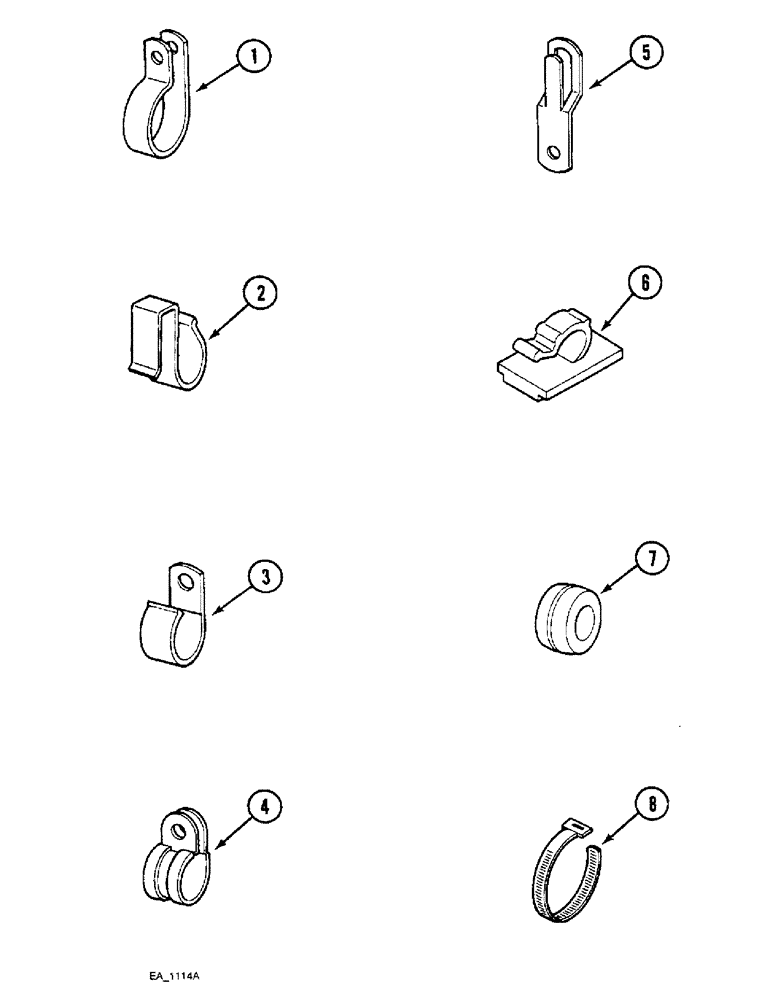

Запчасти Case IH 3230 (4-056) - ELECTRICAL CLIPS, STRAPS AND GROMMETS (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
3116240R1
CLIP
0.56 diameter, closed, battery cable, without cab
1шт.
2
3116918R1
CABLE CLIP
CLIP edge, 0.25 max diameter, air cleaner bracket
1шт.
2
3123109R1
CABLE CLIP
CLIP edge, 0.35 max diameter, temperature sender cable
1шт.
2
3125873R1
CLIP
edge, 0.374 max diameter, front grille, without cab
2шт.
2
306132C1
CABLE TIE,14.5" L
STRAP tie, edge, 0.46 max diameter, front grille, with cab
1шт.
2
306132C1
CABLE TIE,14.5" L
STRAP tie, edge, 0.46 max diameter, seat deck, left, without cab
1шт.
2
537025R1
CLIP
edge, 0.55 max diameter, master cylinder bracket
1шт.
2
539015R1
CLIP
edge, 0.75 max diameter, park brake flasher, without cab
1шт.
2
535303R1
CABLE CLIP
CLIP edge, 0.95 max diameter, battery tray
1шт.
3
100770H
CLIP
0.31 diameter, open, grille shroud, left, without cab
1шт.
3
316433C1
CLAMP
CLIP cable, 0.50 diameter, open, main harness, without cab
1шт.
3
316433C1
CLAMP
CLIP cable, 0.50 diameter, open, grille tie bar, left, with cab
1шт.
3
316433C1
CLAMP
CLIP cable, 0.50 diameter, open, grille shroud, with cab
2шт.
3
515-22254
CLAMP,1", Insul, 5/16" Bolt
P-type, Open, Harness to engine, With cab 1", Insul, 5/16" Bolt
2шт.
4
3125823R1
CLIP
cable, 0.75 diameter, battery tray, without
1шт.
5
362120R1
CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type
CLAMP P-type
1шт.
6
1500496C1
CABLE CLIP
CLIP cable, 3.0 mm diameter, fuel tank, left, with cab
2шт.
6
1502353C1
CABLE CLIP
CLIP cable, 6.5 mm diameter, instrument panel, with cab
2шт.
6
1502354C1
CABLE CLIP
CLIP cable, 9.0 mm diameter, instrument panel, with cab
2шт.
6
1536404C1
CLIP
cable, 20 mm diameter, instrument shroud, without cab
1шт.
7
3113661R1
GROMMET
left and right fenders, without cab
2шт.
7
705548R1
GROMMET
0.25 x 0.56 inch, rear fender top, without cab
1шт.
7
3115463R1
GROMMET
0.50 x 0.88 inch, fender side sheet, without cab
1шт.
7
3123681R1
GROMMET
0.31 x 0.56 inch, rear flasher lamps, without cab
1шт.
8
22-824
CABLE TIE,3/16" x 7 1/4"
STRAP tie, 7 inch, 1.75" max bundle, battery cable, without cab
1шт.
8
22-824
CABLE TIE,3/16" x 7 1/4"
STRAP tie, 7 inch, 1.75" max bundle, battery support, without cab
1шт.
8
22-824
CABLE TIE,3/16" x 7 1/4"
STRAP tie, 7 inch, 1.75" max bundle, battery tray, without cab
1шт.
8
22-824
CABLE TIE,3/16" x 7 1/4"
STRAP tie, 7 inch, 1.75" max bundle, fuel pipe, without cab
2шт.
8
22-824
CABLE TIE,3/16" x 7 1/4"
STRAP tie, 7 inch, 1.75" max bundle, steering support, without cab
1шт.
8
22-824
CABLE TIE,3/16" x 7 1/4"
STRAP tie, 7 inch, 1.75" max bundle, front cab harness
1шт.
8
22-824
CABLE TIE,3/16" x 7 1/4"
STRAP tie, 7 inch, 1.75" max bundle, tachometer drive cable
2шт.
8
22-824
CABLE TIE,3/16" x 7 1/4"
STRAP tie, 7 inch, 1.75" max bundle, oil pressure gauge tube
2шт.
8
22-824
CABLE TIE,3/16" x 7 1/4"
STRAP tie, 7 inch, 1.75" max bundle, battery earth, without cab
1шт.
8
22-824
CABLE TIE,3/16" x 7 1/4"
STRAP tie, 7 inch, 1.75" max bundle, starter harness, with cab
1шт.
8
306132C1
CABLE TIE,14.5" L
STRAP tie, 4.0" max bundle, air inlet pipe, with cab
2шт.
8
306132C1
CABLE TIE,14.5" L
STRAP tie, 4.0" max bundle, steering support, with cab
1шт.
Выбрано товаров: 36
