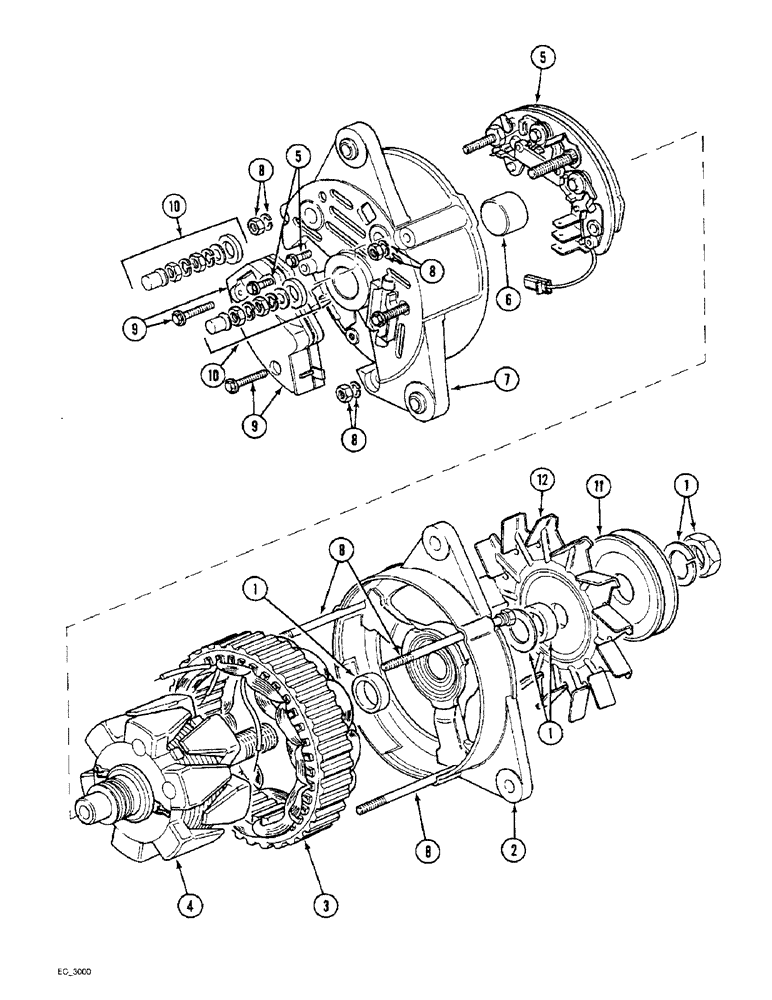

Запчасти Case IH 3230 (4-052) - ALTERNATOR ASSEMBLY, LUCAS 45 AMP (04) - ELECTRICAL SYSTEMS

92293C1

ALTERNATOR

ALTERNATOR ASSEMBLY Lucas, with fan and pulley, Includes Ref. 1 - 12

1шт.

92293C1R

REMAN-ALTERNATOR

Reman For New PN 92293C1

1шт.

92293C1C

CORE-ALTERNATOR

Return Part Number

1шт.

92293C1GV

ALTERNATOR

Value, W/Fan and Pulley

1шт.

1

K262477

KIT

KIT sundry parts

1шт.

2

K262268

BRACKET

FRAME ASSEMBLY drive end

1шт.

3

K262273

STATOR

STATOR alternator

1шт.

4

K262269

ROTOR

ROTOR ASSEMBLY alternator

1шт.

5

K262267

RECTIFIER

RECTIFIER ASSEMBLY alternator, Includes nuts and screws

1шт.

6

K262272

ROLLER BEARING

BEARING slip ring end

1шт.

7

K262271

SUPPORT

FRAME slip ring end

1шт.

8

K262274

PACKAGE

KIT bolt through, with nuts and washers

1шт.

9

K262266

REGULATOR

REGULATOR complete, with brush box

1шт.

10

K262478

KIT

KIT terminals

1шт.

11

1970879C1

PULLEY

KIT pulley

1шт.

12

K311704

FAN

FAN alternator

1шт.

92281C1

ALTERNATOR

ALTERNATOR heavy duty, without fan and pulley, Includes Ref. 1 - 10

1шт.

87800219R

REMAN-ALTERNATOR

Reman For New PN 92281C1

1шт.

87800219C

CORE-ALTERNATOR

Return Part Number

1шт.

1

K262477

KIT

KIT sundry parts

1шт.

2

K262268

BRACKET

FRAME ASSEMBLY drive end

1шт.

3

K262275

STATOR

STATOR alternator

1шт.

4

K262270

ROTOR

ROTOR ASSEMBLY alternator

1шт.

5

K262267

RECTIFIER

RECTIFIER ASSEMBLY alternator, Includes nuts and screws

1шт.

6

K262272

ROLLER BEARING

BEARING slip ring end

1шт.

7

K262271

SUPPORT

FRAME slip ring end

1шт.

8

K262274

PACKAGE

KIT bolt through, with nuts and washers

1шт.

9

K262266

REGULATOR

REGULATOR complete with brush box

1шт.

10

K262478

KIT

KIT terminals

1шт.

11

1970879C1

PULLEY

KIT pulley

1шт.

12

K311704

FAN

FAN alternator

1шт.
