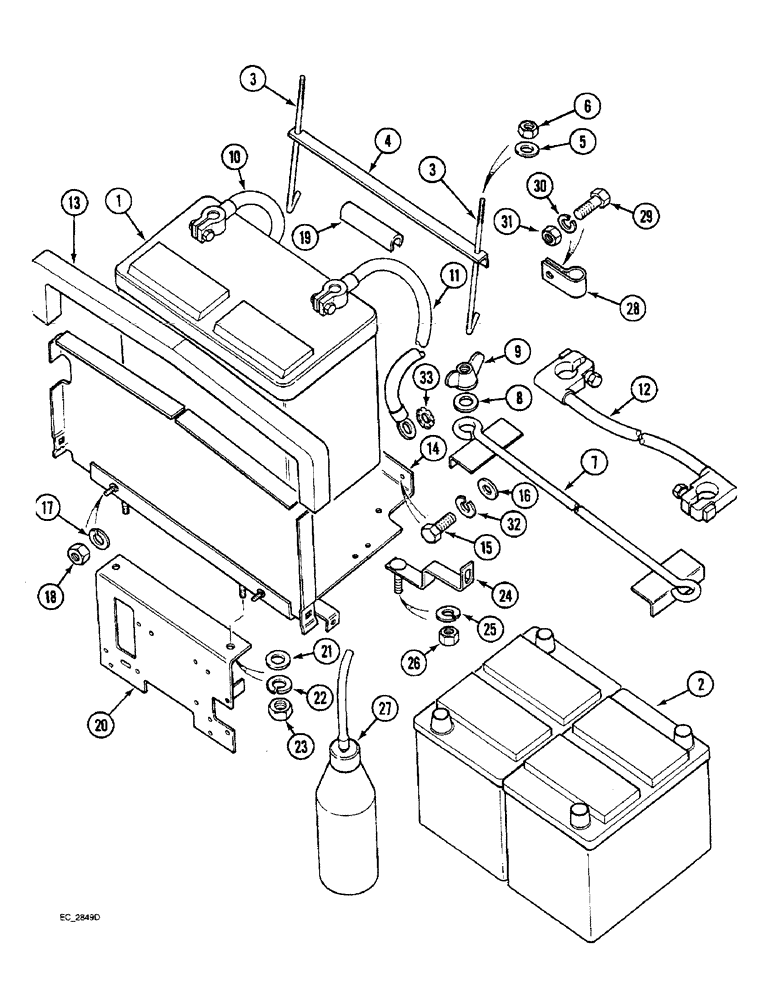

Запчасти Case IH 3230 (4-044) - BATTERY TRAY, BATTERY AND CABLES, WITHOUT CAB (04) - ELECTRICAL SYSTEMS

1

B2772

DRY BATTERY

BATTERY wet charge, extra heavy duty, 12 volt

1шт.

2

D44177

DRY BATTERY

heavy duty, 6 volt

2шт.

3

527605R3

ROD

battery hold down

2шт.

3

529968R3

ROD

battery hold down heavy duty

2шт.

4

3121178R1

BRACKET

battery hold down, 12 volt

1шт.

5

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

6

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

7

67845C1

SUPPORT

BRACKET battery hold down, 2 x 6 volt

1шт.

8

28588R1

WASHER

flat, 11/32 x 11/16 x 3/64 inch

2шт.

9

129-419

WING NUT,5/16"-18

NUT wing, 5/16 inch NC

2шт.

10

537504R1

CABLE ASSY.

CABLE battery

1шт.

11

122599A1

CABLE ASSY.

CABLE, Serial Range: battery-starter

1шт.

12

370394R91

CABLE

battery, 2 x 6 volt

1шт.

13

NSS

NOT SOLD SEPARAT

GASKET, 32.7 inch, Order 3 x 73217C1 and, Serial Range: cut-length

1шт.

73217C1

FILLING STRIP

SEAL foam, bulk length, 4 foot roll, sold by the foot

1шт.

14

144163A2

TRAY ASSY.

TRAY ASSEMBLY battery

1шт.

15

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

16

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

17

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

WASHER, LOCK, 1/4"

1шт.

18

425-104

NUT,1/4"-20, Cl 5

hex, 1/4 inch NC

1шт.

19

3113841R1

MOLDING

MOULDING edge

1шт.

20

127516A5

SUPPORT ASSY.

SUPPORT battery tray

1шт.

21

495-81117

WASHER,.344" x 1" x .120"

flat, 11/32 x 1 x 7/64 inch

2шт.

22

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

23

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

24

144653A1

SUPPORT

BRACKET panel

2шт.

25

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

26

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

27

B17086

ACID, BATTERY

ELECTROLYTE battery

1шт.

28

3116240R1

CLIP

0.56 diameter

1шт.

29

840-1412

SCREW,Hex Skt, M4 x 12mm, Cl 4.8

- machine, pan Phillips, 4 - 0.7 x 12 mm

1шт.

30

92-11008

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

31

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, M8 x 1.25, Cl 8

1шт.

32

492-11038

LOCK WASHER,3/8"

2шт.

33

493-11052

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER internal-external tooth lock, 1/2 inch

2шт.
