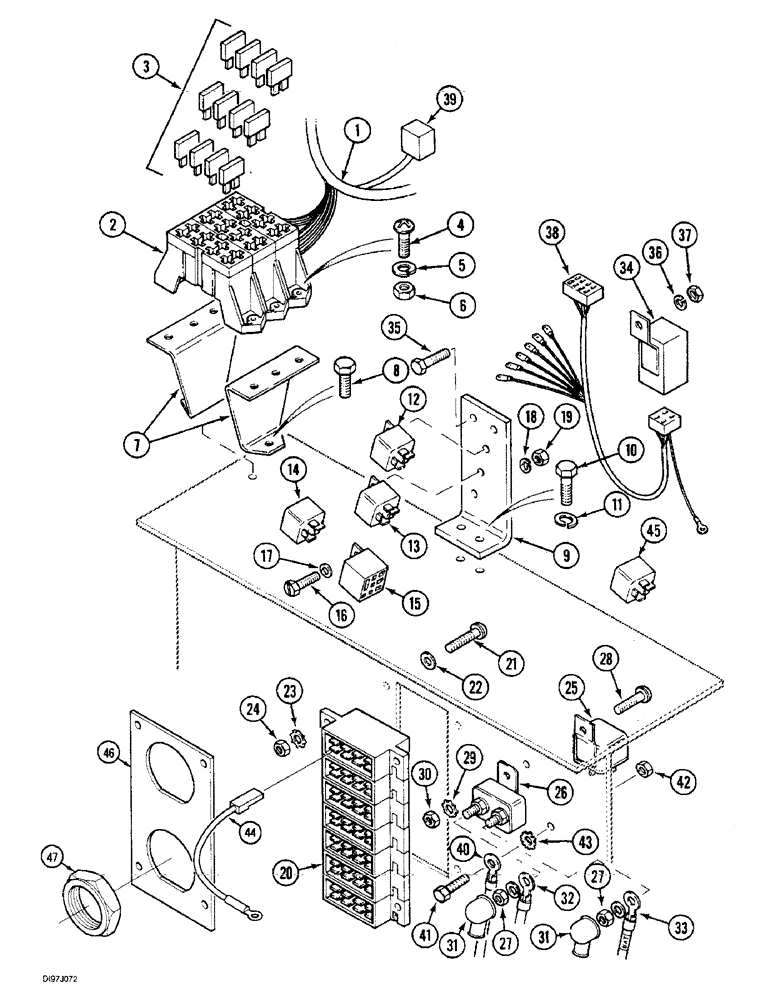

Запчасти Case IH 3230 (4-034) - BULKHEAD ELECTRICS, TRACTOR WITH CAB (04) - ELECTRICAL SYSTEMS

1

141468A1

HARNESS

ASSEMBLY instrument panel, Serial Range: -JJE0918095

1шт.

1

230254A1

HARNESS

ASSEMBLY instrument panel, Includes Ref. 2, Start Serial: JJE0918096

1шт.

2

NSS

NOT SOLD SEPARAT

BLOCK fuse holder

1шт.

3

A149796

FUSE

violet, 3 ampere

1шт.

3

A149798

FUSE

tan, 5 ampere

1шт.

3

A149800

FUSE,10 Amp

red, 10 ampere

1шт.

3

A149801

FUSE,Lt Blue, 15 Amp

light blue, 15 ampere

1шт.

3

A149802

FUSE

yellow, 20 ampere

1шт.

4

840-1414

SCREW,Pan, Cl 4.8

pan, 4 x 14 mm

4шт.

5

892-11004

LOCK WASHER,M4

WASHER, LOCK, M4

4шт.

6

829-1304

NUT,M4, Cl 8

hex, 4 mm - 0.70 class 10

4шт.

7

91844C2

SUPPORT

BRACKET fuse box mounting

2шт.

8

814-4016

BOLT,Hex, M4 x 0.7 x 16mm, Cl 8.8, Full Thd

hex, full threads, 4 - 0.7 x 16 mm

2шт.

9

3129809R3

SUPPORT

BRACKET reservoir support

1шт.

10

613-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

hex, 6 - 1 x 20 mm

2шт.

11

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

12

1983420C2

RELAY

miniature, with bracket, rear lights

1шт.

13

1983420C2

RELAY

miniature, with bracket, cab power

1шт.

14

1983394C2

RELAY

electrical, 30 amp, MFD

1шт.

15

NSS

NOT SOLD SEPARAT

BLOCK relay mounting

1шт.

16

931340R1

SCREW,Slotted Cheese, M5 x 0.8 x 12mm, Cl 4.8

machine, 5 mm x 12 mm

1шт.

17

934044R1

WASHER,M5.3 ID x 10 OD x 1 Thk

flat, 5 mm

1шт.

18

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

1шт.

19

825-1405

NUT,M5, Cl 8

1шт.

20

3399527R2

CONNECTOR, ELEC

CONNECTOR bulkhead

1шт.

21

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

- machine, pan Phillips, 5 - 0.8 x 16 mm

4шт.

22

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

4шт.

23

893-11005

LOCK WASHER,Ext Tooth, M5

WASHER - external tooth lock, 5 mm

4шт.

24

824-1405

NUT,M5, Cl 5

4шт.

25

1983420C2

RELAY

miniature, with bracket, front work lights

1шт.

26

403069R1

CIRCUIT-BREAKER,30A

BREAKER circuit, 30 ampere, Includes Ref. 27

1шт.

27

225-14210

NUT,#10-32

2шт.

28

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

- machine, pan Phillips, 5 - 0.8 x 16 mm

1шт.

29

893-11005

LOCK WASHER,Ext Tooth, M5

WASHER - external tooth lock, 5 mm

1шт.

30

824-1405

NUT,M5, Cl 5

1шт.

31

1333006C1

BOOT

rubber

2шт.

32

1987425C6

HARNESS

ASSEMBLY main cab, Serial Range: -JJE0918095

1шт.

32

228401A1

HARNESS

ASSEMBLY main cab, Start Serial: JJE0918096

1шт.

33

1537879C2

HARNESS

ASSEMBLY main cable, front, Serial Range: -JJE0913677

1шт.

33

189877A1

HARNESS

ASSEMBLY main cable, front, Serial Range: JJE0913678-JJE0918095

1шт.

33

228172A1

HARNESS

engine, Start Serial: JJE0918096

1шт.

34

1536091C2

FLASHER UNIT

UNIT flasher, warning lights, Pektron

1шт.

35

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

1шт.

36

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

37

225-14110

NUT,#10-24

1шт.

38

1536894C1

HARNESS

ASSEMBLY flasher unit, to turn switch

1шт.

39

1983245C1

MODULE

module

1шт.

40

3401412R1

CABLE

ground, Serial Range: cab-skid

1шт.

41

614-8014

BOLT,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 14 mm

1шт.

42

825-1408

NUT,M8, Cl 8

1шт.

43

893-11008

LOCK WASHER,Ext Tooth, M8

WASHER, LOCK, Ext Tooth, M8

1шт.

44

141722A1

CABLE

clean, ground, Serial Range: -JJE0918095

1шт.

45

1987452C1

RELAY

safety start, 12 volt, 70 amp

1шт.

46

230498A1

LARGE PLATE

PLATE bulkhead connections

1шт.

47

225347C1

NUT

ITT connector

2шт.
