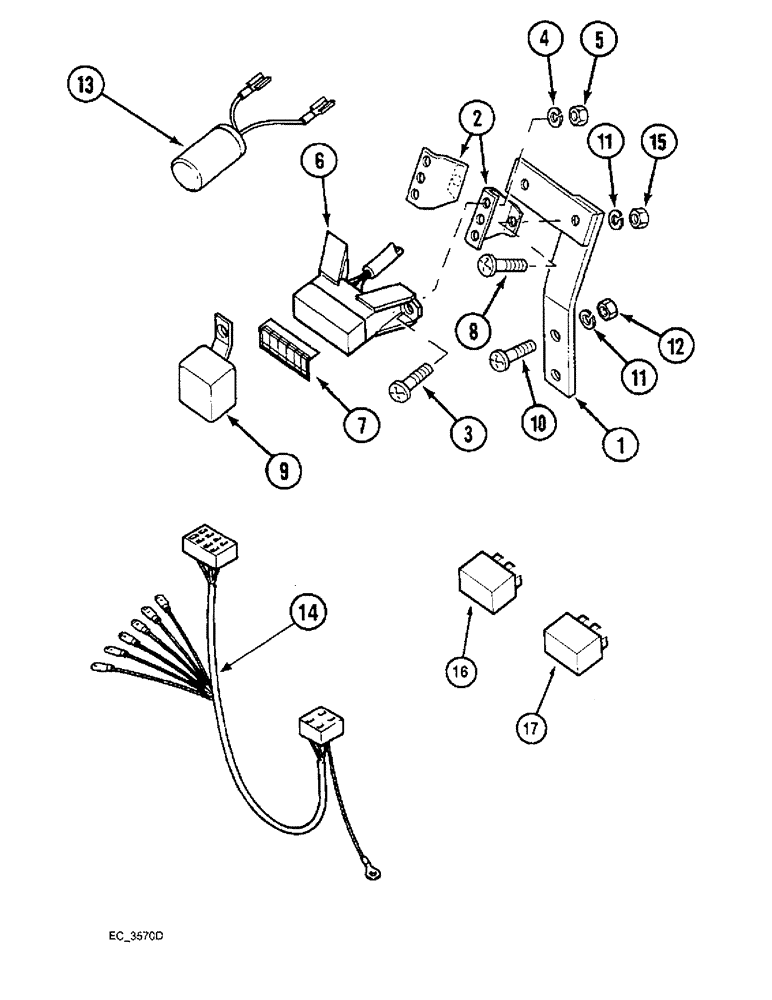

Запчасти Case IH 3230 (4-032) - BULKHEAD ELECTRICS, TRACTOR WITHOUT CAB (04) - ELECTRICAL SYSTEMS

1

143985A2

SUPPORT

BRACKET fuse box mounting

1шт.

2

91844C2

SUPPORT

BRACKET fuse box mounting

2шт.

3

840-1414

SCREW,Pan, Cl 4.8

pan, 4 x 14 mm

6шт.

4

892-11004

LOCK WASHER,M4

WASHER, LOCK, M4

6шт.

5

829-1304

NUT,M4, Cl 8

hex, 4 mm - 0.70 class 10

6шт.

6

NSS

NOT SOLD SEPARAT

BOX fuse, Order harness assembly 144206A2

1шт.

7

129462A1

DECAL

fuse box symbols, without cab

1шт.

8

628-6020

BOLT,Hex, M6 x 20mm, Cl 10.9, Full Thd

hex, 6 - 1.0 x 20 mm, class 10.9

2шт.

9

1536091C2

FLASHER UNIT

UNIT flasher, warning lights, Pektron

1шт.

10

424-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

machine, pan head Phillips, 1/4 x 3/4 inch

2шт.

11

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

12

425-104

NUT,1/4"-20, Cl 5

hex, 1/4 inch NC

2шт.

13

3125984R2

FLASHER UNIT

FLASHER flasher, park brake

1шт.

14

1536654C1

HARNESS

flasher unit heavy duty, use with 3072070R91

1шт.

15

825-1406

NUT,M6, Cl 8

2шт.

16

1983394C2

RELAY

electrical, 30 amp, MFD

1шт.

17

1987452C1

RELAY

safety start, 12 volt, 70 amp

1шт.
