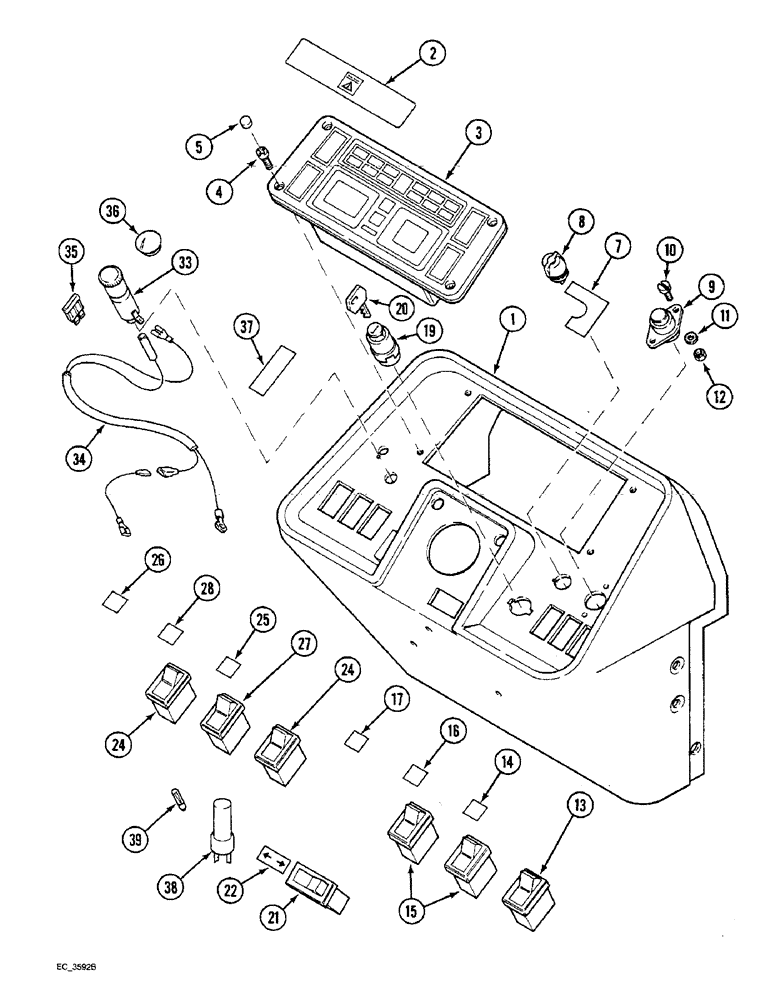

Запчасти Case IH 3230 (4-028) - INSTRUMENTS AND SWITCHES, TRACTOR WITH CAB (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
1536949C1
PANEL, INSTRUMENTS
HOUSING instrument rear, See figure 9-014, Includes Ref. 2
1шт.
2
321-6770
DECAL
warning, IPTO overspeed, English
1шт.
2
321-6781
DECAL
warning, IPTO overspeed, French
1шт.
3
1983576C6
CLUSTER, INSTR.
CLUSTER ASSEMBLY instruments
1шт.
4
261-14512
SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"
SCREW self-tapping, pan Phillips, No. 10 NC x 3/4 inch
4шт.
5
245918C1
LENS
PLUG blanking, rocker switch
4шт.
7
1265116C1
PRODUCT GRAPHIC
DECAL light switch, English
1шт.
8
107200C2
LIGHT SWITCH
SWITCH lamp
1шт.
9
397940R93
SWITCH
push button
1шт.
10
470-1106
SCREW,Slotted Pan Hd, #10-24 x 3/8"
pan head slotted, No. 10 NF x 3/8 inch
2шт.
11
493-41020
LOCK WASHER,Ext Tooth, #10
WASHER, LOCK, Ext Tooth, #10
2шт.
12
225-13110
NUT,#10-24
2шт.
13
91855C1
SWITCH
rocker
1шт.
14
91856C1
SYMBOLS
DECAL blue
1шт.
15
245909C1
SWITCH ASSY
SWITCH rocker
3шт.
16
245913C1
DECAL
DECAL symbol, green
1шт.
17
245912C1
LENS,GREEN
DECAL symbol, green
1шт.
19
A187613
IGNITION SWITCH
SWITCH ignition
1шт.
19
A187614
IGNITION SWITCH
SWITCH ignition
1шт.
20
A77313
SET OF 2 KEYS
KEY set of two
1шт.
21
1983638C1
FLASHER SWITCH
SWITCH rocker
1шт.
22
1983639C1
SYMBOL
DECAL turn signal, green
1шт.
24
245911C1
TOGGLE SWITCH
SWITCH rocker
2шт.
25
1328477C1
LENS
DECAL symbol, green
1шт.
26
245915C1
DECAL
DECAL symbol
1шт.
27
3231782R1
SWITCH
rocker
1шт.
28
91857C1
SYMBOLS
DECAL symbol, yellow
1шт.
33
3121407R92
LIGHTER, CIGARETTE
LIGHTER ASSEMBLY cigar
1шт.
34
91896C1
HARNESS
cigar lighter
1шт.
35
A149800
FUSE,10 Amp
red, 10 ampere
1шт.
36
3129927R1
PLUG
blanking, if cigar lighter is not fitted
1шт.
37
1985097C2
DECAL
creeper speed
1шт.
37
113475A1
DECAL
forward and reverse, See figure 9-114
1шт.
38
134608A1
LAMP SOCKET
SOCKET bulb, Includes Ref. 39
1шт.
Выбрано товаров: 35
