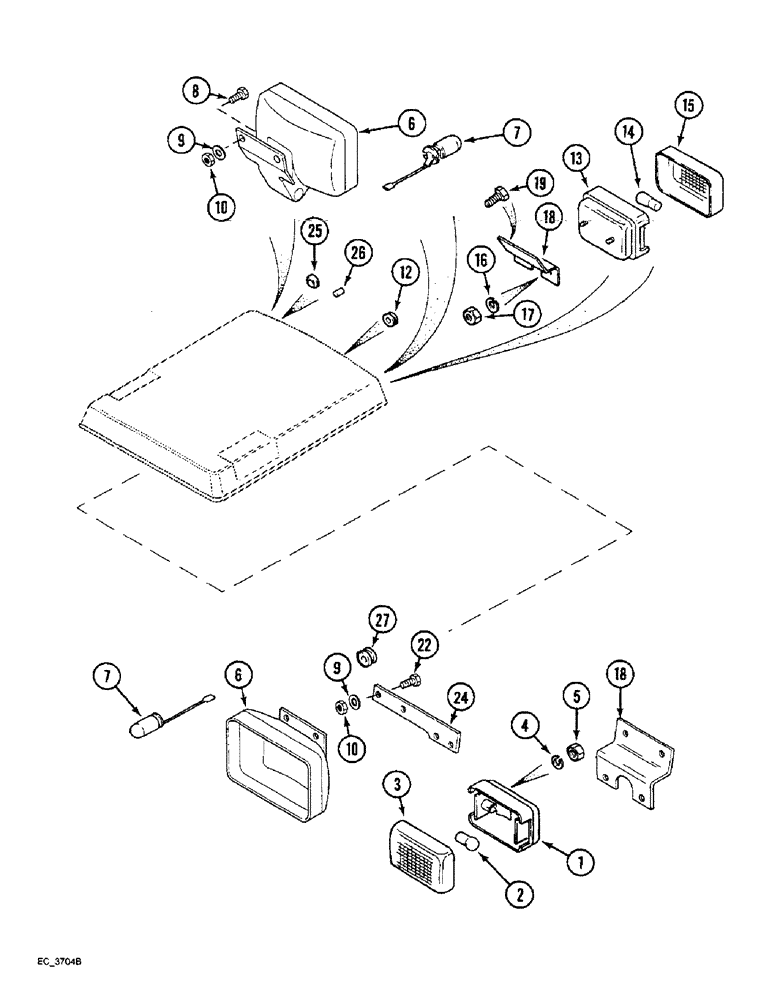

Запчасти Case IH 3230 (4-018) - CAB LIGHTS, WORK AND WARNING (04) - ELECTRICAL SYSTEMS

1

1983404C1

LIGHT ASSY.

LIGHT flasher warning, front, Includes Ref. 2 and 3

2шт.

2

A41264

BULB,#1156, 12V

Lamp, Single contact, Single filament #1156, 12V

1шт.

3

91941C1

LENS

amber

2шт.

4

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

4шт.

5

824-1405

NUT,M5, Cl 5

4шт.

6

140444A2

HEADLIGHT

LIGHT ASSEMBLY flood, front, SAW, Includes Ref. 7

1шт.

7

1312210C2

BULB,Halogen H3, 12V, 55W

LAMP halogen bulb, 12V/55W

1шт.

8

97006C1

BOLT,Hex, M6 x 20mm, Cl 8.8

special, hex flange, 6 mm - 1.00 x 20 mm

2шт.

9

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

10

832-10406

NUT,M6 x 1, Cl 8

LOCK, M6 x 1, Cl 8

1шт.

12

96901C1

GROMMET

wiring, lamp

4шт.

13

1983404C1

LIGHT ASSY.

LIGHT flasher warning, rear, Includes Ref. 14 and 15

2шт.

14

A41264

BULB,#1156, 12V

Lamp, Single contact, Single filament #1156, 12V

1шт.

15

91941C1

LENS

amber

2шт.

16

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

4шт.

17

824-1405

NUT,M5, Cl 5

4шт.

18

1344391C1

SUPPORT

BRACKET flasher light

4шт.

19

97006C1

BOLT,Hex, M6 x 20mm, Cl 8.8

special, hex flange, 6 mm - 1.00 x 20 mm

1шт.

22

1270742C1

PREV TORQUE BOLT,Cross Rec Pan Hd, M6 x 1 x 12mm

SCREW - pan head, special, 6 - 1.0 x 12 mm

1шт.

22

540-702

SCREW,Cross Pan Hd, M6 x 12

pan head cross recessed, 6 x 12 mm

1шт.

24

139952A1

SUPPORT

BRACKET worklight, mounting

2шт.

25

1987012C1

PLUG

blanking

1шт.

26

3234212R2

PLUG

cover, blanking

1шт.

27

96901C1

GROMMET

wiring, lamp

1шт.
