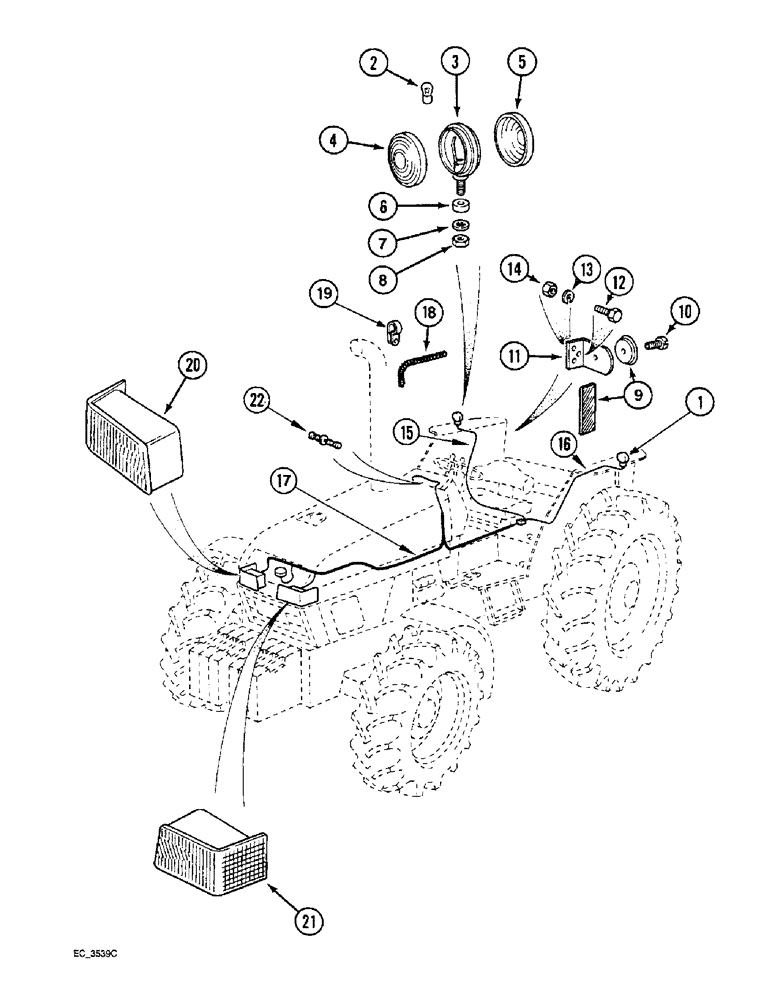

Запчасти Case IH 3230 (4-006) - LIGHTS AND HARNESS, CROWN TOP FENDERS (04) - ELECTRICAL SYSTEMS

1

67538C92

HEADLIGHT

LIGHT ASSEMBLY flasher, 1/2 inch stud

2шт.

A41264

BULB,#1156, 12V

Lamp, Single contact, Single filament, Not illustrated #1156, 12V

1шт.

394262R1

WASHER

GASKET light, 1/2 inch, not illustrated

1шт.

493-21052

LOCK WASHER,Int Tooth, 1/2"

WASHER internal tooth lock, 1/2 inch

1шт.

425-158

JAM NUT,Jam, 1/2"-20, G5

(Not illustrated) Jam, 1/2"-20, G5

1шт.

NSS

NOT SOLD SEPARAT

LIGHT ASSEMBLY flasher 7/16 inch stud, Order 67538C92, Includes Ref. 2 - 8

2шт.

2

A41264

BULB,#1156, 12V

Lamp, Single contact, Single filament #1156, 12V

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING flasher light

1шт.

4

3112682R1

LENS

rear, amber

1шт.

5

3112683R1

LENS

front, amber

1шт.

6

238-6239

O-RING,0.139" Thk x 3.609" ID, -239, Cl 6, 90 Duro

2шт.

7

493-21046

LOCK WASHER,Int Tooth, 7/16"

WASHER - internal tooth lock, 7/16 inch

1шт.

8

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

9

3118665R2

REFLECTOR

red, round

2шт.

9

1284374C1

REFLECTOR,Reflector Red

red, rectangle

2шт.

10

260-5458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - self-tapping, pan Phillips, No. 10-16 x 1/2 inch

2шт.

11

3125247R3

BRACKET

reflector mounting

2шт.

12

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

2шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

15

3123678R2

HARNESS

fender, right

1шт.

16

1537603C1

HARNESS

fender, left, crown top fenders

1шт.

17

144206A2

HARNESS

ASSEMBLY main cable

1шт.

18

NSS

NOT SOLD SEPARAT

CONDUIT insulated, 318 mm, cut from 1536137C1

1шт.

1536137C1

LOOM,11.5 mm ID, 15.5 mm OD, 635 mm Length

CONDUIT insulated convolute, bulk length, 635 mm

1шт.

19

316433C1

CLAMP

CLIP cable, 0.50 diameter, without ROPS

2шт.

19

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP P-type, cable, with ROPS

6шт.

20

REF

INSTRUCTION

LIGHT head, without bulb, right, See figure 4-016

1шт.

21

REF

INSTRUCTION

LIGHT head, without bulb, left, See figure 4-016

1шт.

22

1537541C1

DIODE

turn signal, rectifier

1шт.
