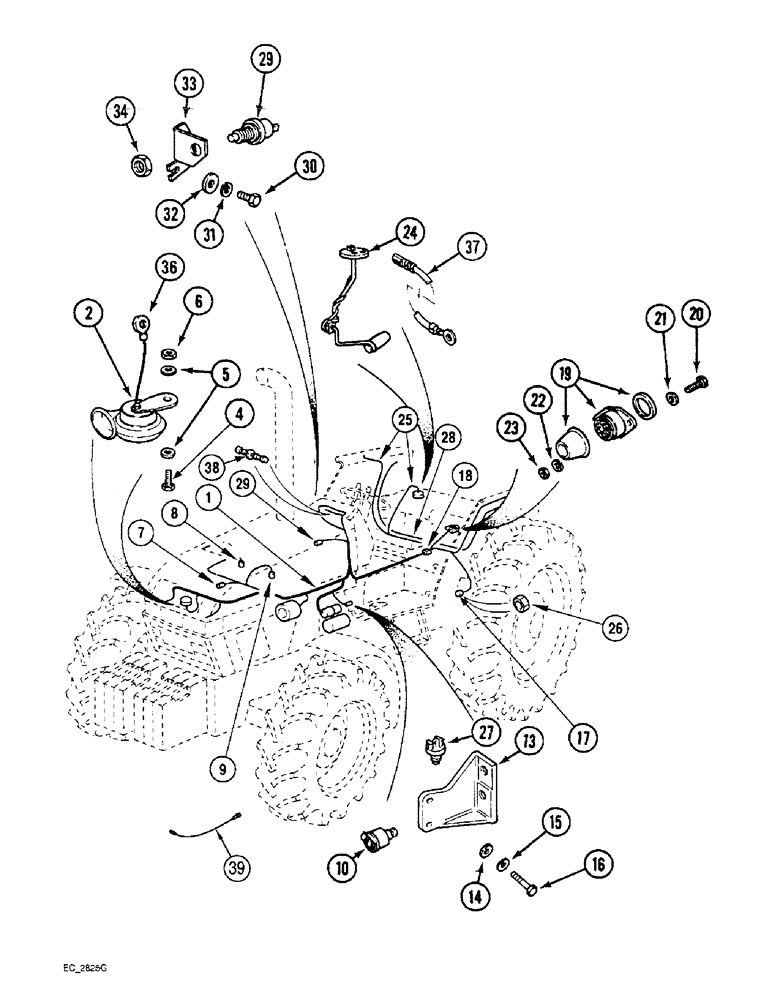

Запчасти Case IH 3230 (4-002) - CHASSIS HARNESS AND SWITCHES, TRACTOR WITHOUT CAB (04) - ELECTRICAL SYSTEMS

1

144206A2

HARNESS

ASSEMBLY main cable

1шт.

2

237582A1

HORN

black

1шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

6

231-1444

NUT,1/4"-20, GB

NUT, 1/4"-20, GB

1шт.

7

3224405R91

RESTRICTION SWITCH

SWITCH air cleaner restriction indicator, See figure 2-022

1шт.

8

3127956R1

TEMPERATURE SENDER

TRANSMITTER water temperature

1шт.

9

91450C1

SWITCH, PRESSURE

SWITCH ASSEMBLY engine oil pressure, on oil filter base

1шт.

10

3114409R92

NEUTRAL START SWITCH

SWITCH plunger

1шт.

13

1536664C1

SUPPORT

BRACKET neutral starting switch

1шт.

14

95-11041

WASHER,3/8"

flat (13/32 x 13/16 x 1/16") 3/8"

2шт.

15

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

2шт.

17

231262A1

SWITCH

plunger, 18 mm

1шт.

18

REF

INSTRUCTION

CABLE MFD solenoid, See figure 4-038

1шт.

19

121645C1

MULTIPOLE CONNECTOR,7 Pin

SOCKET covered, 7 Pin

1шт.

20

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

21

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

22

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

23

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

24

143557A1

SENDER UNIT

TRANSMITTER fuel gauge, Warner

1шт.

25

3123678R2

HARNESS

fender

1шт.

25

1537603C1

HARNESS

fender, left, crown top fenders

1шт.

25

1536337C1

HARNESS

fender

1шт.

25

1537602C1

HARNESS

fender, left, flat top fenders

1шт.

26

1332725C1

NUT

M18

1шт.

27

231261A1

NEUTRAL START SWITCH

SWITCH plunger, 3/4 In NC, 2 speed power shift

1шт.

28

1537163C1

HARNESS

stop and tail light feed

1шт.

29

3147137R1

SWITCH

SWITCH differential lock

1шт.

30

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

31

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

32

95-11041

WASHER,3/8"

flat (13/32 x 13/16 x 1/16") 3/8"

1шт.

33

1332723C2

SUPPORT

BRACKET brake light switch

1шт.

34

1332725C1

NUT

M18

1шт.

36

3117533R1

CABLE

horn

1шт.

37

143556A1

CABLE

, Serial Range: gauge-fender

1шт.

38

1537541C1

DIODE

turn signal, rectifier

1шт.

39

223990A1

ELECTRICAL WIRE

WIRE oil switch extension, if used

1шт.
