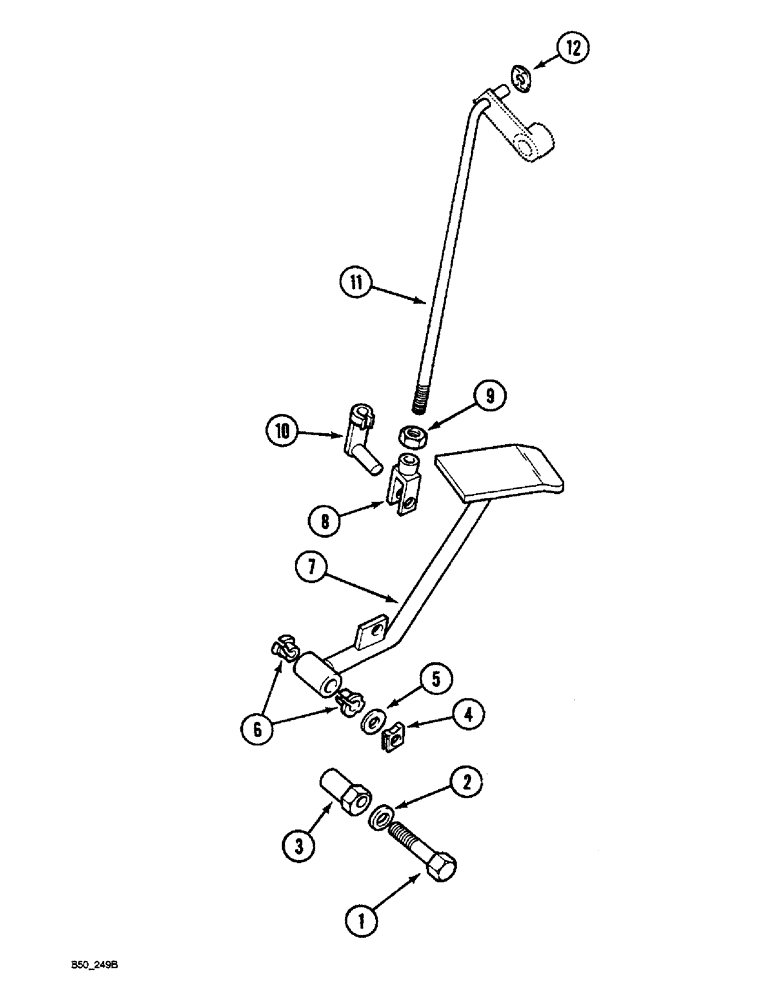

Запчасти Case IH 3230 (3-024) - FOOT ACCELERATOR, TRACTOR WITH CAB (03) - FUEL SYSTEM

2

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

3

3234918R1

LARGE PIN

STOP adjustable

1шт.

4

3234935R1

CLAMP

SPRING clamp

1шт.

5

934065R1

WASHER,M10.5

flat, 10 mm

1шт.

6

3234952R1

BUSHING

foot pedal

2шт.

7

3234937R2

PEDAL ASSY.

PEDAL foot accelerator

1шт.

8

713-126

CLEVIS

6 mm x 24 mm

1шт.

9

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

10

3234936R1

CLEVIS PIN

CLIP clevis

1шт.

11

3234927R2

ROD

operating

1шт.

12

1532536C1

CLIP,ELECTRICAL

CLIP retaining

1шт.

1

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

1шт.
