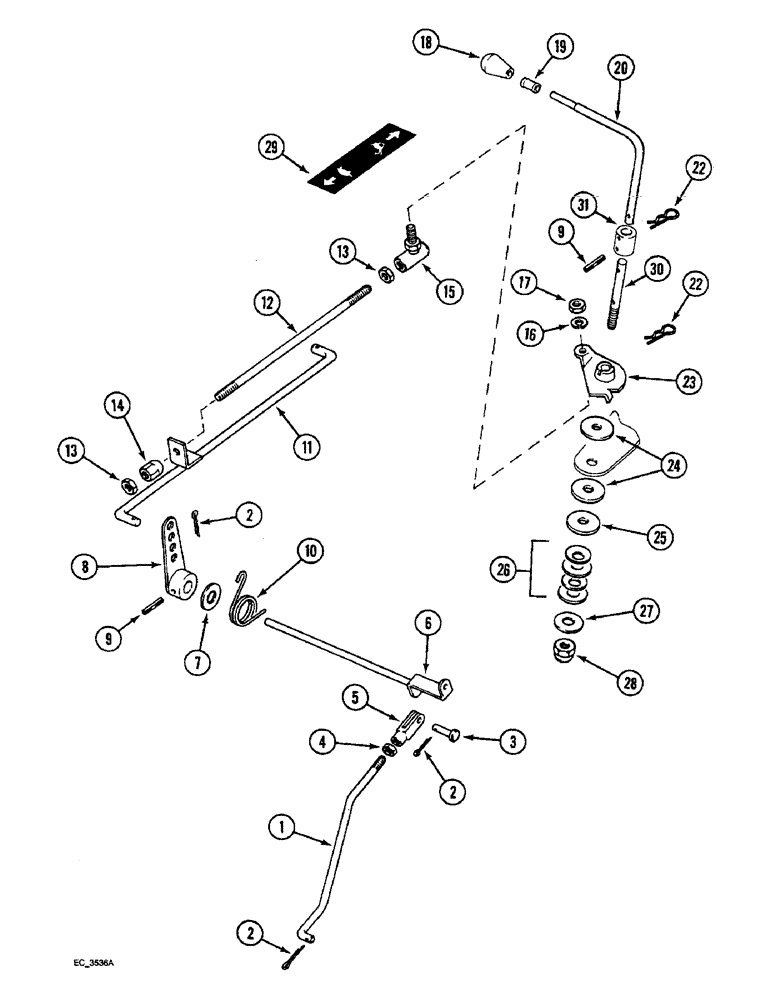

Запчасти Case IH 3230 (3-018) - GOVERNOR CONTROL, TRACTOR WITHOUT CAB (03) - FUEL SYSTEM

1

1332914C2

ROD

front, governor control, 3220

1шт.

1

1332945C1

ROD

front, governor control, 3230

1шт.

2

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

3шт.

3

427-4077

CLEVIS PIN,1/4" x .770"

PIN, CLEVIS, , Hardened 1/4" x .770"

1шт.

4

425-154

JAM NUT,Jam, 1/4"-28, G5

hex, jam, 1/4 inch NF

1шт.

5

213-124

ADJUSTABLE CLEVIS,1/4"-28

CLEVIS - adjustable, 1/4 inch NF

1шт.

6

528325R2

ARM

ASSEMBLY idler

1шт.

7

495-51041

WASHER,3/8"

flat, 13/32 x 47/64 x 1/16 inch

1шт.

7

495-81129

WASHER,13/32" x 3/4" x .120"

flat, 13/32 x 3/4 x 7/64 inch

1шт.

8

539572R3

LEVER ASSY.

LEVER ASSEMBLY idler arm

1шт.

9

38-31014

PIN,5/32" x 7/8", Coiled

2шт.

10

539012R2

SPRING

torsion

1шт.

11

528767R1

ROD ASSY.

ROD pull

1шт.

12

528775R3

ROD

pick-up

1шт.

13

425-154

JAM NUT,Jam, 1/4"-28, G5

hex, jam, 1/4 inch NF

2шт.

14

528776R1

NUT

swivel

1шт.

15

276835R91

BALL JOINT,1/4" - 28 x 1"

JOINT ball, C type, 1/4 inch

1шт.

16

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

17

425-114

NUT,1/4"-28, G5

1шт.

1536683C1

HANDLE GRIP

KNOB ASSEMBLY control handle, Includes Ref. 18 and 19

1шт.

18

NSS

NOT SOLD SEPARAT

KNOB control handle

1шт.

19

1536684C1

SPACER

RING star

1шт.

20

143942A2

LEVER

ROD governor control handle, upper

1шт.

22

198121A1

SPRING CLIP

PIN quick attachable

2шт.

23

528291R3

ARM ASSY.

ARM ASSEMBLY governor control rod

1шт.

24

3123275R1

FRICTION WASHER

DISC friction

2шт.

25

1332789C1

PLATE

friction

1шт.

26

1500778C1

DISC

spring, 24.4 x 12.9 x 0.90 mm

4шт.

27

495-81022

WASHER,17/32" x 1 1/8" x .060"

- flat, 17/32 x 1-1/8 x 1/16 inch

1шт.

28

232-2408

LOCK NUT,1/2"-20, GC

NUT, LOCK, 1/2"-20, GC

1шт.

29

533592R1

PRODUCT GRAPHIC

DECAL governor control

1шт.

30

143939A2

LEVER

ROD lower throttle control

1шт.

31

143941A2

COUPLING

COUPLER rods

1шт.
