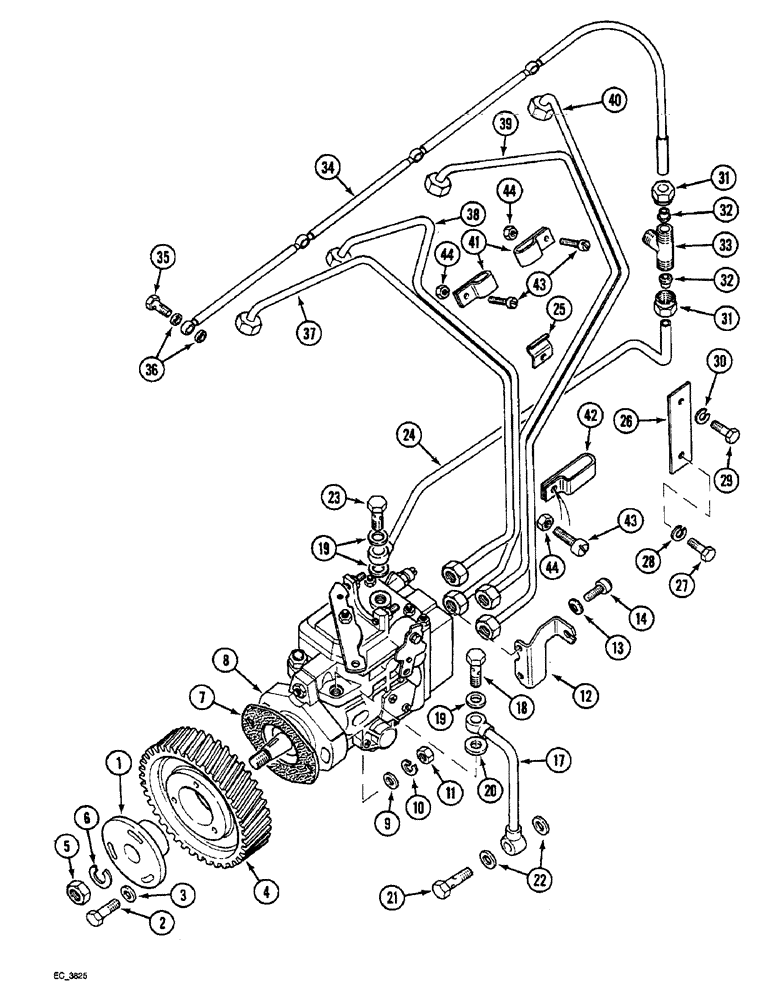

Запчасти Case IH 3230 (3-008) - FUEL INJECTION PUMP AND TUBES, 3230 (03) - FUEL SYSTEM

1

3055067R2

HUB

injection pump gear

1шт.

2

326-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

3шт.

3

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

flat

3шт.

4

3056885R3

PINION

GEAR injection pump

1шт.

5

933981R1

NUT,M12 x 1.75, Cl 5

Hex M12 x 1.75, Cl 5

1шт.

6

892-10012

LOCK WASHER,M12

WASHER lock, 12 mm

1шт.

7

3055384R2

GASKET

fuel injection pump

1шт.

8

1329137C1

PUMP, FUEL INJECTION

PUMP fuel injection

1шт.

1329104C1

PLATE

injection pump, not shown

1шт.

9

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

flat, 5/16 inch

2шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

329-105

NUT,5/16"-18, G8

2шт.

12

3228735R1

SUPPORT

BRACKET support

1шт.

13

905176R1

WAVE WASHER,M6.4 ID x 11 OD x .5 Thk

- spring bent M6.4 ID x 11 OD x .5 Thk

2шт.

14

930679R1

HEX SOC SCREW,M6 x 25mm, Cl 8.8

hex socket, 6 mm - 1.00 x 25 mm, class 8.8

2шт.

17

3132324R1

HOSE,8mm ID x 275mm L

PIPE fuel

1шт.

18

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

SCREW hollow

1шт.

19

E135042

SEALING RING

RING packing, 12 x 15.5 mm

3шт.

20

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

21

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW hollow

1шт.

22

933610R1

SEALING RING,M14 x 18 x 1.8

2шт.

23

3079344R1

BANJO BOLT

SCREW hollow, pump inlet union

1шт.

24

1329112C1

TUBE

PIPE overflow

1шт.

25

3055386R1

CLAMP

CLIP fuel line

2шт.

26

3132174R1

LINK

fuel line clamping

2шт.

27

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

hex, 1/4 NC x 5/8 inch

2шт.

28

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

29

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

30

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

31

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

NUT coupling

2шт.

32

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

compression

2шт.

33

3055739R1

TEE,1/2" - 20 x M14 x 1.5 ORFS x M14 x 1.5 ORFS

tee

1шт.

34

1967074C1

HOSE

line leak

1шт.

35

3218130R1

BANJO BOLT,Hex, M6 x 133.02mm

hollow

4шт.

36

933696R1

SEALING RING,M6 x 10 x 1

RING packing, 6 x 10 mm

8шт.

37

1329150C1

INJECTION PIPE

PIPE injection, No. 1 cylinder

1шт.

38

1329151C1

INJECTION PIPE

PIPE injection, No. 2 cylinder

1шт.

39

1329152C1

INJECTION PIPE

PIPE injection, No. 3 cylinder

1шт.

40

1329153C1

INJECTION PIPE

PIPE injection, No. 4 cylinder

1шт.

41

3132770R1

COLLAR

CLAMP tube

2шт.

42

3132768R1

CLAMP

tube

1шт.

43

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

machine, 6 mm - 1.00 x 12 mm

3шт.

44

825-1406

NUT,M6, Cl 8

3шт.

3079101R1

WOODRUFF KEY

KEY Woodruff

1шт.
