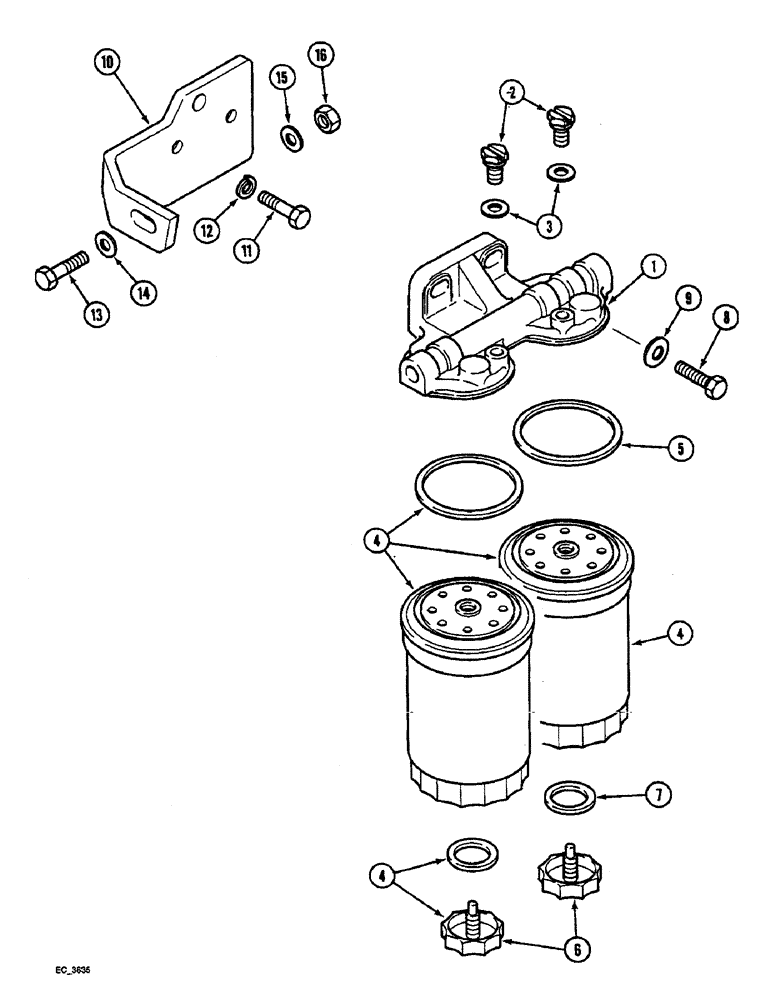

Запчасти Case IH 3230 (3-002) - FUEL FILTER, (3230) (03) - FUEL SYSTEM

3144992R91

FILTER, FUEL

FILTER fuel, Includes Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD filter

1шт.

2

3144780R1

SCREW

air vent

2шт.

3

933696R1

SEALING RING,M6 x 10 x 1

RING packing, 6 x 10 mm

2шт.

4

1967094C1

FUEL FILTER

ELEMENT filter fuel, Includes Ref. 5

2шт.

5

3132193R1

SEALING RING,62.4mm ID x 70mm OD x 4mm Thk

RING packing

1шт.

6

NSS

NOT SOLD SEPARAT

PLUG drain, 9.8 mm, for champion filter, Order 3144992R91

1шт.

6

3228407R1

PLUG

drain, 7.8 mm, Includes Ref. 7

1шт.

7

3144480R1

RING,8.1mm ID x 16mm OD x 2mm Thk

packing, used with 3228407R1

1шт.

8

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

9

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

Saucer M10.2 ID x 20 OD x 1.1 Thk

2шт.

10

1329085C1

SUPPORT

BRACKET fuel filter

1шт.

11

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

12

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

13

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

hex, 5/16 NC x 2-1/2 inch

1шт.

14

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16") M8.2 ID x 16 OD x .9 Thk

1шт.

15

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

flat, 11/32 x 11/16 x 3/32 inch, hardened

1шт.

16

329-105

NUT,5/16"-18, G8

1шт.
