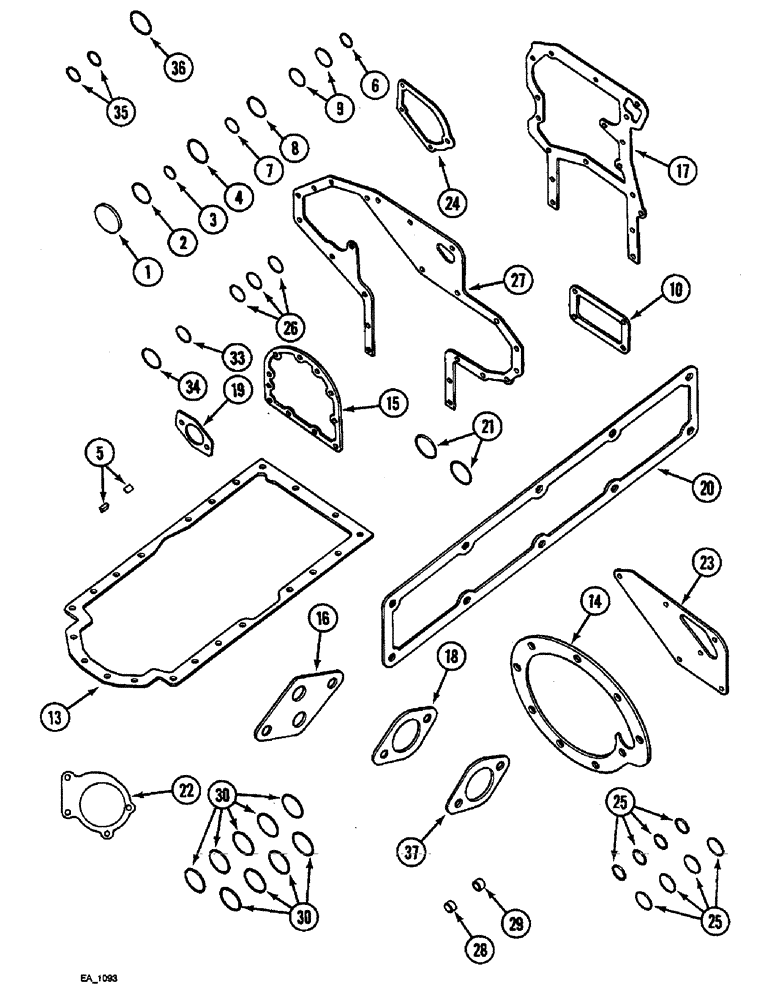

Запчасти Case IH 3230 (2-084) - ENGINE SERVICE KIT, CRANKCASE GASKETS, (3230) (02) - ENGINE

1967011C1

GASKET KIT

KIT service, Includes Ref. 1 - 37

1шт.

1

41-3044

PLUG,Exp, 2 3/4"

1шт.

2

710097R2

SEALING RING,14mm ID x 18mm OD x 1.5mm Thk

Packing M14 x 18 x 1.5

1шт.

3

933087R2

SEALING RING,10mm ID x 13.5mm OD x 1mm Thk

- Packing M10 x 13.5 x 1

1шт.

4

238-6118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

1шт.

5

714868R1

SEALING STRIP

sealing

2шт.

6

717222R1

O-RING

sealing, 11.3 x 16.1 mm

1шт.

7

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

8

3055389R2

O-RING,2.5mm Thk x 32mm ID, 70 Duro

sealing

1шт.

9

3138687R2

SEALING RING,M8 x 11.5 x 1.5

RING sealing, packing

2шт.

10

3138640R2

GASKET,2.5mm Thk

injection pump cover

1шт.

13

3055161R3

OIL PAN GASKET SET

oil pan

1шт.

14

3055177R3

GASKET

water pump

1шт.

15

3055215R3

GASKET

crankcase oil seal retainer

1шт.

16

3055237R2

GASKET

oil filter socket

1шт.

17

3055239R4

GASKET

front plate

1шт.

18

3138639R1

GASKET

breather

1шт.

19

3055384R2

GASKET

fuel injection pump

1шт.

20

3055393R4

GASKET,1.5mm Thk

side cover

1шт.

21

3055952R2

O-RING

RING oil pump sealing

2шт.

22

3055961R2

GASKET

oil pump

1шт.

23

3055999R3

GASKET

water pump carrier

1шт.

24

3132541R2

GASKET

closing cover

1шт.

25

933610R1

SEALING RING,M14 x 18 x 1.8

8шт.

26

E135042

SEALING RING

RING packing, 12 x 15.5 mm

3шт.

27

3055994R3

GASKET

crankcase

1шт.

28

3052295R91

SEAL,6mm ID x 16mm OD x 7mm Thk

SEAL radial seal

1шт.

29

3052295R91

SEAL,6mm ID x 16mm OD x 7mm Thk

SEAL radial seal

1шт.

30

3228577R1

O-RING,3.1mm Thk x 24.5mm ID, Cl 7

oil pump sealing

9шт.

33

933608R1

SEALING RING,M26 x 31 x 2

WASHER, SEALING, M26 x 31 x 2

1шт.

34

713778R1

O-RING,3mm Thk x 55mm ID

55 x 61 mm

1шт.

35

3132869R1

O-RING

sealing

2шт.

36

933155R1

SEALING RING,M16 x 20 x 1.5

1шт.

37

3136406R2

GASKET

oil filler elbow

1шт.
