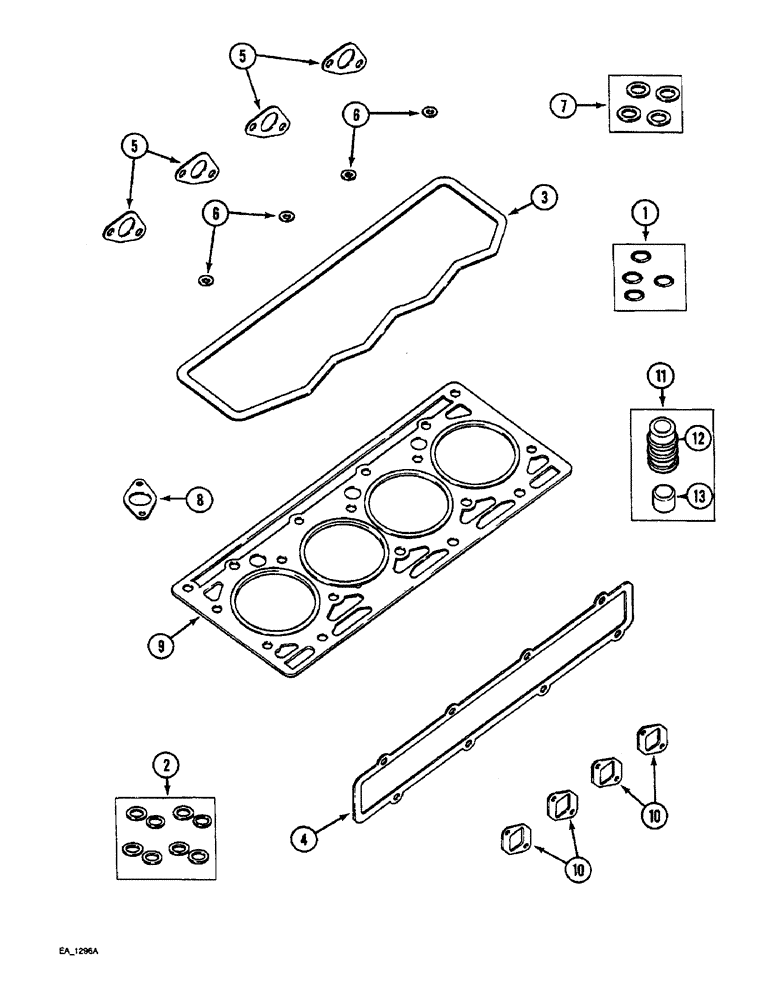

Запчасти Case IH 3230 (2-080) - ENGINE SERVICE KIT, CYLINDER HEAD GASKETS, (3230) (02) - ENGINE

1967014C1

CYLINDER HEAD GASKET

KIT gasket, cylinder head, Includes Ref. 1 - 13

1шт.

1

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

injection nozzle

4шт.

2

3053133R1

SEALING RING,M8 x 11.5 x 1

RING gasket, vent screw

8шт.

3

3138642R2

GASKET

valve cover

1шт.

4

3055398R2

MANIFOLD GASKET

intake manifold, 3230

1шт.

5

3055306R3

GASKET,1.5mm Thk

manifold, water collecting

4шт.

6

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

valve housing cover bolt

4шт.

7

3056941R1

SEALING WASHER,6.5mm ID x 12mm OD x 1mm Thk

RING packing

4шт.

8

3132143R2

GASKET,1mm Thk

water outlet elbow

1шт.

9

3228362R2

CYLINDER HEAD GASKET

GASKET cylinder head

1шт.

10

3132434R1

MANIFOLD GASKET,0.5mm Thk

exhaust manifold

4шт.

11

3218399R91

GASKET KIT

KIT valve stem seal, Includes Ref. 12 and 13

2шт.

12

NSS

NOT SOLD SEPARAT

SEAL valve stem

6шт.

13

NSS

NOT SOLD SEPARAT

SLEEVE valve stem installation

1шт.
