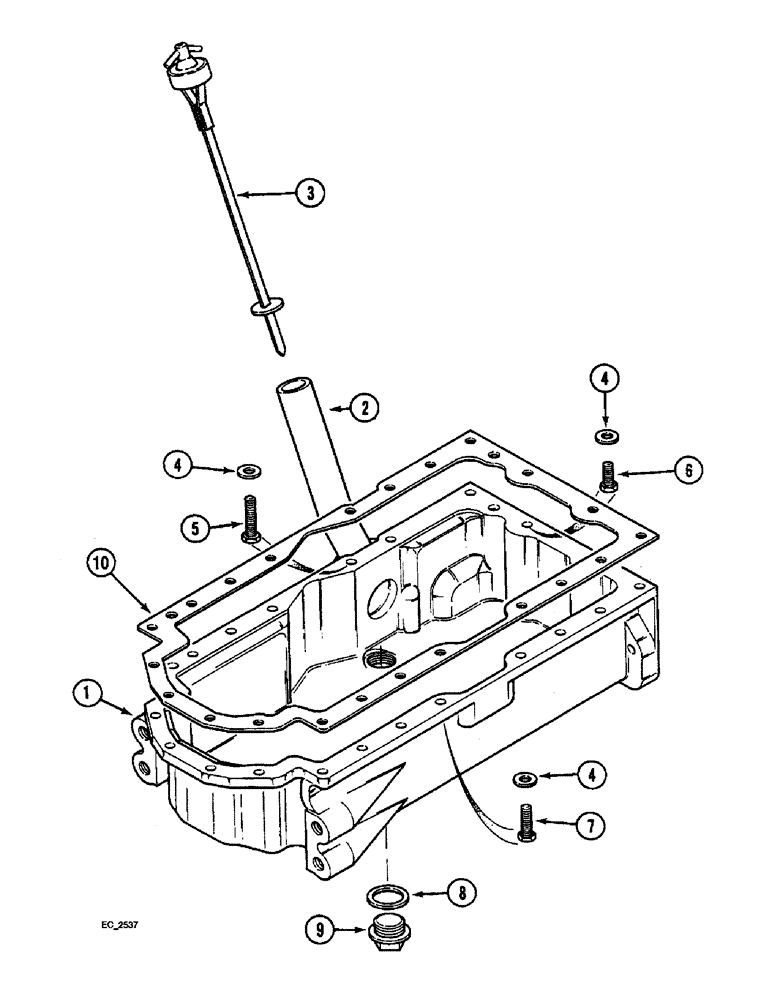

Запчасти Case IH 3230 (2-076) - OIL PAN, (3230) (02) - ENGINE

1

1806777C91

PAN, ENGINE OIL

PAN oil, Includes Ref. 2

1шт.

2

3136241R1

TUBE,29.556 mm OD, 250 mm Length

PIPE oil fill

1шт.

3

1329040C3

DIPSTICK,260mm L

GAUGE oil level

1шт.

4

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

flat, 11/32 x 11/16 x 3/32 inch, hardened

22шт.

5

326-548

BOLT,Hex, 5/16" - 18 x 3", Gr 8

2шт.

6

313-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch grade 8

2шт.

7

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

hex, 5/16 NC x 1-1/8 inch

18шт.

8

933608R1

SEALING RING,M26 x 31 x 2

WASHER, SEALING, M26 x 31 x 2

1шт.

9

3132544R2

PLUG

filler

1шт.

10

3055161R3

OIL PAN GASKET SET

oil pan

1шт.
