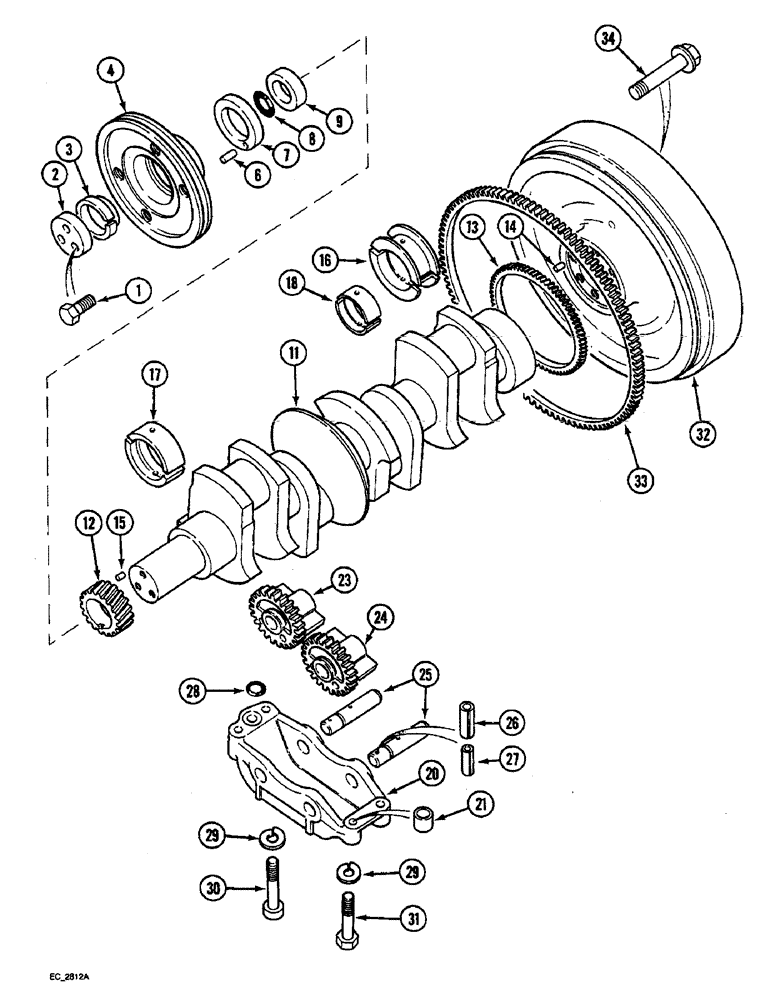

Запчасти Case IH 3230 (2-068) - CRANKSHAFT AND BEARINGS, (3230), CRANKSHAFT BALANCER, FLYWHEEL (02) - ENGINE

1

413-526

BOLT,Hex, 5/16" - 18 x 1-5/8", Gr 5

hex, 5/16 NC x 1-5/8 inch

3шт.

2

3055154R1

WASHER

pressure

1шт.

3

3138874R1

BEARING WASHER

RING clamping

1шт.

4

3138838R3

PULLEY

crankshaft

1шт.

3228133R93

SEAL KIT

KIT service, Includes Ref. 6 - 9

1шт.

6

932681R1

DOWEL,4mm OD x 24mm L

Pin M4 x 24, Oval

1шт.

6

932652R1

DOWEL,4mm OD x 28mm L

PIN dowel, 4 x 28 mm

1шт.

6

932224R1

DOWEL,M4 x 32, Oval

PIN dowel, 4 x 32 mm

1шт.

7

NSS

NOT SOLD SEPARAT

RETAINER distance

1шт.

8

713778R1

O-RING,3mm Thk x 55mm ID

55 x 61 mm

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL radial lip, crankshaft front

1шт.

1329196C1

CRANKSHAFT

standard, Includes Ref. 11 - 18

1шт.

11

NSS

NOT SOLD SEPARAT

CRANKSHAFT standard, Includes Ref. 12 - 15

1шт.

12

3055028R1

PINION

GEAR crankshaft pinion, 33 teeth

1шт.

13

3136237R1

PINION

GEAR balancer drive, 80 teeth

1шт.

14

NLS

NO LONGER SERVICED

PIN dowel, 3/8 x 7/8 inch

1шт.

15

838-5410

LOCK PIN,M4 x 10, Slotted

PIN slotted spring, 4 x 10 mm

1шт.

16

3055129R21

CRANKSHAFT BEARING

BEARING main

1шт.

17

3055130R21

CRANKSHAFT BEARING

BEARING main

4шт.

18

3055351R91

BEARING ASSY

BEARING connecting rod

4шт.

3132895R93

BALANCER

ASSEMBLY crankshaft, Includes Ref. 20 - 27

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING balancer, Includes Ref. 21

1шт.

21

3055174R1

BUSHING

dowel

2шт.

3228373R91

BALANCING WEIGHT

WEIGHT ASSEMBLY balancer, matched set, Includes Ref. 23 and 24

1шт.

23

NSS

NOT SOLD SEPARAT

WEIGHT idler

1шт.

24

NSS

NOT SOLD SEPARAT

WEIGHT

1шт.

25

3132878R11

PIN,23mm OD x 93mm L

SHAFT balancer weight

2шт.

26

38-31012

PIN,3.96mm OD x 19.05mm L, Coiled

2шт.

27

932299R1

LOCK PIN,M2.5 x 20, Slotted

Spring M2.5 x 20, Slotted

2шт.

28

238-6118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

1шт.

29

3218543R1

LOCK WASHER

lock, 7/16 inch

3шт.

30

61-34460

HEX SOC SCREW,7/16"-14 x 3 3/4"

BOLT hex, 7/16 x 3-3/4 inch

1шт.

31

413-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

hex, 7/16 NC x 2 inch

1шт.

31

113-336

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

hex, 7/16 NC x 2-1/4 inch

1шт.

31

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

1шт.

32

1808412C92

FLYWHEEL WITH GEAR

FLYWHEEL complete with ring gear, 12 inch clutch

1шт.

32

3136044R42

FLYWHEEL WITH GEAR

FLYWHEEL complete, 11 inch clutch, Includes Ref. 33

1шт.

33

60883H

RING GEAR

GEAR ring

1шт.

34

3144213R1

BOLT,Hex, 1/2" - 20 x 53mm

Flywheel mounting, Use with 1808412C92

7шт.

34

3218037R1

BOLT,Hex, 1/2" - 20 x 58.5mm

Flywheel, Use with 3136044R42

7шт.
