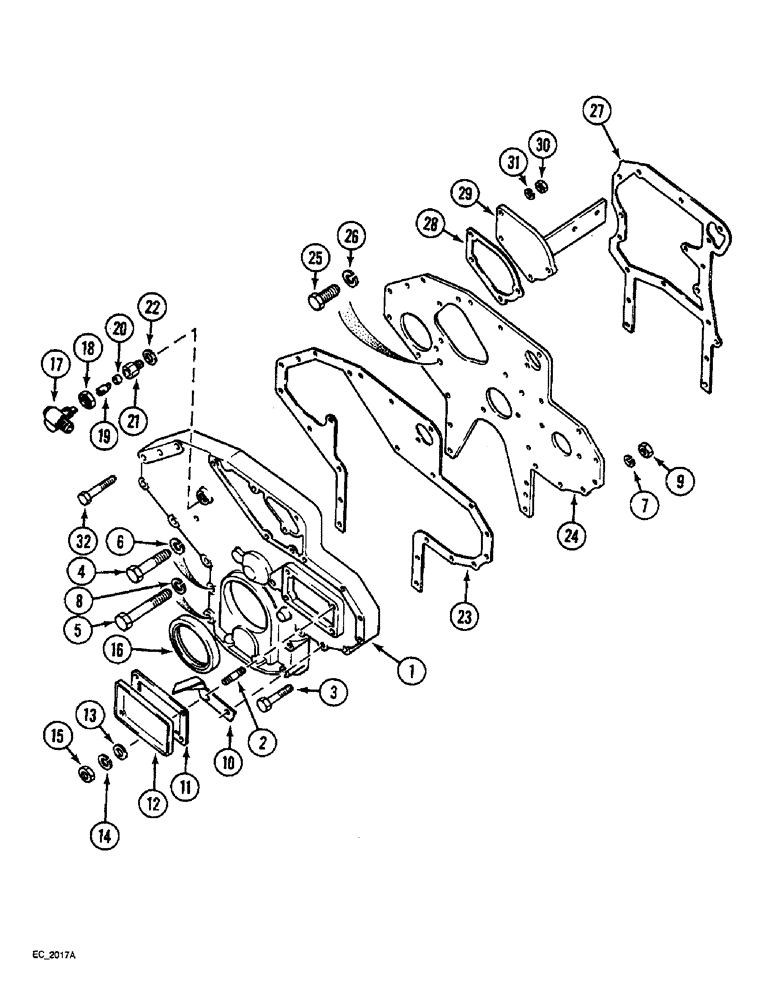

Запчасти Case IH 3230 (2-050) - CYLINDER BLOCK FRONT COVER (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
3136057R14
COVER ASSY
COVER ASSEMBLY cylinder block, Includes Ref. 2
1шт.
2
3055242R1
STUD
front cover
4шт.
3
413-532
BOLT,Hex, 5/16" - 18 x 2", Gr 5
9шт.
4
413-536
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
hex, 5/16 NC x 2-1/4 inch
2шт.
5
413-540
BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5
hex, 5/16 NC x 2-1/2 inch
2шт.
7
3218395R1
BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk
Lock (5/16") M8.2 ID x 16 OD x .9 Thk
6шт.
8
92-11031
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
9
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC
6шт.
10
3136040R21
ADJUSTER
INDICATOR timing
1шт.
11
3138640R1
GASKET
injection pump cover
1шт.
12
3055140R1
COVER
injection pump
1шт.
13
95-81067
WASHER,0.34" ID x 0.56" OD x 0.06" Thk
flat, 11/32 x 9/16 x 1/16 inch
4шт.
15
329-105
NUT,5/16"-18, G8
4шт.
16
3228133R93
SEAL KIT
KIT service
1шт.
17
3055982R93
DRIVE, ANGLE
ELBOW drive angle
1шт.
18
3132116R1
NUT
hex, 18 mm
1шт.
19
3056986R1
SUPPORT
COUPLING drive
1шт.
20
3052295R91
SEAL,6mm ID x 16mm OD x 7mm Thk
SEAL radial seal
1шт.
21
3055983R1
REDUCER FITTING
SPACER drive angle
1шт.
22
3051337R1
SEALING RING,M18 x 24mm OD x 1.5mm Thk
1шт.
23
3055994R3
GASKET
crankcase
1шт.
24
3055996R11
PLATE ASSY.
PLATE ASSEMBLY front cover
1шт.
25
413-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
hex, 5/16 NC x 5/8 inch
7шт.
27
3055239R4
GASKET
front plate
1шт.
28
3132541R2
GASKET
closing cover
1шт.
29
3138776R91
COVER
ASSY with fuel filter bracket, 3220
1шт.
29
3136049R1
COVER ASSY
COVER with fuel filter bracket, 3230
1шт.
30
329-105
NUT,5/16"-18, G8
4шт.
31
92-11031
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
3шт.
31
3218395R1
BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk
Lock (5/16") M8.2 ID x 16 OD x .9 Thk
1шт.
32
413-536
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
hex, 5/16 NC x 2-1/4 inch
4шт.
Выбрано товаров: 34
