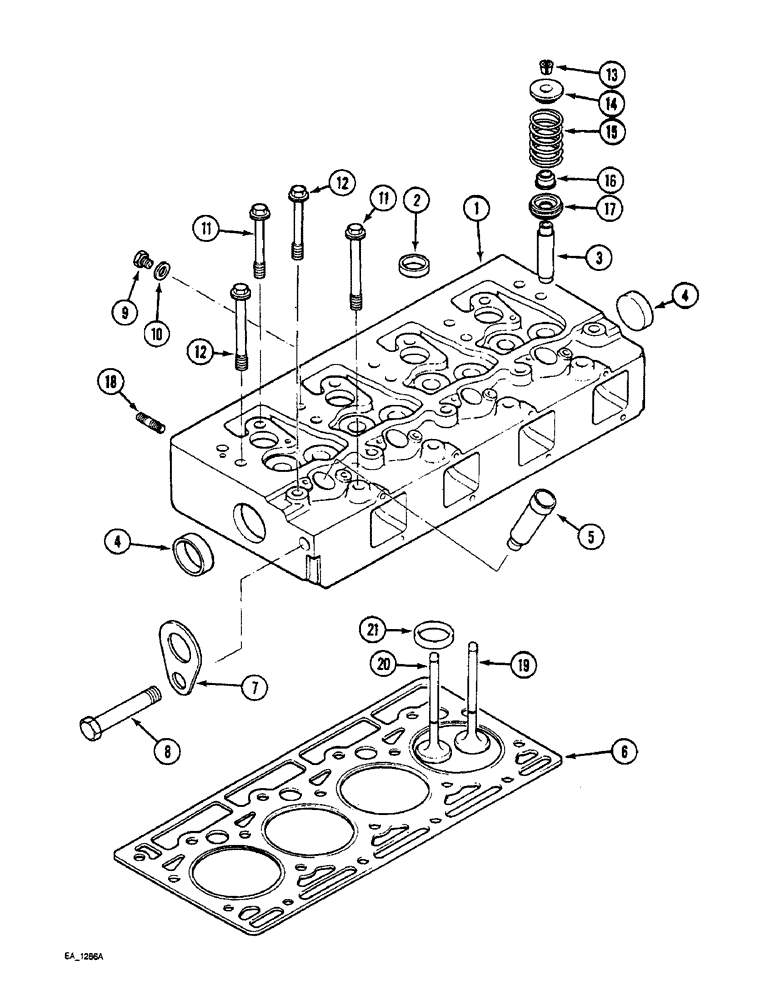

Запчасти Case IH 3230 (2-048) - CYLINDER HEAD, (3230) (02) - ENGINE

1

3055367R97

HEAD (CYLINDER)

HEAD cylinder, Includes Ref. 2 - 5

1шт.

2

30591R1

PLUG,M25, Tapered

tapered cup, 25 mm OD

4шт.

3

129322A1

GUIDE

valve stem

8шт.

4

934003R1

PLUG,M52, Conical

expansion

2шт.

5

3055344R1

SLEEVE

INSERT nozzle holder

4шт.

6

3228362R2

CYLINDER HEAD GASKET

GASKET cylinder head

1шт.

7

3055370R1

STIRRUP

SHACKLE engine mounting

1шт.

8

13-1218

BOLT,Hex, 3/4" - 10 x 1-1/8", Gr 5

1шт.

9

934259R1

PLUG,Hex, M10 x 1

1шт.

10

718743R1

SEALING RING,M10 x 16 x 1

Ring M10 x 16 x 1

1шт.

11

3138747R1

BOLT,Cyl Hd, 9/16" - 12 x 123mm

hex

8шт.

12

3138748R1

BOLT,Flng, 9/16" - 12 x 5-3/4"

BOLT hex

10шт.

13

3055057R91

ROCKER ARM COTTER

LOCK valve spring

16шт.

14

3055058R2

SPRING CUP

CAP valve spring retainer

8шт.

15

3055060R1

SPRING

valve

8шт.

16

3228677R91

SEAL

KIT service

1шт.

17

3055059R91

CAP

ROTATOR valve

8шт.

18

3228189R1

STUD

exhaust manifold, 3/8 x 1-1/2 inch

8шт.

18

3228189R1

STUD

exhaust manifold, 3/8 x 1-1/2 inch

6шт.

18

3228188R1

STUD

exhaust manifold, with coolant filter

2шт.

19

3055055R2

OVERSIZE INLET VALVE

VALVE intake

4шт.

20

3055056R2

STD EXHAUST VALVE

VALVE exhaust

4шт.

21

3132361R1

INSERT

seat, 0.016 inch oversize

1шт.

21

3132362R1

VALVE SEAT

INSERT seat, 0.006 inch oversize

1шт.
