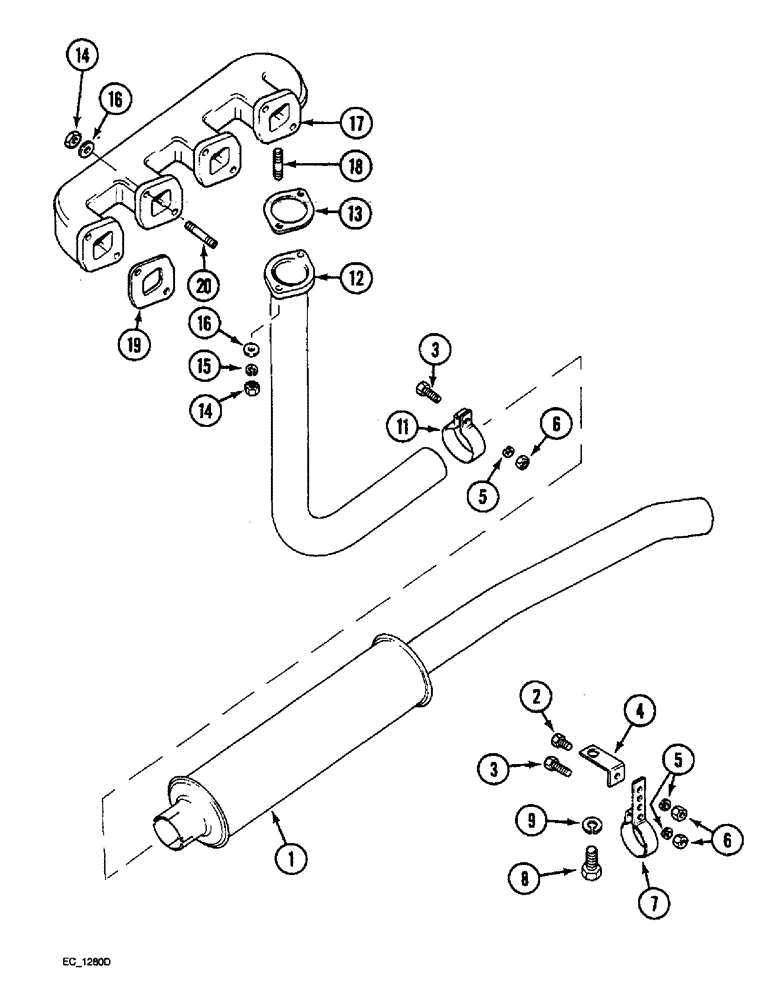

Запчасти Case IH 3230 (2-038) - UNDERSLUNG EXHAUST (02) - ENGINE

1

401489R3

MUFFLER

exhaust

1шт.

2

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

3

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

4

90156C1

GUARD

BRACKET exhaust tail pipe

1шт.

5

492-11038

LOCK WASHER,3/8"

3шт.

6

425-106

NUT,3/8"-16, Cl 5

3шт.

7

90157C1

SUPPORT

tail pipe

1шт.

8

413-1014

BOLT,Hex, 5/8" - 11 x 7/8", Gr 5

1шт.

9

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

11

67672C1

CLAMP

pipe

1шт.

12

82864C1

TUBE,546.5 mm Length

PIPE ASSEMBLY exhaust manifold

1шт.

13

401486R2

MANIFOLD GASKET

exhaust manifold pipe

1шт.

14

425-116

NUT,3/8" - 24, Gr 5

hex, 3/8 inch NF, 3230

10шт.

14

425-116

NUT,3/8" - 24, Gr 5

hex, 3/8 inch NF, 3220

8шт.

15

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

495-81129

WASHER,13/32" x 3/4" x .120"

flat, 13/32 x 3/4 x 7/64 inch, 3230

10шт.

16

495-81129

WASHER,13/32" x 3/4" x .120"

flat, 13/32 x 3/4 x 7/64 inch, 3220

8шт.

17

3055276R12

MANIFOLD ASSY

MANIFOLD exhaust, 3230

1шт.

17

3055124R12

MANIFOLD ASSY

exhaust, 3220

1шт.

18

3228189R1

STUD

exhaust manifold, 3/8 x 1-1/2 inch

2шт.

19

3132434R1

MANIFOLD GASKET,0.5mm Thk

exhaust manifold

3шт.

20

REF

INSTRUCTION

STUD exhaust manifold, See figure 2-046 and 2-048

8шт.
