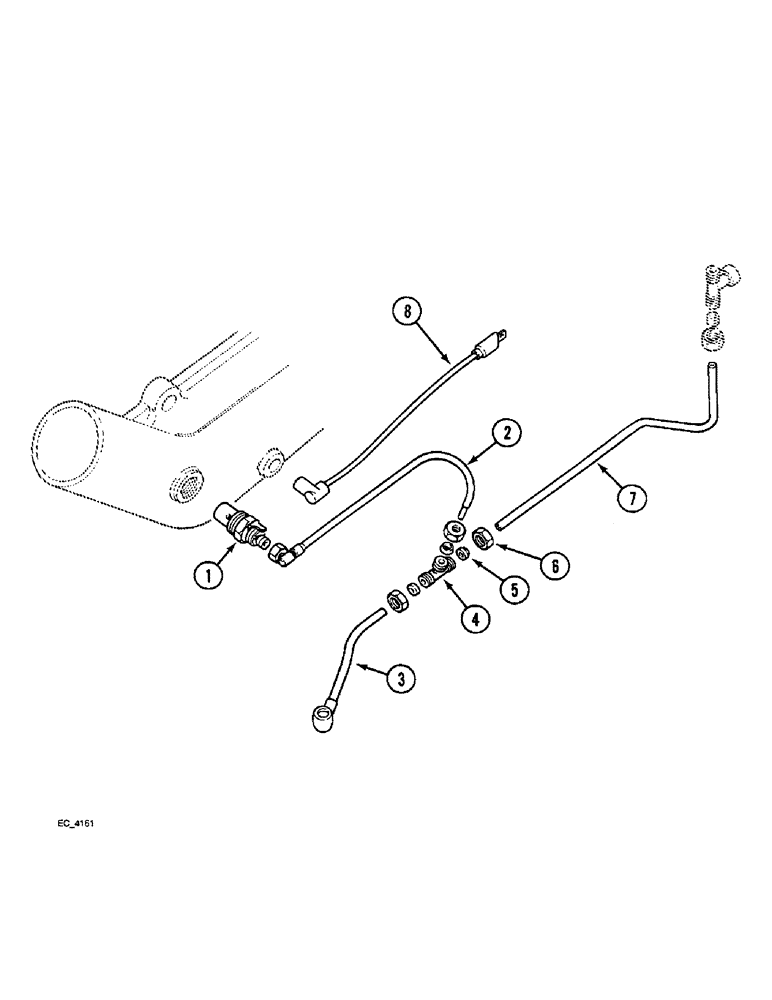

Запчасти Case IH 3230 (2-032) - THERMOSTART ATTACHMENT (02) - ENGINE

1

K928523

GLOW PLUG

PLUG glow, fuel

1шт.

K626957

WASHER

sealing, 7/8 inch, not shown

1шт.

2

3118619R2

PIPE

ASSEMBLY element feed

1шт.

3

1332975C1

PIPE

ASSEMBLY fuel return, front

1шт.

4

3056138R1

TEE,M8 Tube

tee

1шт.

5

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

compression

3шт.

6

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

NUT coupling

3шт.

7

1332990C1

PIPE

fuel return, rear

1шт.

8

1537464C1

ELECTRICAL WIRE

WIRE ether to thermostart conversion

1шт.
