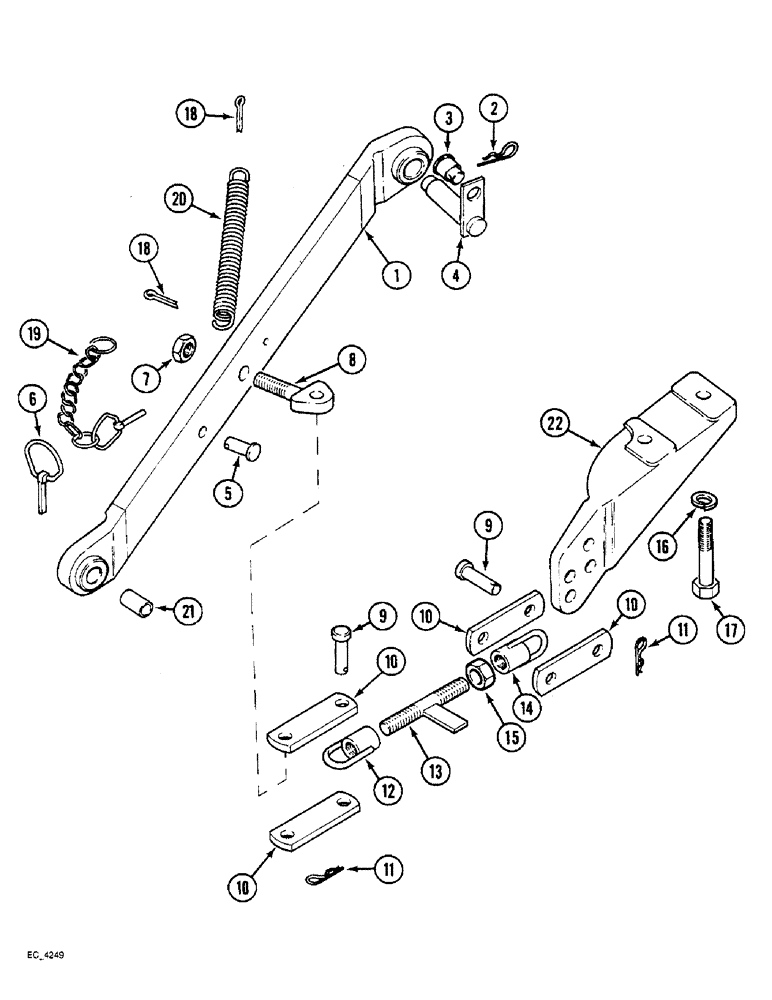

Запчасти Case IH 3230 (9-106) - THREE POINT HITCH, FIXED LOWER LINKS (09) - CHASSIS/ATTACHMENTS

1

124903A1

LOWER LINK

LINK lower, CBM

2шт.

2

538406R1

COTTER PIN

PIN quick attachable

2шт.

3

3118063R2

PIN,28.57mm OD x 48.3mm L

lock

2шт.

4

3118060R1

PIN

lower link

2шт.

5

128717A1

PIVOT PIN

- lift link

2шт.

6

1328218C1

LINCH PIN,11mm OD

- quick attachable

2шт.

134443A1

STABILIZER

CHAIN limiter, outside check, Order components, Includes Ref. 7 - 15

2шт.

7

546248R1

LOCK NUT,7/8"-14, GB

NUT hex lock, 7/8 inch NF

2шт.

8

527985R1

EYEBOLT,Eye, 7/8" - 14 x 1.90"

BOLT eye

2шт.

9

528112R2

PIN,15.77mm OD x 54.61mm L

clevis

4шт.

10

3113594R1

PLATE

STRAP adjusting

4шт.

11

198121A1

SPRING CLIP

PIN quick attachable

4шт.

12

1537495C1

CLEVIS

TURNBUCKLE left

1шт.

13

1537507C1

TRUNNION

SHAFT turnbuckle

1шт.

14

1537504C1

CLEVIS

TURNBUCKLE right

1шт.

15

825-13420

NUT,M20 x 2, Cl 8

hex, 20 mm

1шт.

16

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

17

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

4шт.

18

432-2028

COTTER PIN,5/16" x 1 3/4"

Pin, Split (Cotter), 5/16" x 1 3/4"

4шт.

19

1982152C2

PIN ASSY.

PIN left, link

2шт.

1982023C1

LINCH PIN,10.5mm OD

PIN linch, with chain

1шт.

1982154C2

CHAIN,Assembly, Lift Link

CHAIN klik pin

1шт.

20

1332053C2

SPRING

tension

2шт.

21

119575A1

SPACER

BUSHING category II to I, 35 mm

2шт.

22

529874R1

SUPPORT

BRACKET check chain, right hand

1шт.

22

529875R1

SUPPORT

BRACKET check chain, left hand

1шт.
