Запчасти Case IH 3230 (9-078) - CAB, REAR WINDOW WIPER (09) - CHASSIS/ATTACHMENTS

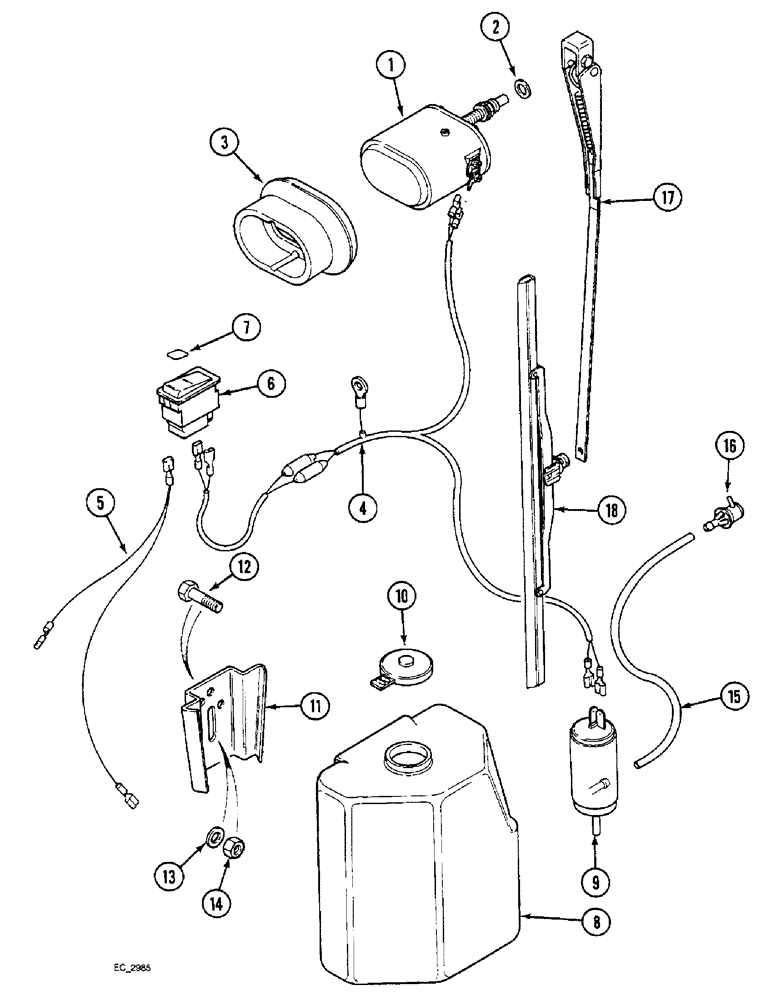

Схема запчастей Case IH 3230 - (9-078) - CAB, REAR WINDOW WIPER (09) - CHASSIS/ATTACHMENTS
4
12
9
5
1
13
8
14
18
7
15
6
11
17
3
2
10
16

Артикул

Название

Примечание

Количество

1328455C1

PACKAGE

KIT field service, rear window wash and wipe, Includes Ref. 1 - 18

1шт.

1

1328456C1

WIPER MOTOR

MOTOR wiper

1шт.

2

934674R1

WASHER,M10.5 x 30 x 2.5

flat, 10.5 x 30 x 2.5 mm

1шт.

3

1328461C1

BOOT

PROTECTOR rubber

1шт.

4

1328459C2

HARNESS

rear wiper

1шт.

5

1328460C2

HARNESS

rear wiper

1шт.

6

245911C1

TOGGLE SWITCH

SWITCH rocker

1шт.

7

1328477C1

LENS

DECAL symbol

1шт.

3227222R91

RESERVOIR

ASSEMBLY window wash liquid, Includes Ref. 8 - 11

1шт.

8

3227041R1

RESERVOIR

window wash liquid

1шт.

9

3227223R1

PUMP

washer, 12 volt

1шт.

10

3227043R1

PLUG

CAP reservoir

1шт.

11

3227039R1

SUPPORT

BRACKET support

1шт.

12

614-5016

BOLT,Hex, M5 x 0.8 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 5 - 0.8 x 16 mm

2шт.

13

934044R1

WASHER,M5.3 ID x 10 OD x 1 Thk

flat, 5 mm

2шт.

14

825-1405

NUT,M5, Cl 8

2шт.

15

P1103643

PIPE

HOSE washer nozzle

1шт.

16

1328463C2

NOZZLE CAP

NOZZLE window wash

1шт.

17

3058769R91

WIPER ARM

ARM wiper

1шт.

18

3058768R92

WIPER BLADE,400mm L

BLADE wiper

1шт.

Выбрано товаров: 20
