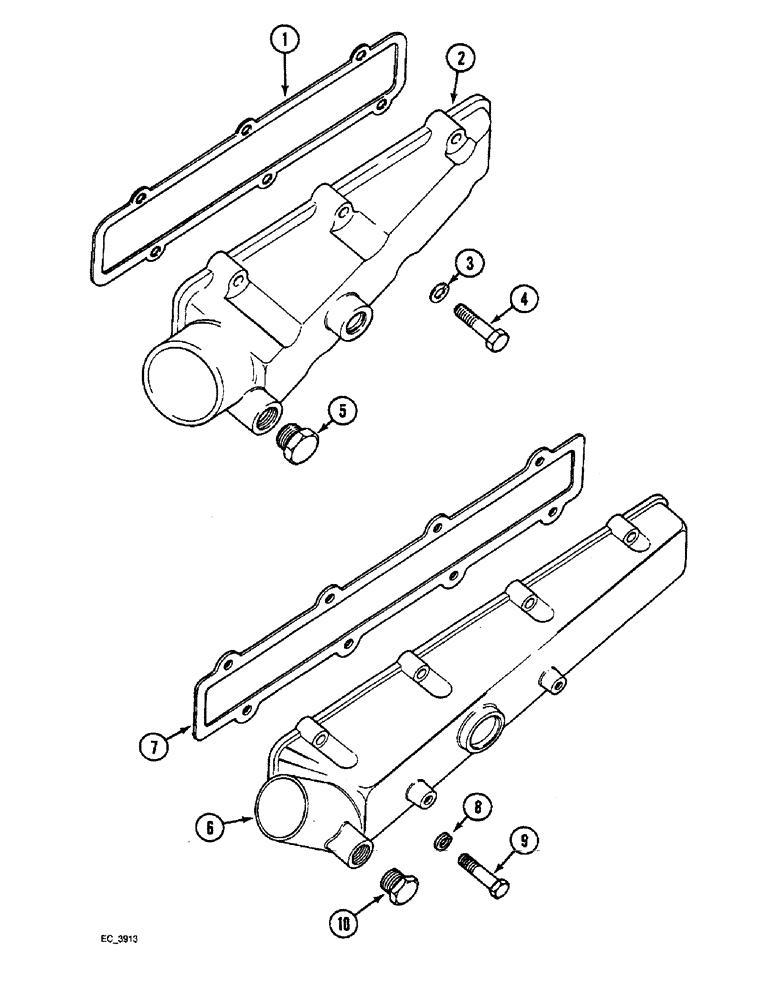

Запчасти Case IH 3230 (2-028) - INTAKE MANIFOLD (02) - ENGINE

1

3055397R4

MANIFOLD GASKET

intake manifold, 3220

1шт.

2

3138824R1

MANIFOLD

intake

1шт.

3

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16") M8.2 ID x 16 OD x .9 Thk

6шт.

4

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

6шт.

5

3136229R1

PLUG,7/8" - 14

closing

1шт.

6

3138825R1

MANIFOLD

intake

1шт.

7

3055398R2

MANIFOLD GASKET

intake manifold, 3230

1шт.

8

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16") M8.2 ID x 16 OD x .9 Thk

8шт.

9

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

8шт.

10

3136229R1

PLUG,7/8" - 14

closing

1шт.
