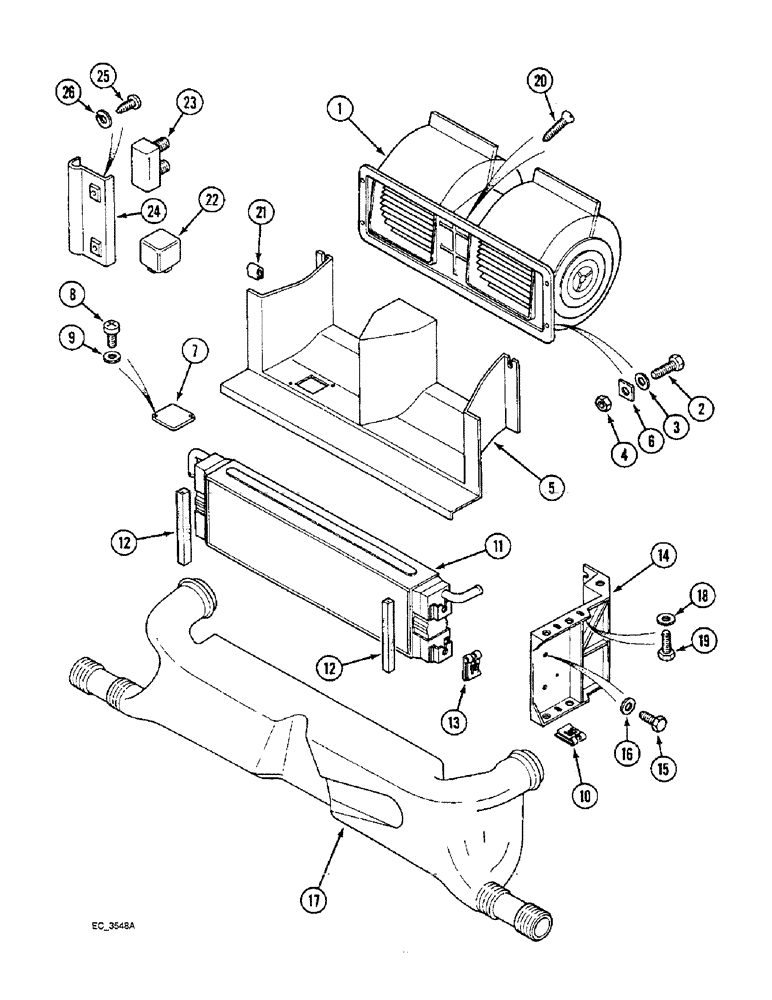

Запчасти Case IH 3230 (9-068) - CAB, HEATER ASSEMBLY (09) - CHASSIS/ATTACHMENTS

3399493R92

HEATER

ASSEMBLY heater, Includes Ref. 1 - 26

1шт.

1

REF

INSTRUCTION

BLOWER cab, air, See figure 9-070

1шт.

2

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

hex, full threads, 6 x 20 mm, class 8

4шт.

3

934753R1

WASHER

flat

4шт.

4

825-1406

NUT,M6, Cl 8

4шт.

5

3233571R1

DEFLECTOR

air

1шт.

6

3402978R1

PLATE

mounting

2шт.

7

1535269C1

COVER

deflector

2шт.

8

905922R1

SCREW,M4 x 8mm

pan, 4 x 8 mm class 4.8

2шт.

9

893-11004

LOCK WASHER,Ext Tooth, M4

2шт.

10

3233707R1

SPRING NUT

spring, push on

2шт.

11

3233586R91

HEAT-EXCHANGER

ELEMENT ASSEMBLY heat exchanger, Includes Ref. 12 and 13

1шт.

12

1283288C1

GASKET

foam

2шт.

13

3233660R1

SPRING NUT

spring, push on

4шт.

14

3233574R1

SUPPORT

right

1шт.

14

3402833R1

SUPPORT

left

1шт.

15

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

4шт.

16

934753R1

WASHER

flat

4шт.

17

3233567R1

MANIFOLD

DEFLECTOR blower

1шт.

18

934753R1

WASHER

flat

4шт.

19

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

20

3404394R1

SCREW

mounting

1шт.

21

3404393R1

CLIP

protection

2шт.

22

1983394C2

RELAY

electrical, 30 amp

2шт.

23

245763C1

CIRCUIT-BREAKER,20A

BREAKER circuit, 20 amp

1шт.

23

403069R1

CIRCUIT-BREAKER,30A

BREAKER circuit, 30 amp, Serial Range: optional-245763C1

1шт.

23

245765C1

CIRCUIT-BREAKER,30A

BREAKER circuit, 30 amp

1шт.

23

403069R1

CIRCUIT-BREAKER,30A

BREAKER circuit, 30 amp, Serial Range: optional-245765C1

1шт.

24

20-1171T1

SUPPORT

BRACKET mounting, circuit breaker, not used with 403069C1

1шт.

25

760-14413

SELF-TAP SCREW,Pan Hd, M4.8 x 13

SCREW, SELF TAPPING, Pan Hd, M4.8 x 13

1шт.

26

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

1шт.
