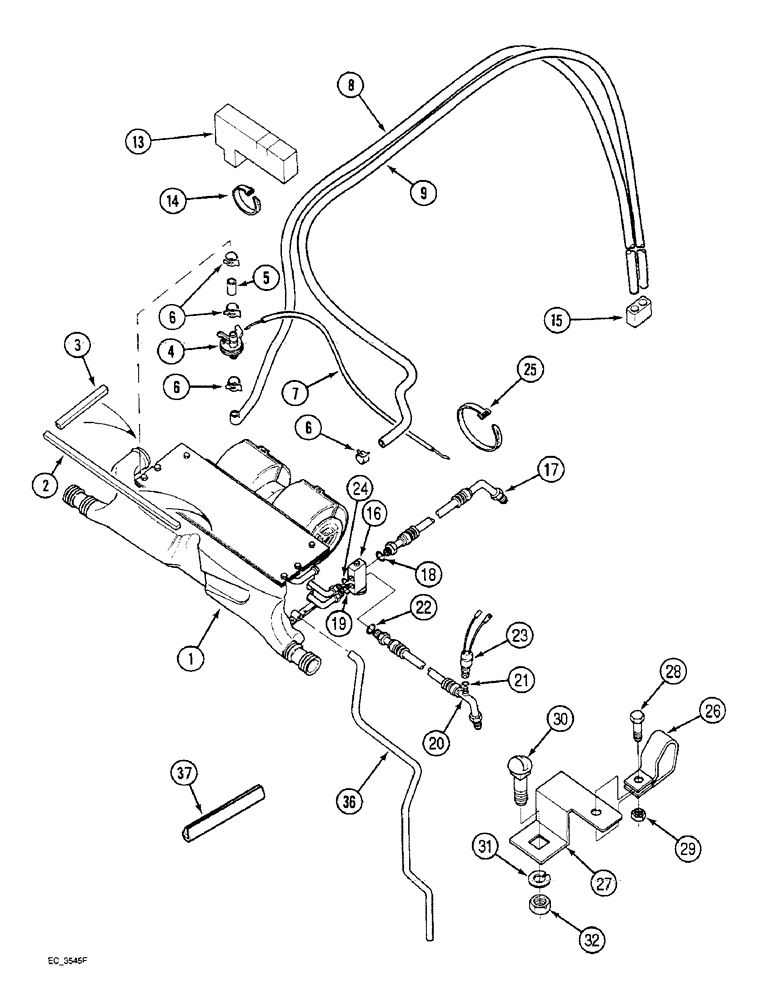

Запчасти Case IH 3230 (9-056) - CAB, AIR CONDITIONING PIPES (09) - CHASSIS/ATTACHMENTS

116702A2

CAB

complete with trim, with air conditioning, Includes Ref. 1 - 37

1шт.

1

REF

INSTRUCTION

BLOWER ASSEMBLY air conditioning, See figure 9-062

1шт.

2

3234097R1

SEALING STRIP

- Blower assy, Front and rear

2шт.

3

3234096R1

SEALING STRIP

blower assembly, side

2шт.

4

3234102R92

VALVE

heater control

1шт.

5

NSS

NOT SOLD SEPARAT

HOSE flexible, 40 mm, Order 1 x 97252CX and, Serial Range: cut-length

1шт.

97252CX

HOSE

bulk, 5/8 (16) x 1 (25) x 600 inch, 15240 mm, long

1шт.

6

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, #24

4шт.

7

3234197R1

CABLE

operating, See figure 9-060

1шт.

8

3234103R2

HEATER HOSE,15.50 mm ID x 3000.00 mm

HOSE , Heating Water Supply 15.50 mm ID x 3000.00 mm

1шт.

9

3234104R2

HEATER HOSE,15.50 mm ID x 3340.00 mm

HOSE , Water Return 15.50 mm ID x 3340.00 mm

1шт.

13

3234122R1

SEALING STRIP

SEAL hoses

2шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

1шт.

15

1259764C1

BACK-UP RING

STRIP filling

1шт.

16

1990756C2

VALVE

expansion, compatible with R12 and 134A

1шт.

17

124974A1

HOSE

expansion valve to cab base, Includes Ref. 17

1шт.

18

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

ID 7.65 mm

1шт.

19

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

14.0 mm ID

1шт.

20

124978A1

HOSE

cab suction, Includes Ref. 21 and 22

1шт.

21

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

ID 7.65 mm

1шт.

22

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

14.0 mm ID

1шт.

23

122579A1

SWITCH, A/C LOW PRES

SWITCH - low pressure

1шт.

24

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

10.82 mm ID

1шт.

25

P136922

CLAMP

STRAP tie, hose

5шт.

26

143434A2

CLAMP

hose

1шт.

27

141532A2

SUPPORT

BRACKET air conditioning coupling

1шт.

28

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

hex, full threads, 12 - 1.75 x 25 mm

1шт.

29

825-51412

FLANGE NUT,M12, Flg Ser

1шт.

30

811-16040

CARRIAGE BOLT,Sht Sq Nk, M16 x 2 x 40mm, Cl 8.8

BOLT carriage, 16 - 2.0 x 40 mm

1шт.

31

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER lock, 16 mm

1шт.

32

829-1316

NUT,M16, Cl 10

hex, 16 mm - 2.0, class 10

1шт.

36

1339259C1

PIPE

TUBE condensation drain

2шт.

37

181430A1

SEAL PROTECTION

edge protection, 90 mm, Order 180322A1 and, Serial Range: cut-length

1шт.

180322A1

SEAL PROTECTION

edge protection, 380 mm

1шт.
