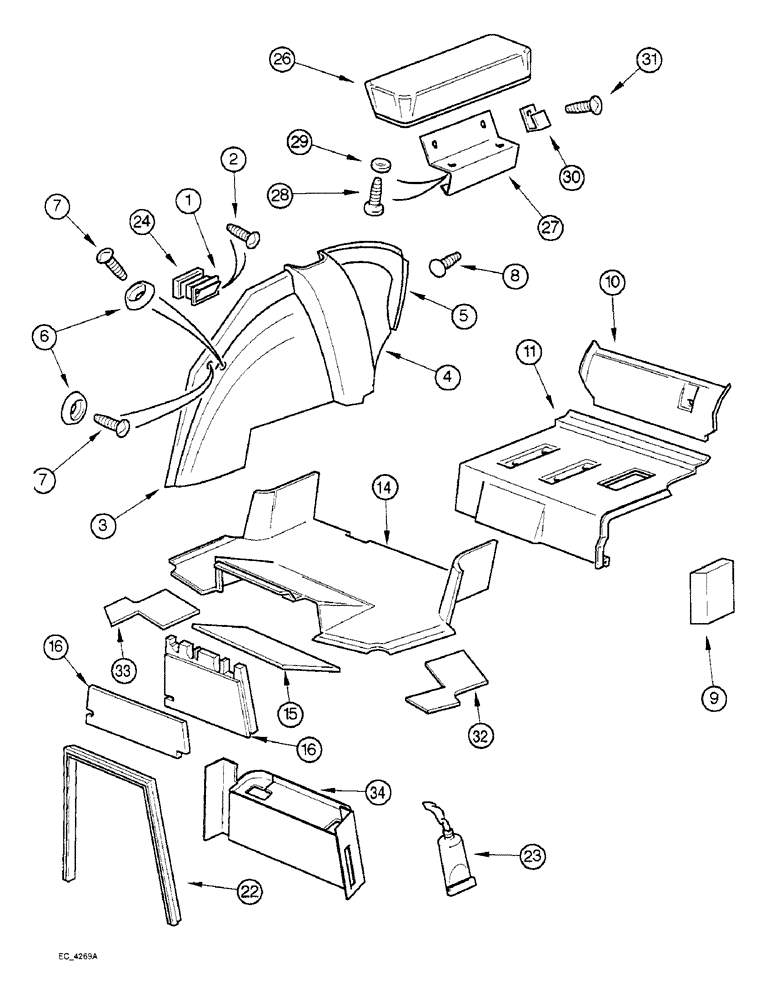

Запчасти Case IH 3230 (9-052) - CAB, OPERATORS COMPARTMENT COVERING (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
116702A2
CAB
complete with trim, with air conditioning
1шт.
116773A1
CAB
complete with trim, without air conditioning, Includes Ref. 1 - 9
1шт.
1
3399810R1
ASH TRAY
ASHTRAY
1шт.
2
3233378R1
SELF-TAP SCREW,Oval Hd, M4.2 x 19
SCREW tapping oval cross recess, 4.2 x 19 mm
2шт.
3
133005A1
PADDING
LINING wheel housing, front left
1шт.
3
133006A1
PADDING
LINING wheel housing, front right
1шт.
4
133007A1
PADDING
LINING wheel housing, center left
1шт.
4
133008A1
PADDING
LINING wheel housing, center right
1шт.
5
3404186R3
PADDING
LINING wheel housing, rear left
1шт.
5
1404187R3
LINING wheel housing, rear right
1шт.
6
3234052R1
WASHER
cup, 6 mm
1шт.
7
3233378R1
SELF-TAP SCREW,Oval Hd, M4.2 x 19
SCREW tapping oval cross recess, 4.2 x 19 mm
1шт.
8
3404464R1
PLUG
rubber
4шт.
9
1502281C1
INSULATOR
"B" post
2шт.
10
3234959R2
PADDING
INSULATOR rear cover
1шт.
11
116417A2
FLOOR MAT
MAT seat deck
1шт.
14
116419A2
FLOOR MAT
MAT seat deck front
1шт.
15
3404658R1
INSULATOR
SHEET insulation
1шт.
16
1534524C1
INSULATOR
bulkhead
1шт.
16
196789A1
PADDING
INSULATOR bulkhead, optional
1шт.
22
3401114R1
SEAL
front, steering support
1шт.
23
B17576
GASKET MAKER FLUID
SEALANT gasket, RTV No. 595, clear, 300 ml tube
1шт.
24
3404370R1
SPACER
ashtray
1шт.
26
133012A1
ARMREST
left
1шт.
26
133013A1
ARMREST
right, Includes Ref. 27 - 31
1шт.
27
1500435C1
SUPPORT
BRACKET support
1шт.
28
1500436C1
SCREW,Cross Rec Pan Hd, M6 x 20mm
pan head cross recess
2шт.
29
896-11006
WASHER,6.6mm ID x 12.5mm OD x 2mm Thk
flat, 6.6 x 12.5 x 2 mm, hardened
2шт.
30
3234432R1
SPRING NUT
hex, 1/4 inch
2шт.
31
905997R1
SELF-TAP SCREW,Pan Hd, M6.3 x 22
SCREW pan head, tapping, 6.3 x 22 mm
2шт.
32
3405015R1
MAT
SHEET insulation, left
1шт.
33
82086C1
LARGE PLATE
SHEET insulation, right
1шт.
34
222922A2
PADDING
INSULATOR bulkhead
1шт.
Выбрано товаров: 33
