(2-024) - AIR CLEANER, COOPERS WITH SAFETY ELEMENT, (3230)

Запчасти Case IH 3230 (2-024) - AIR CLEANER, COOPERS WITH SAFETY ELEMENT, (3230) (02) - ENGINE

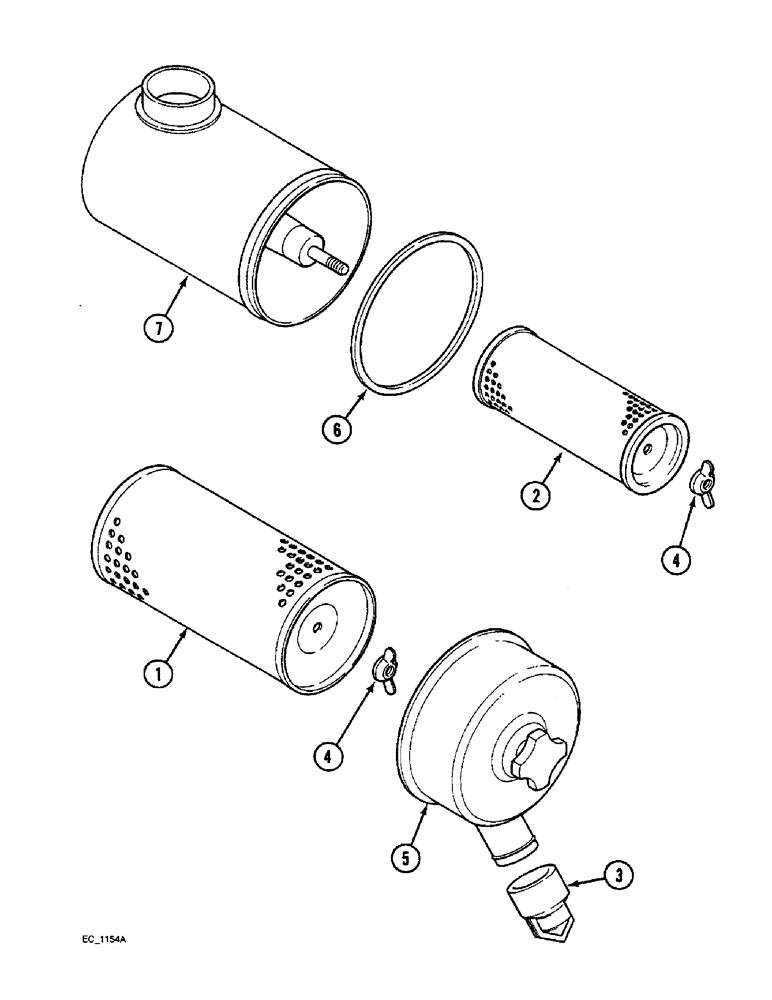

Схема запчастей Case IH 3230 - (2-024) - AIR CLEANER, COOPERS WITH SAFETY ELEMENT, (3230) (02) - ENGINE
4
7
5
4
1
3
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

84490C91

AIR CLEANER

CLEANER ASSEMBLY air, 8 inch, Includes Ref. 1 - 7

1шт.

1

3125342R2

AIR FILTER

ELEMENT primary

1шт.

2

3125255R1

AIR FILTER

ELEMENT secondary

1шт.

3

3124432R1

DUST VALVE

unloader

1шт.

4

3124435R1

NUT

NUT wing

2шт.

5

3125790R1

COVER ASSY

COVER air cleaner

1шт.

6

1265236C1

GASKET

1шт.

7

NSS

NOT SOLD SEPARAT

BODY air cleaner

1шт.
