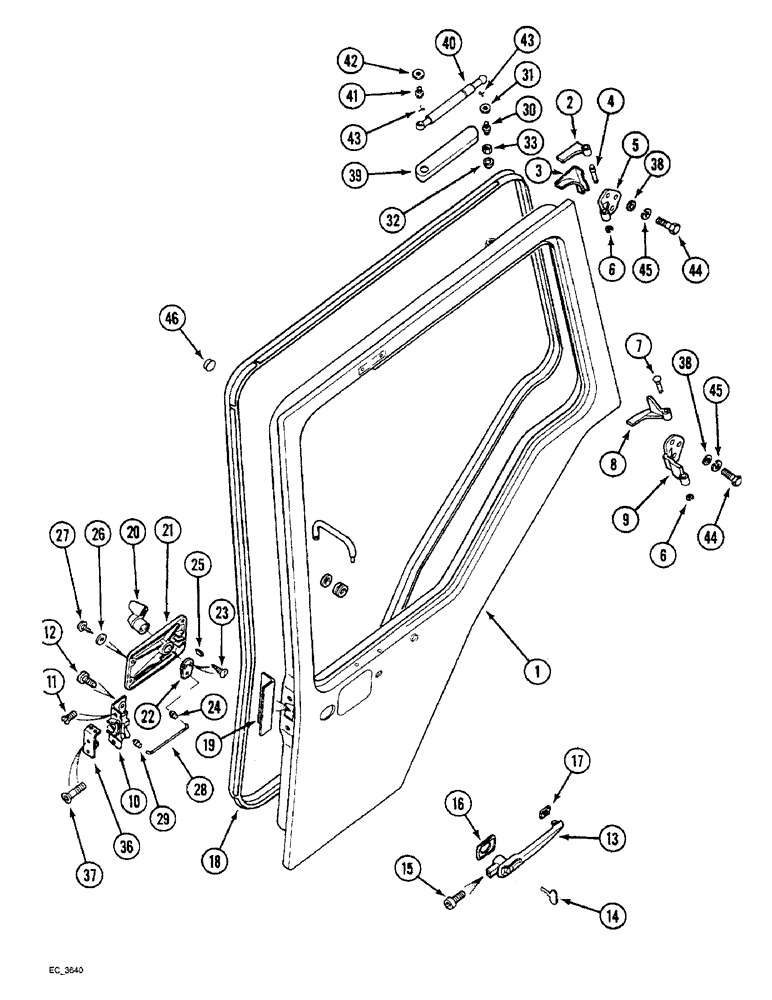

Запчасти Case IH 3230 (9-034) - CAB, DOORS (09) - CHASSIS/ATTACHMENTS

116702A2

CAB

complete with trim, with air conditioning

1шт.

116773A1

CAB

complete with trim, without air conditioning, Includes Ref. 1 - 27

1шт.

1330714C94

DOOR ASSY.

DOOR ASSEMBLY left, black and red

1шт.

1535542C1

DOOR ASSY.

DOOR ASSEMBLY left, black

1шт.

1330729C94

DOOR ASSY.

DOOR ASSEMBLY right, black and red

1шт.

3405449R95

DOOR ASSY.

DOOR ASSEMBLY right, black, Includes Ref. 1 - 27

1шт.

1

1535538C1

DOOR

left, black and red

1шт.

1

3234023R92

DOOR

left, black

1шт.

1

1535539C1

DOOR

right, black and red

1шт.

1

3234024R92

DOOR

right, black, Includes Ref. 2 - 9

1шт.

2

3234116R1

HINGE

leaf, left

1шт.

2

3234117R1

HINGE

leaf, right

1шт.

3

3399440R1

SUPPORT

upper, left

1шт.

3

3399441R1

SUPPORT

upper, right

1шт.

4

3234076R1

PIN,8mm OD x 47mm L

lower hinge

1шт.

5

3234093R1

HINGE

leaf, left

1шт.

5

3234094R1

HINGE

leaf, right

1шт.

6

800-318

RING,M8 x 0.9mm Thk, Ext

RING retaining

2шт.

7

3234076R1

PIN,8mm OD x 47mm L

lower hinge

1шт.

8

3234112R1

HINGE

lower, left

1шт.

8

3234113R1

HINGE

lower, right

1шт.

9

3234074R1

HINGE

leaf, left

1шт.

9

3234075R1

HINGE

leaf, right

1шт.

10

3234131R1

LOCK

left

1шт.

10

3234132R1

LOCK

right

1шт.

11

843-2612

SCREW,Flat , M6 x 16.3mm OAL, Cl 4.8

countersunk, cross recess, 6 x 12 mm

2шт.

12

540-715

SCREW,Cross Pan Hd, M6 x 12, 8.8

pan head, 6 x 12 mm, class 8

1шт.

13

3232990R1

HANDLE

outer, right

1шт.

13

3405050R91

HANDLE

outer, left, Includes Ref. 14

1шт.

14

3405054R1

KEY

lock

1шт.

15

865-6012

HEX SOC SCREW,M6 x 12mm, Cl 8.8

SCREW, Hex Soc Hd, M6 x 12, 8.8

1шт.

16

3233611R1

DUST CAP

PLATE plastic

1шт.

17

3233622R1

PLASTIC PLATE

PLATE plastic

1шт.

18

1332310C1

DOOR SEAL,4345mm L

SEAL door

1шт.

19

1332278C1

ANGLE

iron, used with seal 1332310C1

1шт.

98036C91

LEVER

HANDLE inner, left

1шт.

98037C91

LEVER

HANDLE inner, right, Includes Ref. 20 - 25

1шт.

20

3234326R1

HANDLE

inner

1шт.

21

3234133R2

BASE

PLATE handle base

1шт.

22

3234128R1

LEVER

ARM actuating

1шт.

23

20775R1

SELF-TAP SCREW,Slotted Pan Hd, M4.2 x 13

SCREW tapping, 4.2 x 13 mm

1шт.

24

3234129R1

CLIP

handle

1шт.

25

3401144R1

STOP

handle base

1шт.

26

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

27

760-14416

SELF-TAP SCREW,Pan Hd, M4.8 x 16

SCREW pan head, 4.8 x 16 mm

4шт.

REF

INSTRUCTION

DOOR ASSEMBLY left

1шт.

REF

INSTRUCTION

DOOR ASSEMBLY right, Includes Ref. 28 - 33

1шт.

28

3234130R1

ROD

operating

1шт.

29

3234129R1

CLIP

handle

1шт.

30

3234063R1

BALL STUD,M10 x 1.5

STUD ball, 13 mm diameter

1шт.

31

892-11010

LOCK WASHER,M10

1шт.

32

3221520R1

CAP

PLUG cap, 10 mm

1шт.

33

825-1410

NUT,M10, Cl 8

1шт.

36

3234105R1

CATCH

left door

1шт.

36

3234106R1

CATCH

right door

1шт.

37

931860R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 20mm, Cl 8.8

countersunk, 8 x 20 mm

4шт.

38

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

12шт.

39

3399427R1

PROTECTOR

left door

1шт.

39

3399428R1

PROTECTOR

right door

1шт.

40

3232937R1

CYLINDER, GAS

STRUT gas filled

2шт.

41

3234063R1

BALL STUD,M10 x 1.5

STUD ball, 13 mm diameter

2шт.

42

892-11010

LOCK WASHER,M10

2шт.

43

3233348R1

CLIP

retaining

4шт.

44

626-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

hex, full threads, 8 - 1.25 x 25 mm, class 10.9

12шт.

45

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

12шт.

46

3150667R1

PLUG

door frame

2шт.
