(9-028) - CAB MOUNTINGS, ISO-MOUNTS

Запчасти Case IH 3230 (9-028) - CAB MOUNTINGS, ISO-MOUNTS (09) - CHASSIS/ATTACHMENTS

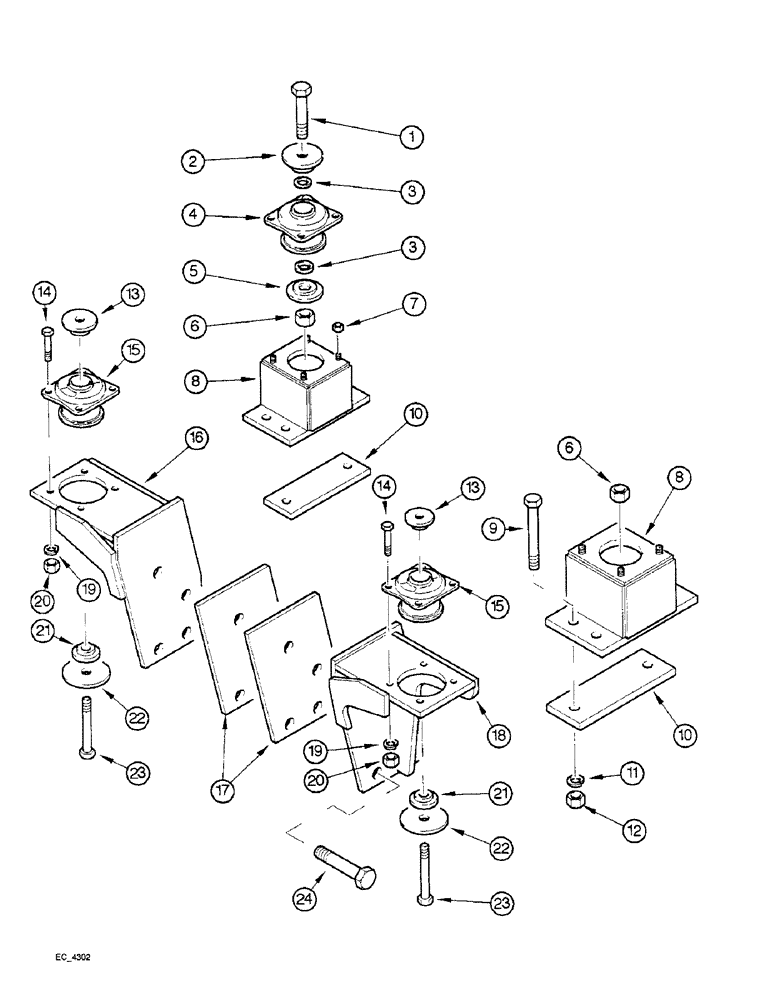

Схема запчастей Case IH 3230 - (9-028) - CAB MOUNTINGS, ISO-MOUNTS (09) - CHASSIS/ATTACHMENTS
19
22
18
3
24
7
10
8
9
22
20
13
17
21
6
11
1
2
21
4
16
15
12
3
23
8
5
6
19
10
23
14
13
15
20
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

426-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

hex, 5/8 NC x 4-1/2 inch, G8, rear

2шт.

2

3116801R1

CUP WASHER

WASHER cone, rear

2шт.

3

3048473R2

WASHER

centralizing, rear

2шт.

4

1533773C1

DAMPER

MOUNTING rubber, rear

2шт.

5

3116148R1

WASHER

rebound, rear

2шт.

6

3100765R2

LOCK NUT

hex, 5/8 inch NC, rear

2шт.

7

825-1410

NUT,M10, Cl 8

Rear M10, Cl 8

8шт.

8

91863C2

SUPPORT ASSY.

SUPPORT ASSEMBLY rear isomount

2шт.

9

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

hex, 5/8 NC x 8 inch, rear

4шт.

10

1500903C3

PLATE

front axle mounting, rear

2шт.

11

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Rear 5/8"

4шт.

12

425-1010

NUT,5/8"-11, G5

Rear 5/8"-11, G5

4шт.

13

1537383C1

CUP WASHER

mounting upper, front

2шт.

14

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

Front Hex, M10 x 25, 8.8, Full Thd

8шт.

15

1537382C1

SILENTBLOC

MOUNTING cab front

2шт.

16

1537158C2

SUPPORT

BRACKET ASSEMBLY front right

1шт.

17

3129865R2

SPACER

mounting bracket, front

2шт.

18

1537155C2

SUPPORT

BRACKET ASSEMBLY front left

1шт.

19

892-11010

LOCK WASHER,M10

Front M10

8шт.

20

825-1410

NUT,M10, Cl 8

Front M10, Cl 8

8шт.

21

1537191C1

WASHER

mounting lower, front

2шт.

22

1537176C1

WASHER

rebound, front

2шт.

23

827-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 10.9

hex, 12 - 1.75 x 20 mm, 10.9, Front

2шт.

24

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, grade 8, front

8шт.
