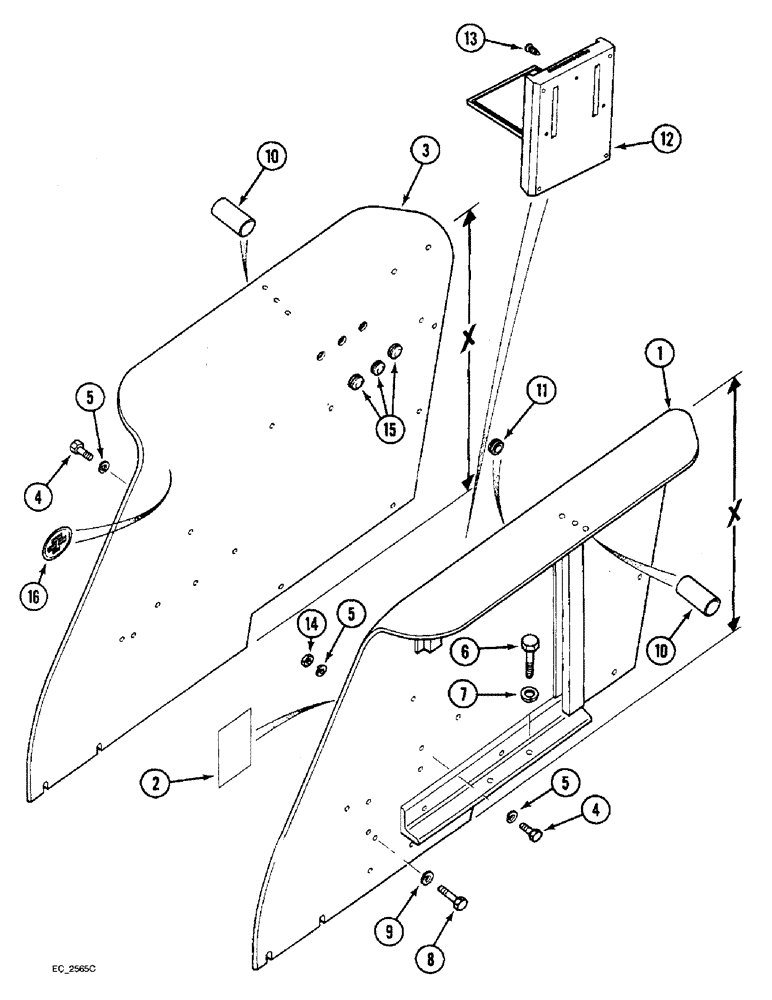

Запчасти Case IH 3230 (9-020) - REAR FENDERS, CROWN TOP (09) - CHASSIS/ATTACHMENTS

1

538639R6

FENDER ASSY.

FENDER ASSY Lo-Crown, left with decal, Dimension X : 805 mm

1шт.

1

538641R7

FENDER ASSY.

FENDER ASSY Hi-Crown left with decal, Dimension X : 848 mm

1шт.

2

321-6771

DECAL

warning, operating instructions

1шт.

3

530002R7

FENDER ASSY.

FENDER ASSEMBLY Lo-Crown, right, Dimension X : 805 mm

1шт.

3

136165A1

FENDER ASSY.

FENDER ASSEMBLY Hi-Crown, right, Dimension X : 848 mm

1шт.

4

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

hex, 5/16 NC x 1/2 inch

8шт.

5

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

6

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

4шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

8

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

1шт.

9

492-11038

LOCK WASHER,3/8"

3шт.

10

3125820R1

SLEEVE

PVC, Lo-Crown fenders

3шт.

10

3125820R1

SLEEVE

PVC, Hi-Crown fenders

1шт.

11

531625R1

GROMMET

rubber

2шт.

12

223935A1

BOX

operators manual

1шт.

13

A162364

FASTENER

operators manual box, panel

3шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

15

99964C1

PLUG

blanking

6шт.

16

REF

INSTRUCTION

DECAL speed chart, MPH, See figure 9-114

1шт.
