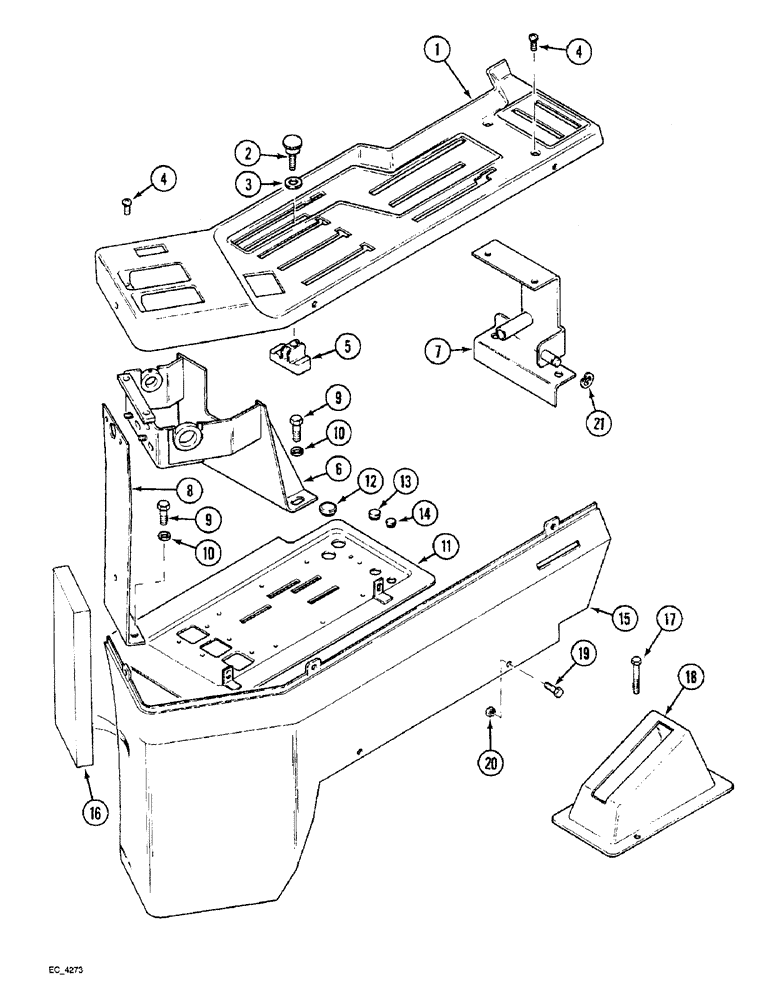

Запчасти Case IH 3230 (9-016) - CONTROL CONSOLE RIGHT, TRACTOR WITH CAB (09) - CHASSIS/ATTACHMENTS

1

114732A5

COVER

CONSOLE side panel control

1шт.

2

96860C1

KNOB

position stop

1шт.

3

1971243C1

WASHER

nylon, 7.13 x 19.1 x 3.2 mm

1шт.

4

540-704

SCREW,Cross Pan Hd, M6 x 16

- pan head, 6 x 16 mm

4шт.

5

1259806C1

BAR

stop-handle

1шт.

6

119234A1

SUPPORT ASSY.

BRACKET shift lever support

1шт.

7

116488A3

SUPPORT ASSY.

BRACKET lever pivot

1шт.

8

122846A1

SUPPORT

BRACE support

1шт.

9

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

4шт.

11

118471A2

COVER

PLATE adapter

4шт.

12

353-426

PLUG,1" Hole, Nylon

Flat face pry out 1" Hole, Nylon

1шт.

13

353-427

PLUG,9/16" Hole, Nylon

pry-out, 5/8 inch

1шт.

14

353-428

PLUG,3/4" Hole, Nylon

pry-out, 3/4 inch

1шт.

133315A3

COVER ASSY

COVER console, side, Includes Ref. 15 and 16

1шт.

15

114733A4

COVER

console, side

1шт.

16

133316A1

LINING

INSULATOR pad

1шт.

17

3225053R1

SCREW

BOLT hex, 6 mm x 16 mm

3шт.

18

116556A2

COVER

park brake

1шт.

19

1990952C1

CAPTIVE WASHER SCREW,Phillips Drive, Pan HD, M16 x 1 x 25.4mm

SCREW cross slotted truss, 10-16 x 1 inch

3шт.

20

96900C1

SPRING NUT,U, #10-16, Panel type

Speed U, #10-16, Panel type

2шт.

20

133754A1

SPRING NUT,U, #10-16, Panel type

1шт.

21

800-4310

CIRCLIP,M10

Ring, Retaining, External, M10

1шт.
