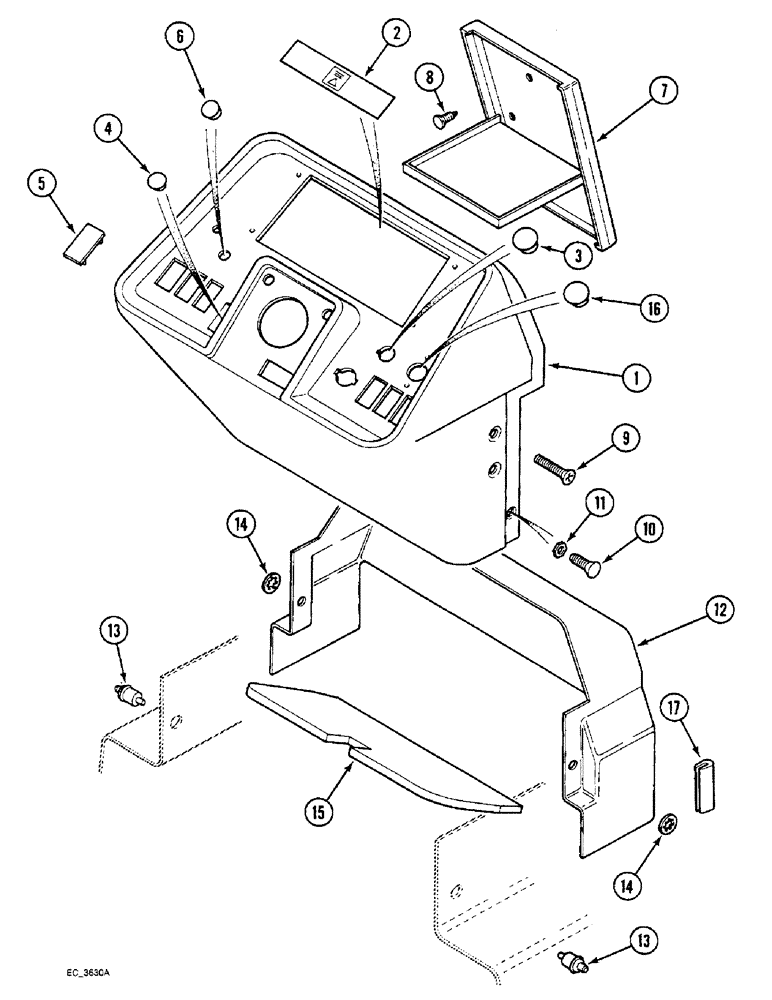

Запчасти Case IH 3230 (9-014) - INSTRUMENT HOUSING, TRACTOR WITH CAB (09) - CHASSIS/ATTACHMENTS

1

1536949C1

PANEL, INSTRUMENTS

HOUSING instrument rear, Includes Ref. 2

1шт.

2

321-6770

DECAL

warning, IPTO overspeed, English

1шт.

2

321-6781

DECAL

warning, IPTO overspeed, French

1шт.

3

353-411

PLUG,Dome, 1.000" hole, Nylon

Horn switch Dome, 1.000" hole, Nylon

1шт.

4

1500083C1

PLUG

blanking

1шт.

5

245918C1

LENS

PLUG blanking, rocker switches

1шт.

6

353-404

PLUG,Dome, .500" hole, Nylon

2 speed power shift switch Dome, .500" hole, Nylon

1шт.

7

97079C3

BOX

operators manual

1шт.

8

A162364

FASTENER

operators manual box

3шт.

9

543-710

SCREW,Phillips Drive, Flat HD, M8 x 20mm, Cl 4.8

cross recessed, 8 x 20 mm

4шт.

10

3399135R1

SCREW

camloc

2шт.

11

3399136R1

NUT

hex, 12 mm

2шт.

12

3234653R1

GUARD

HOUSING instrument panel

1шт.

13

3399133R1

LOCK PIN

PIN lock

2шт.

14

3399134R1

RING

retaining

2шт.

15

1536055C1

LINING

INSULATOR console

1шт.

16

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

17

176300A1

SEAL

STRIP edging, 100 mm

1шт.
