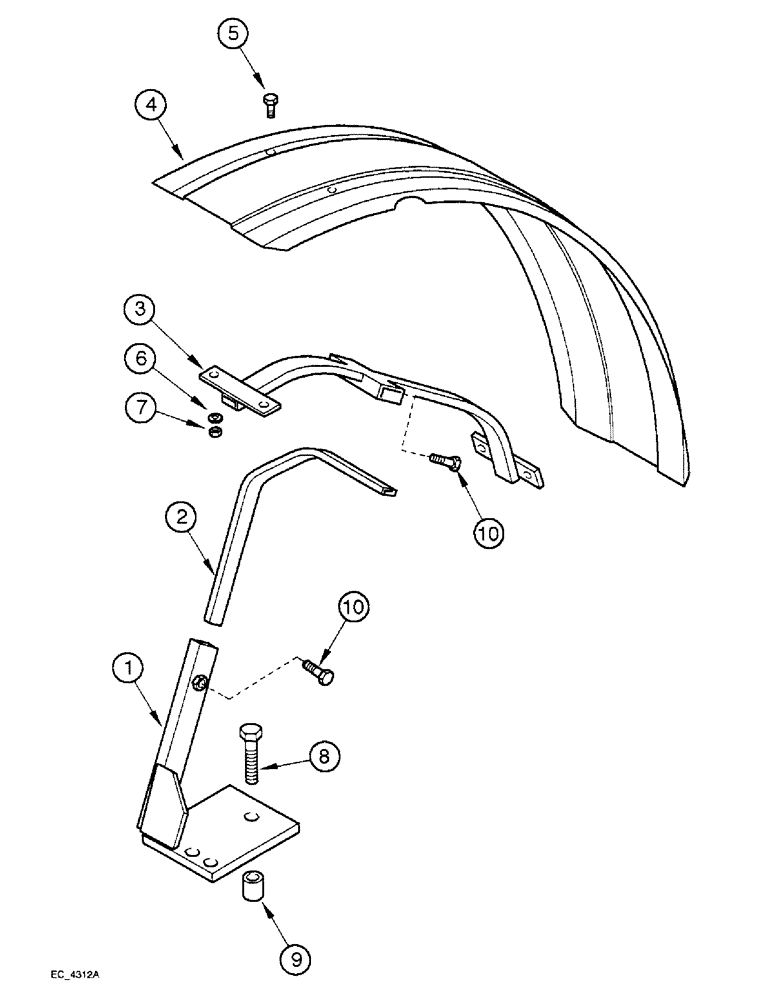

Запчасти Case IH 3230 (9-006) - FRONT SPLASH SHIELDS MFD (09) - CHASSIS/ATTACHMENTS

1

130837A3

SUPPORT

MOUNT front fender, left

1шт.

1

130838A3

SUPPORT

MOUNT front fender, right

1шт.

2

130839A1

SUPPORT

TUBE front fender, 320 mm

2шт.

2

136429A3

SUPPORT,290 mm Length

TUBE front fender, 380 mm

2шт.

3

130840A1

SUPPORT

front fender

2шт.

4

130841A2

SPLASH SHIELD

FENDER splash, left, 320/1200 mm

1шт.

4

130842A2

SPLASH SHIELD

FENDER splash, right, 320/1200 mm

1шт.

4

136421A2

FENDER ASSY.

FENDER splash, left, 380/1200 mm

1шт.

4

136422A2

FENDER ASSY.

FENDER splash, right, 380/1200 mm

1шт.

4

136425A2

FENDER ASSY.

FENDER splash, left, 440/1450 mm

1шт.

4

136426A2

FENDER ASSY.

FENDER splash, right, 440/1450 mm

1шт.

5

811-6025

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 25mm, Cl 8.8

BOLT, CARRIAGE, Short NK, M6 x 25, Cl8.8, Full Thd

8шт.

5

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

BOLT, CARRIAGE, Short NK, M6 x 16, Cl8.8, Full Thd

8шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

7

829-1406

NUT,Hex, M6 x 1, Cl 10.9

8шт.

8

814-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 8.8

6шт.

9

131342A1

SPACER

17 x 25 x 30 mm

6шт.

10

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

6шт.
