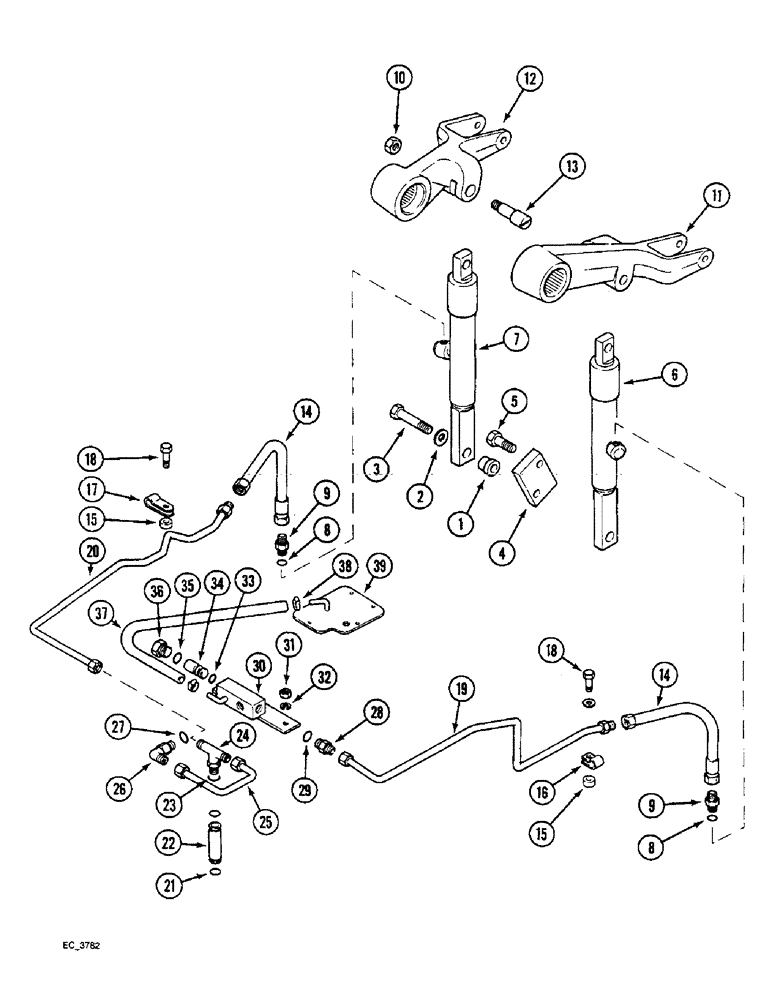

Запчасти Case IH 3230 (8-064) - ASSISTOR RAM AND PIPES TWIN, TRACTOR WITHOUT CAB (08) - HYDRAULICS

1

742964C1

SLEEVE

cylinder, pivot

2шт.

2

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

flat, 21/32 x 1-5/16 x 5/32 inch, hardened

2шт.

3

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

2шт.

4

3129039R1

PLATE

bracket, with swinging drawbar

2шт.

5

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

6

REF

INSTRUCTION

CYLINDER ASSEMBLY assistor, left, See figure 8-066

1шт.

7

REF

INSTRUCTION

CYLINDER ASSEMBLY assistor, right, See figure 8-066

1шт.

9

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER straight, 9/16-18 inch flare x o-ring boss

2шт.

10

425-1010

NUT,5/8"-11, G5

2шт.

11

114422A1

ROCKER ARM

ARM rockshaft, left

1шт.

12

114423A1

ROCKER ARM

ARM rockshaft, right

1шт.

13

3121748R1

BOLT,Step, 5/8" - 11 x 2.28"

Shoulder

2шт.

14

3121754R1

HOSE

, Serial Range: tube-cylinder

2шт.

15

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

pipe

1шт.

16

3111750R1

CLAMP

tube, left

1шт.

17

1971089C1

CLAMP

tube, right

1шт.

18

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

1шт.

19

1500584C2

HYD TUBE,9.53 mm OD, 475, 65 mm Length

TUBE ASSEMBLY valve to hose

1шт.

20

1970989C1

HYD TUBE,0.375" OD

TUBE ASSEMBLY valve to hose, right

1шт.

21

238-6110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

2шт.

22

3118053R2

PIPE,9.804 mm ID, 14.287 mm OD, 60.27 mm Length

TUBE ASSEMBLY

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

24

1970986C1

TEE

reducer

1шт.

25

3121752R2

TUBE ASSY.

TUBE ASSEMBLY valve feed

1шт.

26

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj o-ring boss

1шт.

28

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER straight, 9/16-18 inch flare x o-ring boss

1шт.

30

3121749R1

BLOCK ASSY.

BLOCK ASSEMBLY cushion valve

1шт.

31

425-106

NUT,3/8"-16, Cl 5

2шт.

32

492-11038

LOCK WASHER,3/8"

2шт.

33

238-6110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

1шт.

34

400095R92

VALVE, CUSHION

VALVE ASSEMBLY safety

1шт.

35

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

36

536855R1

PLUG

hex, 3/4 inch NF

1шт.

37

3121755R2

HYDRAULIC HOSE,7.60 mm ID, 8.50 mm ID x 375.00 mm, SAE 100R6 Class 14

HOSE cushion valve, dump

2шт.

38

3125239R1

COLLAR

CLAMP hose

2шт.

39

99973C1

COVER

linkage, access

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

27

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

29

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
