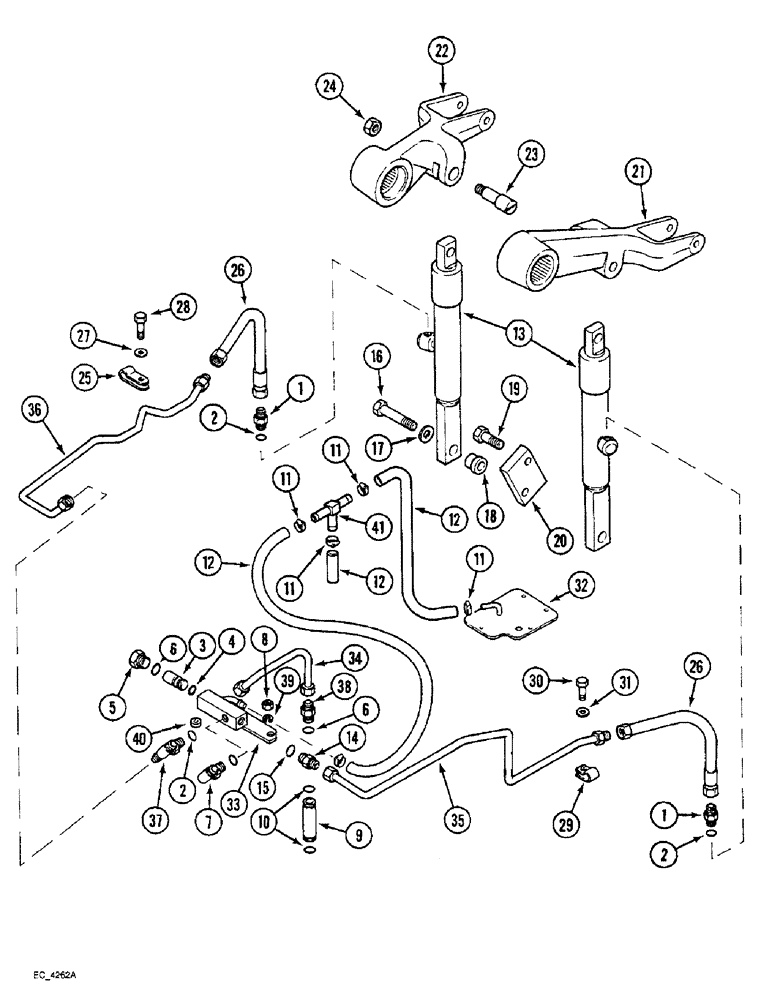

Запчасти Case IH 3230 (8-062) - ASSISTOR RAM AND PIPES, TRACTOR WITH CAB (08) - HYDRAULICS

1

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER straight, 9/16-18 inch flare x o-ring boss

2шт.

3

400095R92

VALVE, CUSHION

VALVE ASSEMBLY safety

1шт.

4

238-6110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

1шт.

5

536855R1

PLUG

hex, 3/4 inch NF

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

7

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj o-ring boss

1шт.

8

425-106

NUT,3/8"-16, Cl 5

2шт.

9

3118053R2

PIPE,9.804 mm ID, 14.287 mm OD, 60.27 mm Length

TUBE ASSEMBLY

1шт.

10

238-6110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

2шт.

11

3125239R1

COLLAR

CLAMP hose

4шт.

12

125149A1

HYDRAULIC HOSE

HOSE, Serial Range: tee-cover

3шт.

13

REF

INSTRUCTION

CYLINDER ASSEMBLY assistor, right, See figure 8-066

1шт.

13

REF

INSTRUCTION

CYLINDER ASSEMBLY assistor, left, See figure 8-066

1шт.

14

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER straight, 9/16-18 inch flare x o-ring boss

1шт.

16

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

2шт.

17

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

flat, 21/32 x 1-5/16 x 5/32 inch, hardened

2шт.

18

742964C1

SLEEVE

cylinder, pivot

2шт.

19

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

20

3129039R1

PLATE

bracket, with swinging drawbar

2шт.

21

114422A1

ROCKER ARM

ARM rockshaft, left

1шт.

22

114423A1

ROCKER ARM

ARM rockshaft, right

1шт.

23

3121748R1

BOLT,Step, 5/8" - 11 x 2.28"

Shoulder

2шт.

24

425-1010

NUT,5/8"-11, G5

2шт.

25

1971089C1

CLAMP

tube, right

1шт.

26

3121754R2

HOSE

, Serial Range: tube-cylinder

2шт.

27

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

pipe

1шт.

28

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

1шт.

29

384891R11

CLAMP

power steering tube

1шт.

30

424-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

machine, pan head Phillips, 1/4 x 3/4 inch

1шт.

31

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

32

99973C1

COVER

linkage, access

1шт.

33

125157A1

BLOCK ASSY.

BLOCK ASSEMBLY cushion valve

1шт.

34

125804A1

HYD TUBE

TUBE ASSEMBLY speed, valve

1шт.

35

1500429C1

TUBE ASSY.,9.525 mm OD, 475, 124 mm Length

TUBE ASSEMBLY valve to hose, left

1шт.

36

125805A1

HYD TUBE

TUBE ASSEMBLY twin assistor ram

1шт.

37

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16-18 inch adj o-ring branch x flare x flare

1шт.

38

1500430C1

UNION

reducer

1шт.

39

492-11038

LOCK WASHER,3/8"

2шт.

40

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

pipe

2шт.

41

123949A1

TEE

beaded, tube

1шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

3шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
