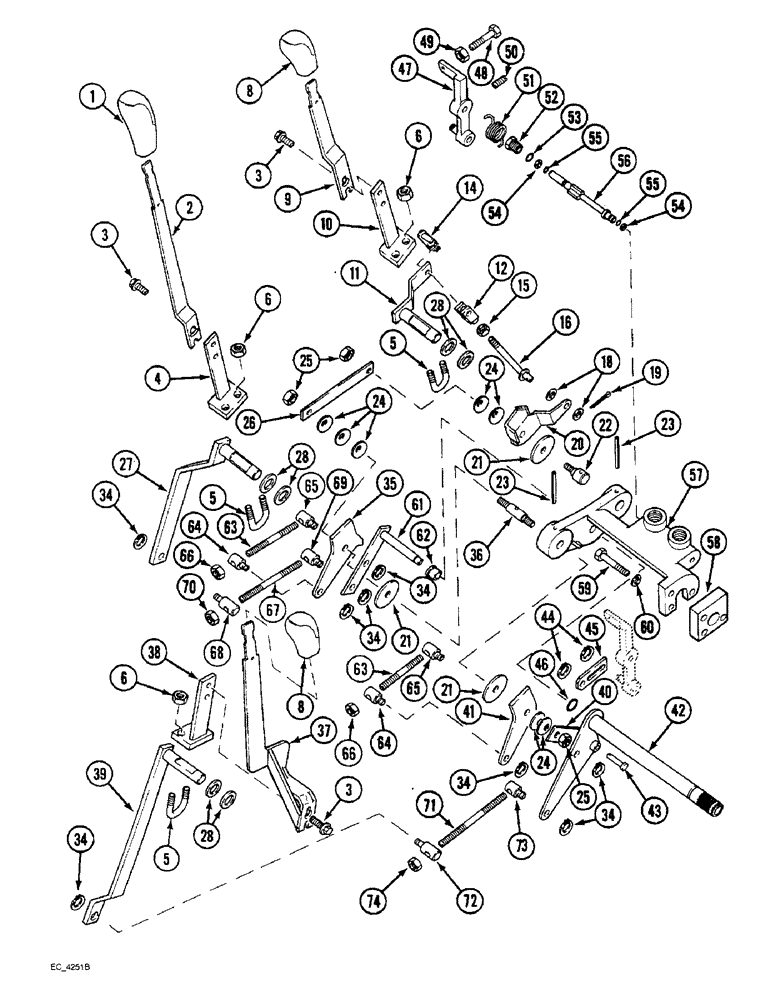

Запчасти Case IH 3230 (8-058) - DRAFT CONTROL, EXTERNAL LEVERS AND LINKAGE WITH CAB (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
117112A1
BUTTON
KNOB control
1шт.
2
128229A2
LEVER
draft control, upper
1шт.
3
905-6012
BOLT,Hex Flg, M6 x 12mm
hex, flange, 6 mm - 1.00 x 12 mm
6шт.
4
3129764R1
LEVER ASSY.
LEVER lower
1шт.
5
3129349R1
U-BOLT,M8 x 1.25 x 36.25mm
BOLT U-type, 8 mm
3шт.
6
832-41308
NUT,M8 x 1.25, Cl 10
hex, self-locking, 8 mm - 1.25, class 10.9
6шт.
8
117114A1
BUTTON
KNOB response control lever
2шт.
9
128225A1
LEVER
raise response
1шт.
10
3129764R1
LEVER ASSY.
LEVER lower
1шт.
11
129262A1
LEVER ASSY.
SHAFT ASSEMBLY raise response
1шт.
12
713-126
CLEVIS
6 mm x 24 mm
1шт.
13
3129997R1
CLIP
clevis
1шт.
14
3234936R1
CLEVIS PIN
CLIP clevis
1шт.
15
829-1406
NUT,Hex, M6 x 1, Cl 10.9
1шт.
16
3129769R3
STEM
LINK connecting, raise response
1шт.
18
895-11006
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
2шт.
19
733-1616
COTTER PIN,M1.6 x 16
PIN cotter, 1.6 x 16 mm
1шт.
20
3129765R1
LEVER
Bellcrank
1шт.
21
380421R2
FRICTION WASHER
WASHER friction
3шт.
22
527919R1
BOLT
BOLT - Flow lever pivot
1шт.
23
19716R1
PIN,4.75mm OD x 44.45mm L, Coiled
2шт.
24
536847R1
BELLEVILLE WASHER
WASHER Belleville
7шт.
25
231-1446
NUT,3/8" - 16, Gr 5
NUT, LOCK, , Hex, self-locking 3/8"-16, GB
3шт.
26
536849R1
PLATE
outer retaining
1шт.
27
113803A2
LEVER ASSY.
SHAFT ASSEMBLY pivot
1шт.
28
3129414R1
SPACER
pivot shaft
1шт.
34
100-1143
SNAP RING,#43, Ext
Ring, Snap, #43, Ext
8шт.
35
129259A1
LEVER
draft control
1шт.
36
400081R1
BOLT,3/8" - 16 x 72.90mm, HT
- Hitch control lever pivot
1шт.
37
175819A1
LEVER ASSY.
LEVER position control
1шт.
38
3129764R1
LEVER ASSY.
LEVER lower
1шт.
39
113802A2
LEVER ASSY.
SHAFT position control
1шт.
40
537600R1
PLATE
inner retaining
1шт.
41
3118010R1
LEVER
position control
1шт.
42
117302A1
LEVER ASSY.
SHAFT ASSEMBLY position control
1шт.
43
527923R1
PIN
link arm
1шт.
44
100-3331
SNAP RING,#X31, .243" Dia, E-Type
Ring, Retaining, #X31, .243" Dia, E-Type
2шт.
45
527926R1
LINK
flow control over-ride
1шт.
46
238-5112
O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro
1шт.
47
529353R2
ARM ASSY.
ARM ASSEMBLY flow control
1шт.
48
1502037C1
SET SCREW
SCREW set, 1/4 NC x 1-1/2 inch
1шт.
49
425-144
JAM NUT,Jam, 1/4"-20, G5
- hex, jam, 1/4 inch NC
1шт.
50
65461C1
SET SCREW
SCREW 1/4 inch NF
1шт.
51
529352R1
SPRING
return
1шт.
52
529356R1
PLUG
variable flow control valve
1шт.
54
529355R1
WASHER
back-up
2шт.
55
238-5008
O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro
-008, 70 Duro, .176" ID x .070" Thk
2шт.
56
529351R1
SPOOL
variable flow control valve
1шт.
57
529349R3
SUPPORT
ASSEMBLY hitch control shaft
1шт.
58
3129761R1
SPACER
support assembly
1шт.
59
413-640
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
hex, 3/8 NC x 2-1/2 inch
3шт.
60
92-11038
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
61
129260A1
LEVER ASSY.
SHAFT ASSEMBLY load control
1шт.
62
374940R1
NYLON BEARING
BEARING control lever shaft
2шт.
63
129303A1
ROD,THREADED
STUD connecting rod, hitch link
1шт.
64
400086R1
PIN
connecting, hitch link front
1шт.
65
400087R1
PIN
connecting, hitch link rear
1шт.
66
425-146
JAM NUT,3/8" - 16, Gr 5
hex, jam, 3/8 inch NC
1шт.
67
129303A1
ROD,THREADED
STUD connecting rod, hitch link
1шт.
68
1500634C1
PIN
connecting, hitch link front
1шт.
69
400087R1
PIN
connecting, hitch link rear
1шт.
70
425-146
JAM NUT,3/8" - 16, Gr 5
hex, jam, 3/8 inch NC
1шт.
71
1500635C1
STUD
hitch link
1шт.
72
1500634C1
PIN
connecting, hitch link front
1шт.
73
400087R1
PIN
connecting, hitch link rear
1шт.
74
425-146
JAM NUT,3/8" - 16, Gr 5
hex, jam, 3/8 inch NC
1шт.
53
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
Выбрано товаров: 67
