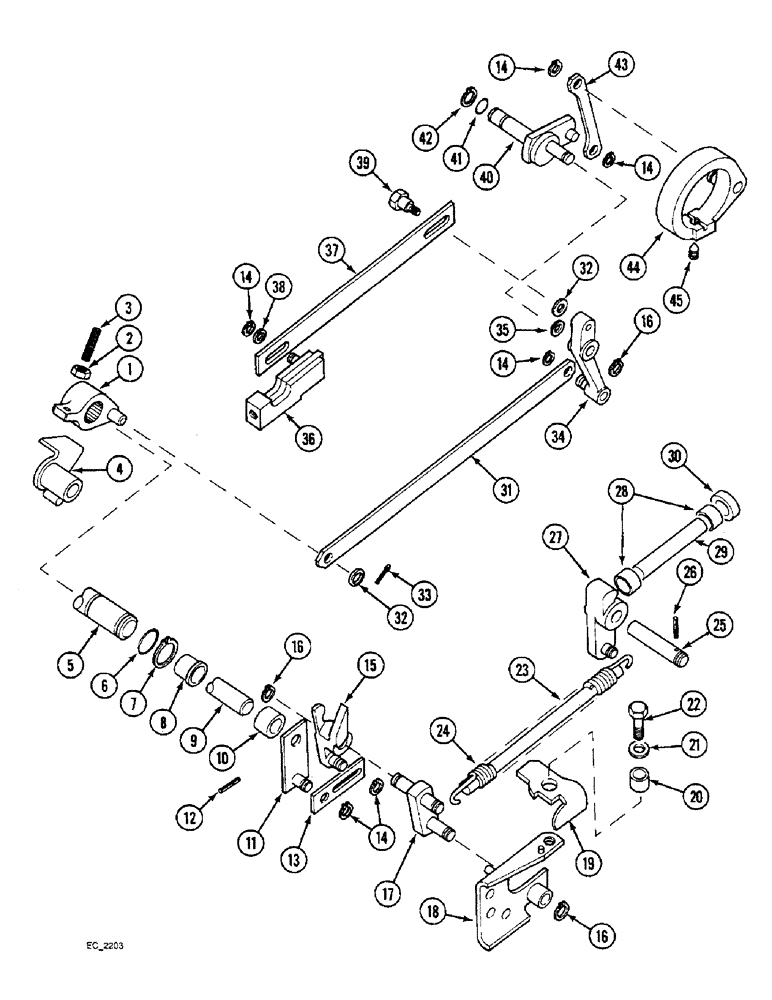

Запчасти Case IH 3230 (8-054) - DRAFT CONTROL, INTERNAL CONTROL LINKAGE (08) - HYDRAULICS

1

400017R1

LEVER ASSY.

LEVER ASSEMBLY slow motion actuating

1шт.

2

425-144

JAM NUT,Jam, 1/4"-20, G5

- hex, jam, 1/4 inch NC

1шт.

3

1502037C1

SET SCREW

SCREW set, 1/4 NC x 1-1/2 inch

1шт.

4

399889R1

ARM ASSY.

ARM draft retarding

1шт.

5

94167C1

SHAFT

ASSEMBLY position control, without cab

1шт.

5

117302A1

LEVER ASSY.

SHAFT ASSEMBLY position control, with cab

1шт.

6

238-5018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro

-018, 70 Duro, .739" ID x .070" Thk

1шт.

7

100-1178

SNAP RING,#78, Ext

Ring, Snap, #78, Ext

1шт.

8

374940R1

NYLON BEARING

BEARING control lever shaft

1шт.

9

94168C1

SHAFT

ASSEMBLY loan control, without cab

1шт.

9

129260A1

LEVER ASSY.

SHAFT ASSEMBLY load control, with cab

1шт.

10

527927R1

SPACER

load control shaft

1шт.

11

534728R1

LEVER

ASSEMBLY draft sensitivity control

1шт.

12

38-31012

PIN,3.96mm OD x 19.05mm L, Coiled

1шт.

13

400044R1

LINK

trigger

1шт.

14

100-3331

SNAP RING,#X31, .243" Dia, E-Type

Ring, Retaining, #X31, .243" Dia, E-Type

3шт.

15

400042R2

LEVER ASSY.

LEVER ASSEMBLY draft control trigger

1шт.

16

100-3337

SNAP RING,E-Type, 0.3" OD

Ring, Retaining, #37, .300" Dia, E-Type

3шт.

17

400039R1

PLATE ASSY.

PLATE ASSEMBLY eccentric

1шт.

18

400026R2

SUPPORT

BRACKET ASSEMBLY switch lever

1шт.

19

400033R1

LEVER

hydraulic switch

1шт.

20

532468R1

SPACER

safety switch

1шт.

21

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

flat, 11/32 x 11/16 x 3/32 inch, hardened

1шт.

22

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

hex, 5/16 NC x 5/8 inch

1шт.

23

400024R2

BAR

sensing beam

1шт.

24

400025R1

SPRING

sensing beam

1шт.

25

400038R1

PIN

sensing lever

1шт.

26

38-31222

PIN,3/16" x 1 3/8", Coiled

1шт.

27

400021R1

LINK ASSY.

LINK draft control

1шт.

28

273279R91

BUSHING

BEARING sensing shaft

2шт.

29

400020R1

ROD

draft control

1шт.

30

376022R91

OIL SEAL

SEAL oil

1шт.

31

400016R1

BAR

walking beam

1шт.

32

95-11034

WASHER,1/4"

flat, 11/32 x 11/16 x 1/16 inch

2шт.

33

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

34

400014R1

LEVER ASSY.

LEVER ASSEMBLY follow up walking beam

1шт.

35

95-11041

WASHER,3/8"

flat (13/32 x 13/16 x 1/16") 3/8"

1шт.

36

527617R1

ARM ASSY.

ARM ASSEMBLY main valve, See figure 8-046

1шт.

37

400019R1

LINK

walking beam

1шт.

38

95-81068

WASHER,0.34" ID x 0.66" OD x 0.02" Thk

flat, 11/32 x 21/32 x 1/64 inch

1шт.

39

376041R1

SCREW,Shldr, Hex, 1/4" - 20 x 0.70", W/ Nylon Pellet

Shoulder

1шт.

40

400036R1

ECCENTRIC ASSY.

ECCENTRIC ASSEMBLY position control

1шт.

41

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

42

100-1150

SNAP RING,#50, Ext

Ring, Snap, #50, Ext

1шт.

43

400008R1

LINK

walking

1шт.

44

533340R1

HUB ASSY.

HUB rockshaft actuating

1шт.

45

377792R1

SET SCREW

SCREW set

1шт.
