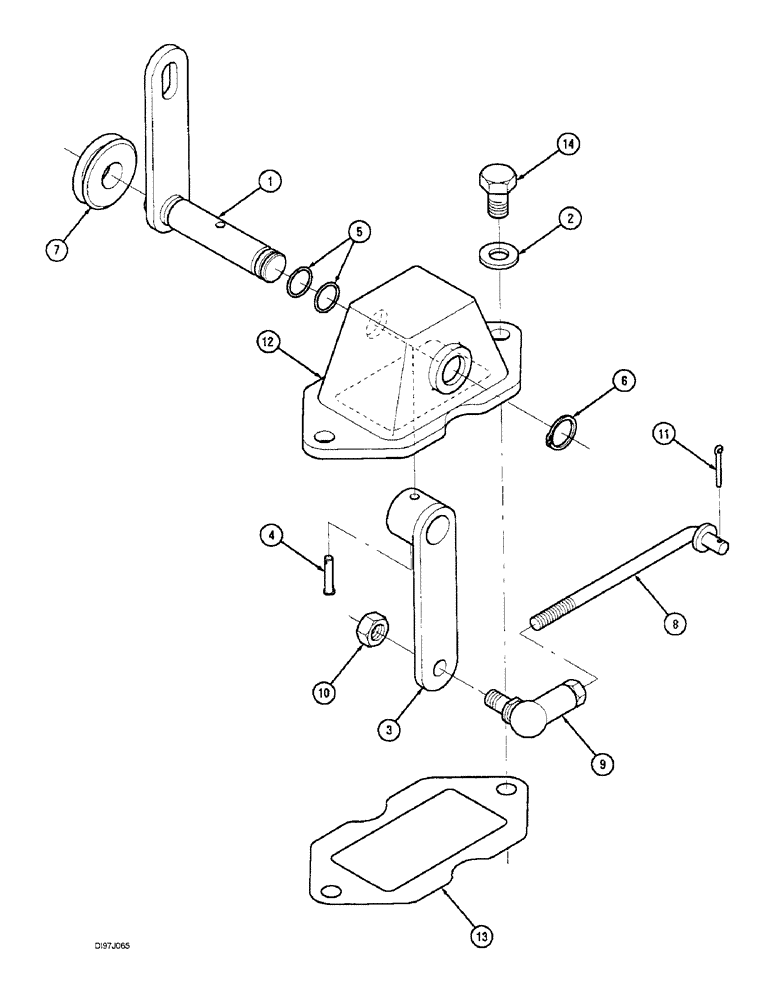

Запчасти Case IH 3230 (8-050) - DROP RESPONSE CONTROL, TRACTORS WITH CAB, JJE0927763 - (08) - HYDRAULICS

1

197664A1

LEVER ASSY.

LEVER ASSEMBLY control

1шт.

2

895-10006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

flat, 6.6 x 12.5 x 1.6 mm

1шт.

3

197666A1

LEVER ASSY.

LEVER ASSEMBLY control, upper

1шт.

4

38-2812

PIN,1/8" x 3/4", Coiled

spring, 1/8 x 47/64 inch

1шт.

5

238-8011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 8, 90 Duro

-011, Cl 8, .301" ID x .070" Thk

1шт.

6

800-1112

SNAP RING,M12, Ext

RING, external retaining 12 mm

1шт.

7

248-2177

GROMMET,11/16" ID x 1" Groove Dia

cable

2шт.

8

197904A2

STEM

ROD ASSEMBLY drop response

1шт.

9

197906A1

BALL JOINT

JOINT ball, drop response rod

1шт.

10

824-1405

NUT,M5, Cl 5

2шт.

11

733-2012

COTTER PIN,M2 x 12

PIN, SPLIT (COTTER), M2 x 12

2шт.

12

197669A1

COVER

drop response control

1шт.

13

117315A1

GASKET

cover

2шт.

14

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.
